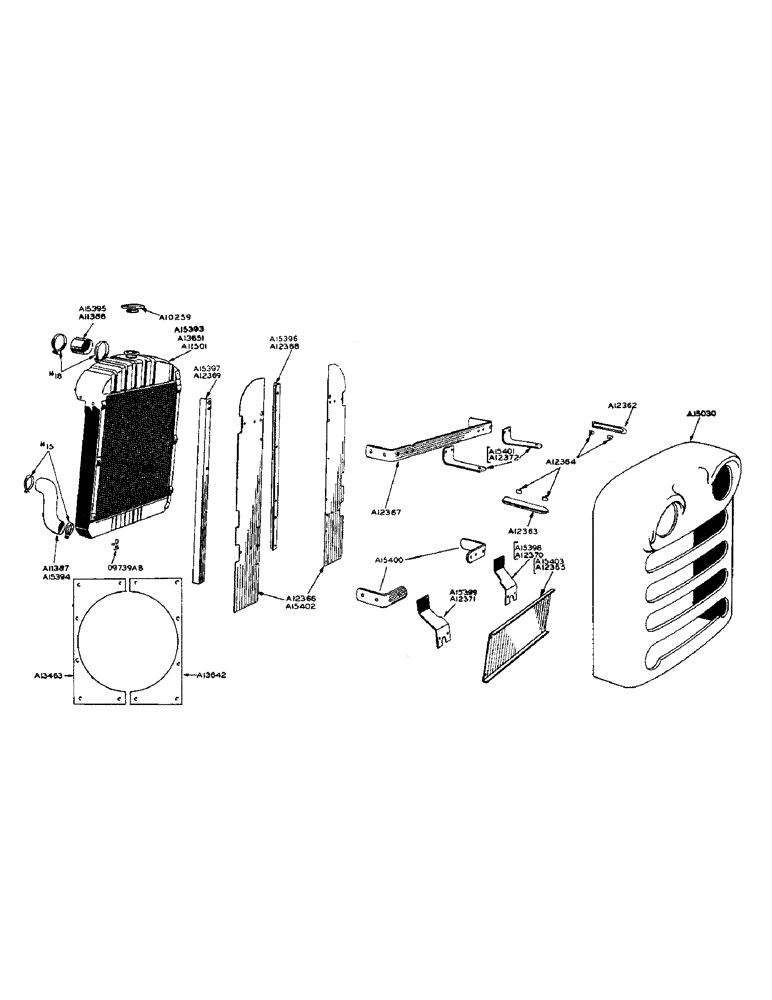

Запчасти Case W9 (068) - 19-1/2" WIDTH RADIATOR AND GRILLE, 22" WIDTH RADIATOR AND (02) - ENGINE

A10259

CAP

- radiator filler

1шт.

A11386

X

HOSE - radiator, inlet (Upper) (2-7/8" O.D.)

1шт.

#18 hose clamp (2-7/8" I.D.)

2шт.

A11387

X

HOSE - radiator to water pump (2-3/8" O.D.) (Lower)

1шт.

#15 hose clamp (2-3/8" I.D.)

2шт.

A11501

RADIATOR W/BUILT IN OIL COOLER (Can use A13651)

1шт.

A12362

MOULDING - radiator grille, R.H.

1шт.

A12363

MOULDING - radiator grille, L.H.

1шт.

A12364

CLIP - radiator grille moulding, 2 used on A12362 and A12363

4шт.

3/16" x 1" carr. bolt N.C. w/nuts and lockwasher

4шт.

A12365

BAFFLE - radiator lower

1шт.

1/4" x 5/8" fin. hex. bolt N.F. w/nut and lockwasher

4шт.

A12366

BAFFLE - radiator side

2шт.

1/4" x 3/4" fin. hex. bolt w/nut and lockwasher

4шт.

A12367

SUPPORT - radiator cross brace

2шт.

3/8" x 1-1/2" fin. hex. bolt N.F. w/nut and lockwasher

8шт.

A12368

SUPPORT - angle, R.H.

1шт.

5/16" x 5/8" fin. hex. bolt N.F. w/lockwasher

1шт.

A12369

SUPPORT - angle, L.H.

1шт.

5/16" x 5/8" fin. hex. bolt N.F. w/lockwasher

1шт.

A12370

BRACKET - tail lamp, R.H.

1шт.

5/16" x 1-1/8" fin. hex. bolt N.F. w/nut and lockwasher

1шт.

5/16" x 1/4" fin. hex. bolt N.F. w/lockwasher

1шт.

A12371

BRACKET - tail lamp, L.H.

1шт.

5/16" x 1-1/8" fin. hex. bolt N.F. w/nut and lockwasher

1шт.

5/16" x 1-1/4" fin. hex. bolt N.F. w/lockwasher

1шт.

A12372

BRACKET - headlamp, rear

2шт.

5/16" x 1-1/8" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

5/16" x 1-1/4" fin. hex. bolt N.F. w/lockwasher

2шт.

A12374

GRILLE - radiator (Can use A15030)

1шт.

1/2" x 1-1/4" fin. hex. bolt N.F. w/lockwasher

2шт.

1/2" x 2" fin. hex. bolt N.F. w/nut and lockwasher

4шт.

A13462

SHROUD - R.H. (Prior to serial no. 8143288)

1шт.

#10-1/4 rhd. self-tapping screw

6шт.

A13463

SHROUD - L.H. (Prior to serial no. 8143288)

1шт.

#10-1/4 rhd. self-tapping screw

6шт.

A13651

RADIATOR - w/built in oil cooler

1шт.

A15030

GRILLE - radiator (Can use A12374)

1шт.

O9739AB

X

VALVE - radiator drain

1шт.

A10259

CAP

- radiator pressure, 22" width radiator and grille

1шт.

A12362

MOULDING - R.H. grille, 22" width radiator and grille

1шт.

A12363

MOULDING - L.H. grille, 22" width radiator and grille

1шт.

A12364

CLIP - grille moulding, 22" width radiator and grille

4шт.

A15030

GRILLE - radiator, 22" width radiator and grille

1шт.

1/2" x 1-1/4" hex. bolt N.F. w/nut and lockwasher, 22" width radiator and grille

2шт.

1/2" x 2" hex. bolt N.F. w/nut and lockwasher, 22" width radiator and grille

4шт.

A15393

RADIATOR W/OIL COOLER (22" width), radiator and grille

1шт.

1/2" pipe street elbow, 22" width radiator and grille

2шт.

A15394

HOSE - radiator to pump (Lower), 22" width radiator and grille

1шт.

#15 hose clamp 2-3/8" I.D., 22" width radiator and grille

2шт.

A15395

RADIATOR HOSE,2.50" ID x 5.25" , SAE 20R2

Upper, Inlet, 22.00" Width Radiator and Grille

1шт.

#18 hose clamp 2-7/8" I.D., 22" width radiator and grille

2шт.

A15396

SUPPORT - side angle R.H., 22" width radiator and grille

1шт.

5/16" x 1-1/8" hex. bolt N.F. w/lockwasher, 22'' width radiator and grille

2шт.

1/4" x 3/4" hex. bolt N.F. w/nut and lockwasher, 22'' width radiator and grille

1шт.

A15397

SUPPORT - side angle L.H., 22'' width radiator and grille

1шт.

5/16" x 1-1/8" hex. bolt N.F. w/lockwasher, 22'' width radiator and grille

1шт.

1/4" x 3/4" hex. bolt N.F. w/nut and lockwasher, 22'' width radiator and grille

1шт.

A15398

BRACKET - tail lamp R.H., 22'' width radiator and grille

1шт.

5/16" x 3/4" hex. bolt N.F. w/lockwasher, 22'' width radiator and grille

2шт.

A15399

BRACKET - tail lamp L.H., 22'' width radiator and grille

1шт.

5/16" x 3/4" hex. bolt N.F. w/lockwasher, 22'' width radiator and grille

2шт.

A15400

BRACKET - radiator angle support, 22'' width radiator and grille

4шт.

1/4" x 3/4" hex. bolt N.F. w/nut and lockwasher, 22'' width radiator and grille

4шт.

3/8" x 1-1/2" hex. bolt N.F. w/nut and lockwasher, 22'' width radiator and grille

8шт.

A15401

BRACKET - rear head lamp, 22'' width radiator and grille

2шт.

A15402

BAFFLE - radiator side, 22'' width radiator and grille

1шт.

A15403

BAFFLE - radiator (Lower), 22'' width radiator and grille

1шт.

O9739AB

X

VALVE - radiator drain, 22'' width radiator and grille

1шт.
