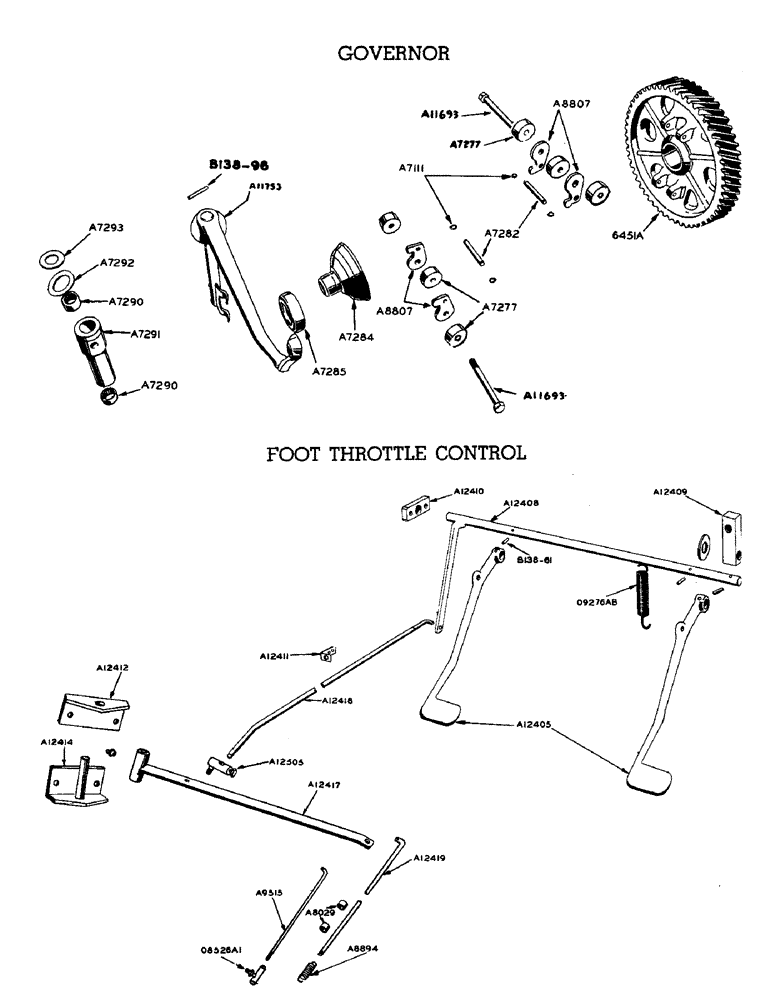

Запчасти Case W9 (044) - GASOLINE ENGINE, GOVERNOR, FOOT THROTTLE CONTROL (02) - ENGINE

A7111

SNAP RING,#25, Ext

Ring, Snap, , governor weight pin #25, Ext

4шт.

A7277

WEIGHT

- governor

6шт.

A7282

PIN,6.31mm OD x 47.63mm L

- governor weight, less snap rings

2шт.

A7284

SLEEVE - governor

1шт.

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, governor (Aetna #10 or Nice #7043)

1шт.

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle, governor lever shaft (Torrington no. B-98)

2шт.

A7291

SLEEVE - governor lever shaft bearing

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A7292

SEAL

- governor lever hub

1шт.

A7293

WASHER

- governor lever bearing

1шт.

A8349

ARBOR - for pressing in A7290 governor lever shaft needle bearing

1шт.

A8807

FINGERS - set of (4) for governor weight

1шт.

A11693

BOLT - governor weight

2шт.

5/16" N.F. hex. castellated nut

2шт.

1/16" x 1/2" cotter pin

2шт.

A11753

SHAFT - governor, with lever and finger

1шт.

3/32" x 3/4" cotter pin

1шт.

6451A

X

GEAR - camshaft

1шт.

No. 18 Woodruff key

1шт.

B138-96

ROLL PIN (3/16" x 1") - for A11753 shaft

1шт.

A8029

COLLAR - throttle control rod stop, foot throttle control

2шт.

1/4" x 3/8" sq. hd. cup pt. set screw N.C., foot throttle control

2шт.

A8894

SPRING - governor (1800 RPM), foot throttle control

1шт.

A9515

ROD - governor lever to carburetor, foot throttle control

1шт.

A12405

PEDAL - foot throttle control

2шт.

3/16" x 1" groove pin type 5, foot throttle control

2шт.

A12408

SHAFT - foot throttle cross w/lever, foot throttle control

1шт.

1/2" SAE std. plain washer, foot throttle control

1шт.

3/16" x 1" groove pin type 5, foot throttle control

1шт.

A12409

SUPPORT - cross shaft, foot throttle control

1шт.

1/2" x 2" fin. hex. bolt N.F. w/nut and lockwasher, foot throttle control

1шт.

A12410

BEARING - cross shaft end, foot throttle control

1шт.

5/16" x 1-3/4" fin. hex. bolt w/nut and lockwasher, foot throttle control

2шт.

A12411

GUIDE - throttle rod, foot throttle control

1шт.

5/16" x 1" fin. hex. bolt w/nut and lockwasher, foot throttle control

2шт.

A12412

BRACKET - control lever pivot upper, foot throttle control

1шт.

5/16" x 1-1/4" fin. hex. bolt N.F. w/nut and lockwasher, foot throttle control

2шт.

A12414

BRACKET & PIN - control lever, foot throttle control

1шт.

A12417

LEVER - throttle control, foot

1шт.

1/4" Lincoln drive fitting #5044, foot throttle control

1шт.

5/16" #1218-00 int. Shakeproof lockwasher, foot throttle control

1шт.

A12418

ROD - throttle control front, foot

1шт.

3/32" x 5/8" cotter pin, foot throttle control

1шт.

5/16" SAE plain washer, foot throttle control

1шт.

A12419

ROD - throttle control rear, foot

1шт.

3/32" x 5/8" cotter pin, foot throttle control

1шт.

5/16" SAE plain washer, foot throttle control

1шт.

A12505

BALL JOINT

- throttle control, foot

1шт.

5/16" fin. hex. nut N.F. w/lockwasher, foot throttle control

1шт.

B138-61

ROLL PIN - 1/8" x 1", for foot throttle cross shaft, foot throttle control

3шт.

O8526AB1

X

JOINT - ball, governor lever to carburetor rod, foot throttle control

1шт.

O9276AB

X

SPRING - foot throttle pedal return, foot throttle control

1шт.
