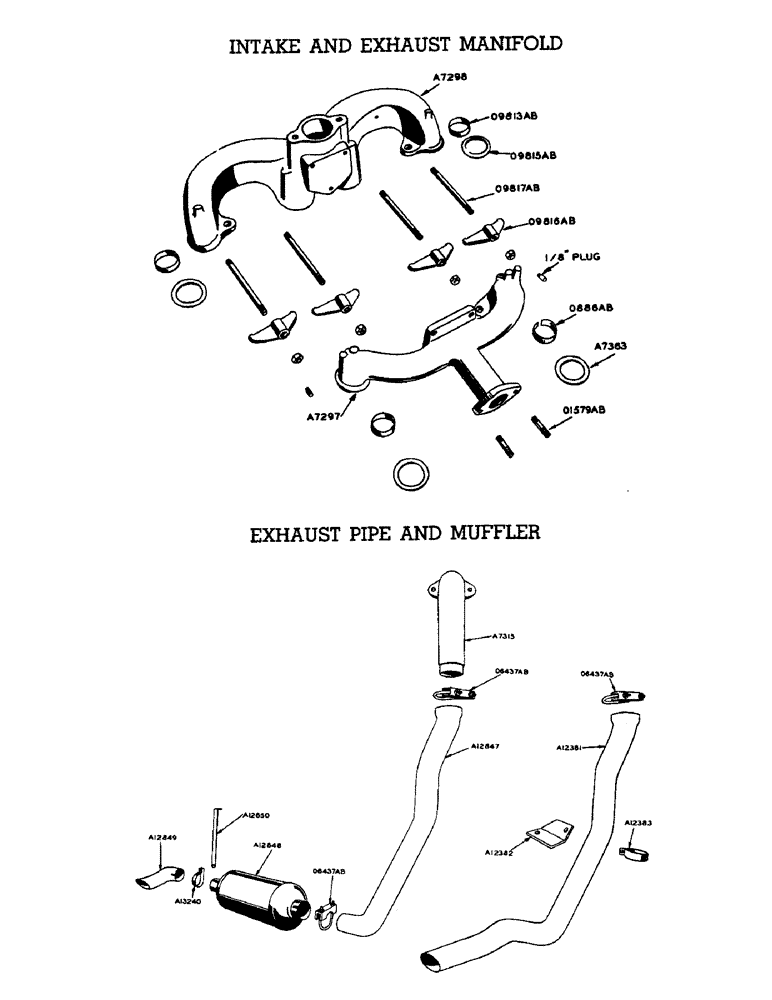

Запчасти Case W9 (040) - GASOLINE ENGINE, INTAKE AND EXHAUST MANIFOLD, EXHAUST PIPE (02) - ENGINE

A7297

MANIFOLD - intake, gasoline

1шт.

3/8" x 1" N.C. hex. hd. cap screw

3шт.

1/8" sq. hd. pipe plug

2шт.

A7298

MANIFOLD - exhaust

1шт.

A7363

MANIFOLD GASKET

- intake manifold

2шт.

O886AB

X

FERRULE - intake manifold

2шт.

O889AB1

X

GASKET - intake, Serial Range: manifold-carburetor

1шт.

O1579AB

STUD - carburetor

2шт.

3/8" N.F. hex. nut and lockwasher

2шт.

O9813AB

X

FERRULE - exhaust manifold

4шт.

O9815AB

X

GASKET - exhaust manifold

4шт.

O9816AB

CLAMP - intake and exhaust manifold

4шт.

O9817AB

X

STUD - intake and exhaust manifold

4шт.

7/16" N.F. hex. nut, light

4шт.

A12381

PIPE - exhaust (Used w/out muffler)

1шт.

A12382

SUPPORT - exhaust pipe clamp (Used w/out muffler), exhaust pipe

1шт.

3/8" x 7/8" fin. hex. bolt N.F. w/nut and lockwasher, exhaust pipe

1шт.

A12383

CLAMP

- exhaust pipe (Used w/out muffler), exhaust pipe

1шт.

3/8" x 1-1/4" fin. hex. bolt N.F. w/nut and lockwasher, exhaust pipe

1шт.

O6437AB

X

CLAMP - exhaust, Serial Range: pipe-elbow

1шт.

5/16" fin. hex. nut N.C. w/lockwasher, exhaust pipe

2шт.

A7315

ELBOW - exhaust pipe and muffler

1шт.

1/2" x 1-1/4" fin. hex. bolt N.C., exhaust pipe and muffler

2шт.

A12847

PIPE - exhaust, and muffler

1шт.

A12848

MUFFLER, exhaust pipe and muffler

1шт.

A12849

ELBOW - muffler, exhaust pipe and muffler

1шт.

A12850

SUPPORT - muffler, exhaust pipe and muffler

1шт.

3/8" x 1" hex. bolt N.F. w/nut and lockwasher, exhaust pipe and muffler

1шт.

A13240

CLAMP,2-5/8" ID

- elbow to muffler, exhaust pipe and muffler

1шт.

O6437AB

X

CLAMP - exhaust pipe and muffler

2шт.

5/16" fin. hex. nut N.C. w/lockwasher, exhaust pipe and muffler

4шт.
