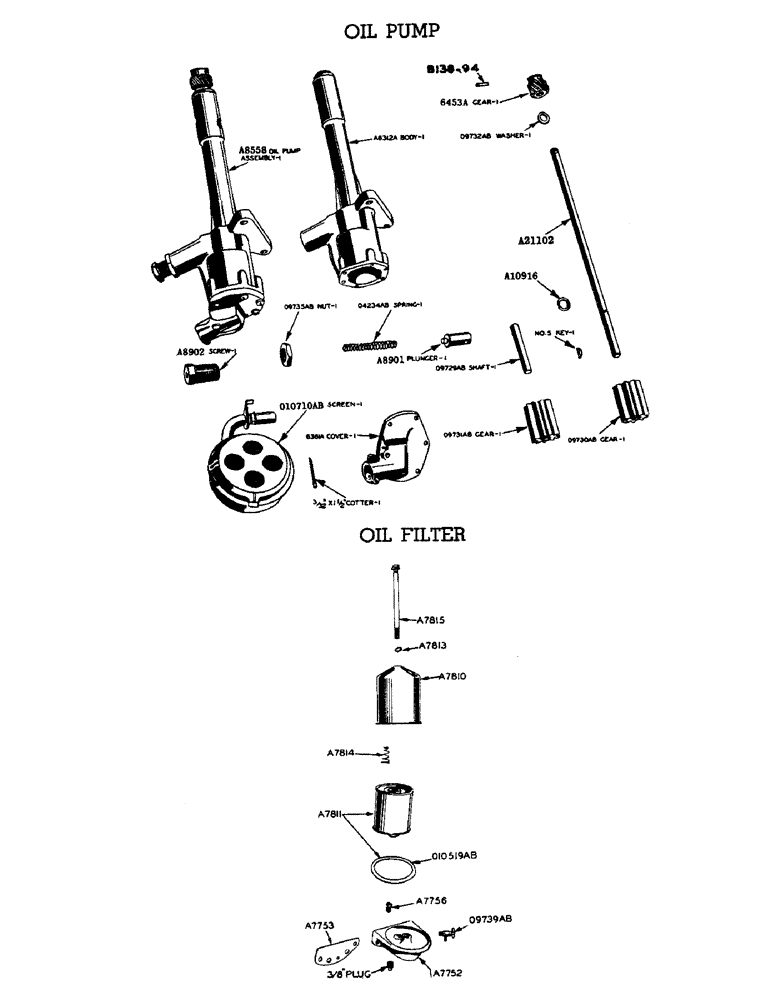

Запчасти Case W9 (038) - GASOLINE ENGINE, OIL PUMP, OIL FILTER (02) - ENGINE

A8558

PUMP, ENGINE OIL

PUMP - oil, assembly, less screen

1шт.

A8901

X

PLUNGER - oil pump relief

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

A10916

RING, SNAP

SNAP RING - oil pump drive shaft

1шт.

A21102

SHAFT

- drive, oil pump

1шт.

B138-94

ROLL PIN - oil pump drive gear (3/16" x 7/8")

1шт.

A6312A

BODY - oil pump

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

6361A

COVER - oil pump body

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/lockwasher

5шт.

1/4" x 1-1/2" N.C. rhd. mach. screw w/lockwasher

1шт.

6453A

X

GEAR - oil pump drive

1шт.

O4234AB

X

SPRING - oil pump relief plunger

1шт.

O9729AB

SHAFT - stub, oil pump

1шт.

O9730AB

X

GEAR - oil pump with keyway

1шт.

No. 5 Woodruff key

1шт.

O9731AB

X

GEAR - oil pump, without keyway

1шт.

O9732AB

X

WASHER - thrust, oil pump drive gear

1шт.

O9735AB

NUT - oil pump relief adjusting screw

1шт.

O10710AB

SCREEN - oil pump, float-o-type

1шт.

3/32" x 1-1/2" cotter pin

1шт.

A7752

BASE - oil filter

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher, oil filter

2шт.

3/8" sq. hd. pipe plug, oil filter

1шт.

A7753

GASKET

- oil filter base

1шт.

A7756

VALVE

- check, oil filter

1шт.

A7810

SHELL

oil filter

1шт.

A7811

ENGINE OIL FILTER

ELEMENT - with O10519AB gasket, oil filter

1шт.

A7813

GASKET

- oil filter shell

1шт.

A7814

SPRING

- oil filter

1шт.

A7815

PIPE, oil filter

1шт.

O9739AB

X

VALVE - water drain (1/4" pipe thrd.), oil filter

1шт.

O10519AB

GASKET - oil filter

1шт.
