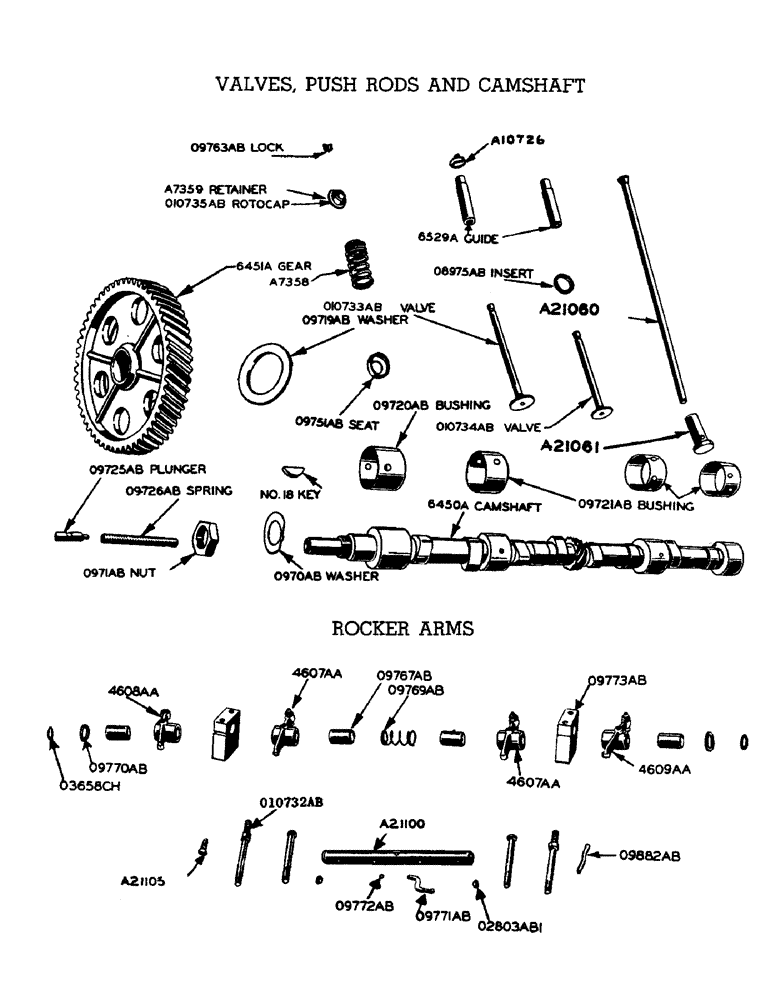

Запчасти Case W9 (036) - GASOLINE ENGINE, VALVES, PUSH RODS AND CAMSHAFT, SET OF VALVE GRIND GASKETS (02) - ENGINE

A20152

GASKET

KIT - valve grind, includes the following:

1шт.

A7363

MANIFOLD GASKET

- intake manifold

2шт.

A7669

RING

- rubber, for cyl. hd. gasket

4шт.

A9235

CYLINDER HEAD GASKET

- cylinder head

2шт.

O889AB1

X

GASKET -, Serial Range: carb.-manifold

1шт.

O1116AB1

X

GASKET - carb. to air cleaner elbow

1шт.

O8569AB

X

"O" RING - cyl. hd. oil passage

2шт.

9772AB

"O" RING - rocker arm shaft

2шт.

O9804AB1

X

GASKET - water manifold

4шт.

O9815AB

X

GASKET - exhaust manif.

4шт.

O9959AB

X

GASKET - cyl. hd. cover

2шт.

O10715AB

X

GASKET - thermostat hsg.

1шт.

O10717AB

X

GASKET - thermostat

1шт.

A7205

LIFTER - push rod (.010" oversize) (See O10593AB) For taper end push rod, valves, push rods and camshaft

8шт.

A7358

SPRING

- inlet and exhaust valve (See A21692), valves, push rods and camshaft

8шт.

A7359

RETAINER - inlet valve spring (See A21657), valves, push rods and camshaft

4шт.

A8491

VALVE - exhaust (Stellite face) High altitude (See O10734AB and A21711), valves, push rods and camshaft

4шт.

A8492

INSERT - exhaust valve seat (High altitude) (See O8975AB and A21680), valves, push rods and camshaft

4шт.

A10726

SEAL

SHIELD - oil, rubber, intake valve stem, valves push rods and camshaft

4шт.

A21060

ROD

- push (Round end) Use with A21105 and A21061 (See 4602AA), valves, push rods and camshaft

8шт.

A21061

LIFTER - push rod, use w/A21060 and A21105 (See O10593AB & A21654), valves push rods and camshaft

8шт.

A21651

HYDRAULIC LIFT

Set of 4-O10593 lifters, valves, push rods and camhaft

1шт.

A21654

KIT

Set of 4-A21061 lifters, valves, push rods and camshaft

1шт.

A21656

RETAINER

Set of 4-O9763AB valve locks, valves, push rods and camshaft

4шт.

A21657

LOCK

Set of 2 retainers and 4 locks (inlet valve), valves, push rods and camshaft

2шт.

A21659

SPARE PART

Set of 4 camshaft bushings, valves, push rods and camshaft

1шт.

A21673

GUIDE

Set of 2 valve guides, valves, push rods and camshaft

8шт.

A21679

KIT

Set of 2-O8975AB seat inserts, valves, push rods and camshaft

2шт.

A21680

KIT

Set of 2-A8492 seat inserts, valves, push rods and camshaft

2шт.

A21687

CAP

Set of 4 rotor caps (Exhaust valve), valves, push rods and camshaft

1шт.

A21692

SPRING

Set of 4 valve springs, valves, push rods and camshaft

2шт.

A21705

VALVE

Set of 4-O10733AB inlet valves, valves, push rods and camshaft

1шт.

A21706

KIT

Set of 4-O10734AB exhaust valves, valves, push rods and camshaft

1шт.

A21711

KIT

Set of 4-A8491 exhaust valves, valves, push rods and camshaft

1шт.

6450A

CAMSHAFT, valves, push rods and camshaft

1шт.

6451A

X

GEAR - camshaft, valves, push rods and camshaft

1шт.

No. 18 Woodruff key, valves, push rods and camshaft

1шт.

6529A

GUIDE - inlet and exhaust valve (See A21673), valves, push rods and camshaft

8шт.

4602AA

ROD

- push (Taper end) (See A21060), valves, push rods and camshaft

8шт.

O970AB

X

LOCKWASHER - camshaft nut, valves, push rods and camshaft

1шт.

O971AB

X

NUT - camshaft (1-1/8" hex. N.C. thrd.), valves, push rods and camshaft

1шт.

O8975AB

INSERT - exhaust valve seat (For 4968AA cyl head) See A8492 and A21680, valves, push rods and camshaft

4шт.

O9719AB

WASHER - camshaft thrust, valves, push rods and camshaft

1шт.

O9720AB

BUSHING - camshaft, front (See A21659), valves, push rods and camshaft

1шт.

O9721AB

BUSHING - camshaft, second, third and rear (See A21659), valves, push rods and camshaft

3шт.

O9725AB

X

PLUNGER - camshaft thrust, valves, push rods and camshaft

1шт.

O9726AB

X

SPRING - camshaft thrust plunger, valves, push rods and camshaft

1шт.

O9751AB

X

SEAT - inlet and exhaust valve spring, valves, push rods and camshaft

8шт.

O9763AB

LOCK - valve spring retainer (2 required per valve) (See A21656), valves, push rods and camshaft

16шт.

O10593AB

HYDRAULIC LIFT

LIFTER - push rod (Standard) (Taper end) See A21061, A7205 & A21651, valves, push rods and camshaft

8шт.

O10733AB

VALVE - inlet (See A21705), valves, push rods and camshaft

4шт.

O10734AB

VALVE - exhaust (For 4968AA cylinder head) (See A8491 and A21706), valves, push rods and camshaft

4шт.

O10735AB

ROTO-CAP - exhaust valve (See A21687), valves, push rods and camshaft

4шт.

A21100

SHAFT

- valve rocker arm, with plugs, rocker arms

2шт.

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - push rod adjusting (For round end push rod) (See O9778AB), rocker arms

8шт.

3/8" hex. jam nut N.F., rocker arms

8шт.

4607AA

X

ARM - inlet valve rocker, with O9767AB bushing, rocker arms

4шт.

4608AA

ARM - exhaust valve rocker, with O9767AB bushing (For no. 1 and no. 3 cylinder), rocker arms

2шт.

4609AA

ARM - exhaust valve rocker, with O9767AB bushing (For no. 2 and no. 4 cylinder), rocker arms

2шт.

O2803AB1

PLUG - valve rocker arm shaft

4шт.

O9767AB

X

BUSHING - inlet and exhaust rocker arms

8шт.

O9769AB

X

SPRING - valve rocker arm shaft

2шт.

O9770AB

X

WASHER - valve rocker arm shaft

12шт.

O9771AB

X

TUBE - oil, valve rocker arm shaft

2шт.

O9772AB

X

"O" RING - rocker arm shaft oil tube

2шт.

O9773AB

BRACKET - valve rocker arm shaft

4шт.

7/16" x 3-3/4" N.C. hex. bolt w/lockwasher, rocker arms

4шт.

O9778AB

X

SCREW - valve push rod adjusting, for taper end push rod, rocker arms

8шт.

3/8" hex. jam nut, N.F., rocker arms

8шт.

O9882AB

X

WICK - exhaust valve rocker arm

4шт.

O10732AB

STUD - valve rocker arm shaft bracket

4шт.

7/16" light N.F. hex. nut and lockwasher, rocker arms

4шт.

O3658CH

X

SNAP RING - valve rocker arm shaft

4шт.
