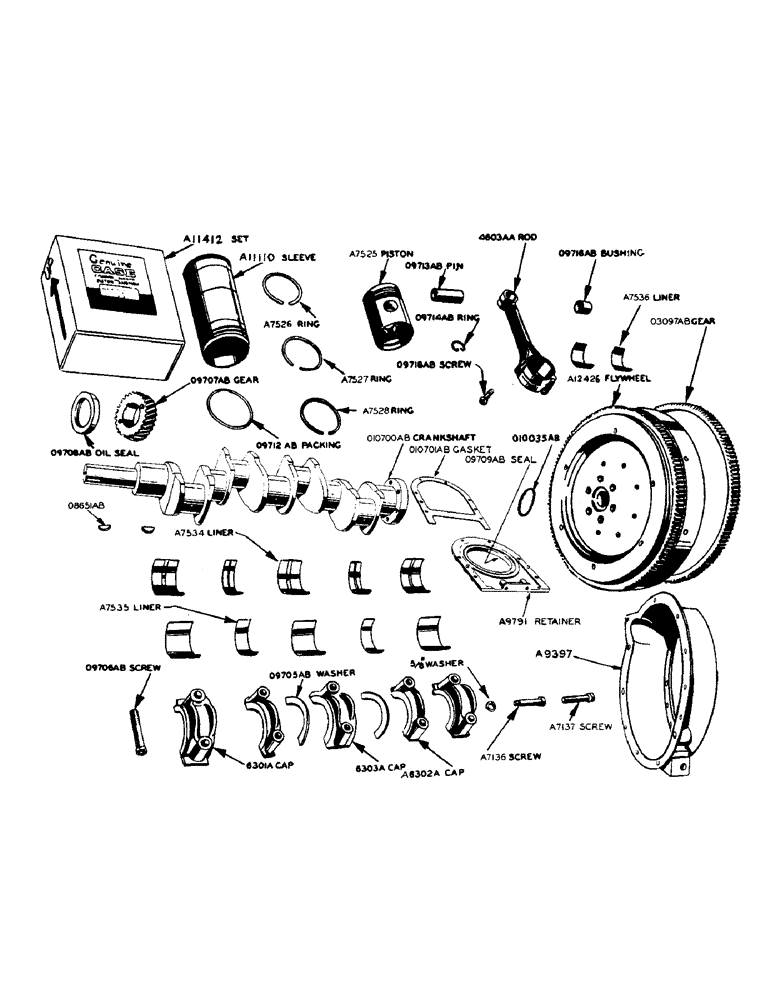

Запчасти Case W9 (034) - GASOLINE ENGINE, CRANKSHAFT, PISTONS, CONNECTING RODS, FLYWHEEL HOUSING PISTONS & CONNECTING RODS (02) - ENGINE

A7207

SLEEVE CYLINDER

LINERS - connecting rod brg., top & bottom half (.002" undersize)

4шт.

A7209

X

LINERS - connecting rod brg., top & bottom half (.010" undersize)

4шт.

A7211

X

LINERS - connecting rod brg., top & bottom half (.020" undersize)

4шт.

A7213

SLEEVE CYLINDER

LINERS - connecting rod brg., top & bottom half (.030" undersize)

4шт.

A7525

PISTON

4шт.

A7526

OIL SEAL

RING - piston, top (See note)

4шт.

A7527

OIL SEAL

RING - piston, second and third (See note)

8шт.

A7528

RING - piston, oil (See note)

4шт.

A7536

X

LINERS - connecting rod brg., top & bottom half (Standard size)

4шт.

A8095

KIT

RINGS - piston, set of (16) Perfect Circle 2-in-1 chrome

1шт.

A11110

X

SLEEVE - cylinder

4шт.

A11412

Set of (2) cylinder sleeves, pistons, rings and piston pins

2шт.

A21721

BUSHING

Set of (2) piston pin bushings

2шт.

A21723

PIN

Set of (2) piston pins and (4) retainer rings

2шт.

4603AA

X

ROD - connecting, with cap, bushing and cap screws

4шт.

O9712AB

X

"O" RING - cylinder sleeve

8шт.

O9713AB

PIN - piston (See A21723)

4шт.

O9714AB

X

RING - piston pin retainer

8шт.

O9716AB

BUSHING - piston pin (See A21721)

4шт.

O9718AB

X

CAP SCREW - connecting rod

8шт.

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

SCREW - dowel, flywheel, crankshaft

2шт.

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

CAP SCREW - flywheel, crankshaft

4шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) (See O9705AB), crankshaft

2шт.

A7216

SLEEVE CYLINDER

LINERS - crankshaft bearing (Wide-upper-lower) (.002" undersize), crankshaft

3шт.

A7219

X

LINERS - crankshaft bearing (Narrow-upper-lower) (.002" undersize), crankshaft

2шт.

A7222

X

LINERS - crankshaft bearing (Wide-upper-lower) (.010" undersize), crankshaft

3шт.

A7225

LINERS - crankshaft bearing (Narrow-upper-lower) (.010" undersize), crankshaft

2шт.

A7228

LINERS - crankshaft bearing (Wide-upper-lower) (.020" undersize), crankshaft

3шт.

A7231

LINERS - crankshaft bearing (Narrow-upper-lower) (.020" undersize), crankshaft

2шт.

A7234

LINERS - crankshaft bearing (Wide-upper-lower) (.030" undersize), crankshaft

3шт.

A7237

LINERS - crankshaft bearing (Narrow-upper-lower) (.030" undersize), crankshaft

2шт.

A7534

X

LINERS - crankshaft bearing (Wide-upper-lower) (Standard size), crankshaft

3шт.

A7535

KUBERS - crankshaft bearing (Narrow-upper-lower) (Standard size), crankshaft

2шт.

A9791

RETAINER

- crankshaft rear oil seal, with dowel pins, crankshaft

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, crankshaft

6шт.

A12425

FLYWHEEL (Use A12426), crankshaft

1шт.

A12426

FLYWHEEL - with ring gear, crankshaft

1шт.

6301A

CAP - crankshaft bearing, wide, crankshaft

2шт.

A6302A

X

CAP - crankshaft bearing, narrow, crankshaft

2шт.

6303A

CAP - crankshaft thrust bearing, crankshaft

1шт.

6452A

RETAINER - crankshaft rear oil seal (Use A9791), crakshaft

1шт.

O3097AB

X

RING GEAR - flywheel (139 teeth), crankshaft

1шт.

O8651AB

X

KEY - Woodruff, for crankshaft

2шт.

O9705AB

X

WASHER - crankshaft thrust (Standard size) (See A7204), crankshaft

2шт.

O9706AB

SCREW - crankshaft bearing cap, crankshaft

10шт.

O9707AB

X

GEAR - crankshaft

1шт.

O9708AB

X

OIL SEAL - crankshaft, front

1шт.

O9709AB

OIL SEAL - crankshaft, rear

1шт.

O9710AB

PIN - dowel, for 6452A retainer, crankshaft

2шт.

O10035AB

X

"O" RING - flywheel, crankshaft

1шт.

O10700AB

CRANKSHAFT

1шт.

O10701AB

X

GASKET - crankshaft rear oil seal retainer, crankshaft

1шт.

A7078

STEP BOLT

- dowel, A9397 to cyl. block, flywheel housing

1шт.

1/2" N.F. hex. nut w/lockwasher, flywheel housing

1шт.

A7079

TUBE

BOLT - dowel, A9397 to cyl. block, flywheel housing

1шт.

1/2" N.F. hex. nut w/lockwasher, flywheel housing

1шт.

A7081

BEARING

SHIELD - flywheel housing dust, flywheel housing

1шт.

A9397

HOUSING

- flywheel

1шт.

1/2" x 1" fin. hex. bolt N.C. w/nut and lockwasher, flywheel housing

2шт.

1/2" x 1-1/4" fin. hex. bolt N.C. w/nut and lockwasher, flywheel housing

2шт.

1/2" x 1-3/4" fin. hex. bolt N.F. w/lockwasher, flywheel housing

5шт.

1/2" x 2-3/4" fin. hex. bolt N.C. w/lockwasher, flywheel housing

1шт.

3/8" x 1" fin. hex. bolt N.C. w/nut and lockwasher, flywheel housing

1шт.

A20108

BOLT - A9397 to cyl. block, flywheel housing

2шт.

3/4" N.F. hex. nut w/lockwasher, flywheel housing

2шт.
