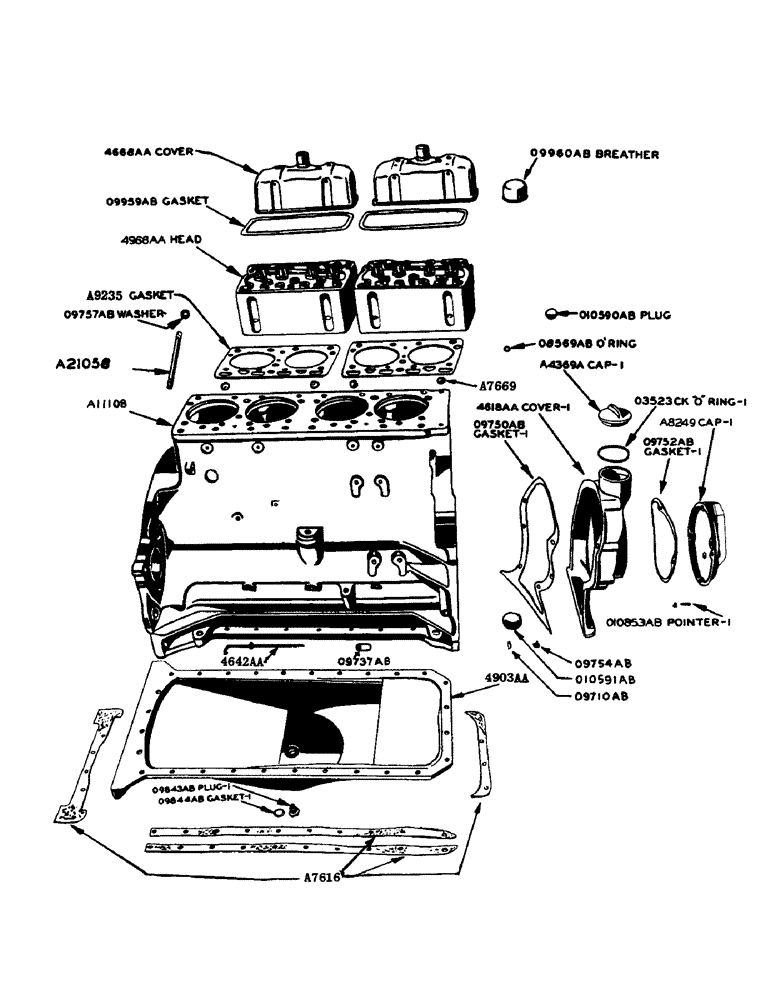

Запчасти Case W9 (032) - GASOLINE ENGINE, CYLINDER HEAD, BLOCK, POWRCEL, OIL PAN, TIMING GEAR COVER CLYINDER HEAD (02) - ENGINE

A7669

RING

- rubber, for A9235 cylinder head gasket

4шт.

A8493

HEAD - cylinder, with valve guides and inserts (For high altitudes) (See 4968AA)

2шт.

A9235

CYLINDER HEAD GASKET

- cylinder head

2шт.

A21058

BOLT

- cylinder head

18шт.

9/16" hex. nut, light, N.F. thrd

18шт.

6530A

HEAD - cylinder (Use 4968AA)

1шт.

4668AA

COVER - cylinder head

2шт.

4968AA

HEAD - cylinder, with valve guides and inserts (See A8493)

2шт.

O8569AB

X

"O" RING - in cylinder head gasket for oil passage

2шт.

O9757AB

X

WASHER - cylinder head stud

18шт.

O9959AB

X

GASKET - cylinder head cover

2шт.

O9960AB

X

BREATHER - cylinder head cover

2шт.

O10590AB

X

WELCH PLUG - for cylinder head (Stainless steel) (1-5/8" dia.)

4шт.

A13-58

5/16" x 1/2" N.C. hex. bolt (For A7532 conduit), cylinder block

2шт.

A7509

PLUG

WELCH PLUG - for cylinder block (1-3/8" dia.) (Stainless steel), cylinder block

1шт.

A7532

CONDUIT - fastens to cylinder block, for wires, cylinder block

1шт.

A7625

COVER - magneto bracket opening, cylinder block

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, cylinder block

3шт.

A11108

BLOCK - cylinder, with bearing caps, camshaft bushings and plugs, cylinder block

1шт.

1/8" slotted head pipe plug, cylinder block

3шт.

3/8" ctsk. headless pipe plug, cylinder block

4шт.

1" ctsk headless pipe plug, cylinder block

1шт.

2-3/8" Welch plug, cylinder block

1шт.

A11111

BLOCK (Use A11108), cylinder block

1шт.

4642AA

X

GAUGE - lube oil level, with felt washer, cylinder block

1шт.

O8861AB

X

"O" RING - magneto bracket to opening cover, cylinder block

1шт.

O9737AB

SOCKET - lube oil level gauge, cylinder block

1шт.

O9738AB

FELT WASHER - lube oil level gauge, cylinder block

1шт.

O9739AB

X

VALVE - water drain, for cyl. block (1/4" P.T.) (On oil filter base), cylinder block

1шт.

O10591AB

X

WELCH PLUG - for cyl. block (1-13/16" dia.) (Stainless steel), cylinder block

1шт.

A7616

GASKET KIT

GASKETS - set of oil pan

1шт.

4903AA

PAN - oil

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher, oil pan

26шт.

O9843AB

X

PLUG - drain, oil pan, magnetic

1шт.

O9844AB

X

GASKET - oil pan drain plug

1шт.

A8249

CAP - timing gear cover with thrust button

1шт.

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher, timing gear cover

1шт.

3/8" x 1-1/8" N.C. hex. hd. bolt w/lockwasher, timing gear cover

3шт.

A4369A

CAP - oil filler, timing gear cover

1шт.

6316A

COVER - timing gear (Use 4618AA), timing gear cover

1шт.

6473A

CAP - timing gear cover (Use A8249)

1шт.

4618AA

COVER - timing gear, with O9708AB oil seal, dowel pin and thrust button, timing gear cover

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher, timing gear cover

2шт.

3/8" x 2-1/2" N.C. hex. bolt w/lockwasher, timing gear cover

8шт.

O9710AB

PIN - dowel, timing gear cover

2шт.

O9750AB

X

GASKET - timing gear cover

1шт.

O9752AB

X

GASKET - timing gear cover cap

1шт.

O9754AB

BUTTON - thrust, timing gear cover and cover cap

2шт.

O10853AB

POINTER - timing, timing gear cover

2шт.

1/4" x 1/2" N.C. hex. bolt, timing gear cover

2шт.

1/4" no. 4014-20 Shakeproof ext. - int. tooth lockwasher, timing gear cover

2шт.

O3523CK

X

"O" RING - for A4369A oil filler cap, timing gear cover

1шт.
