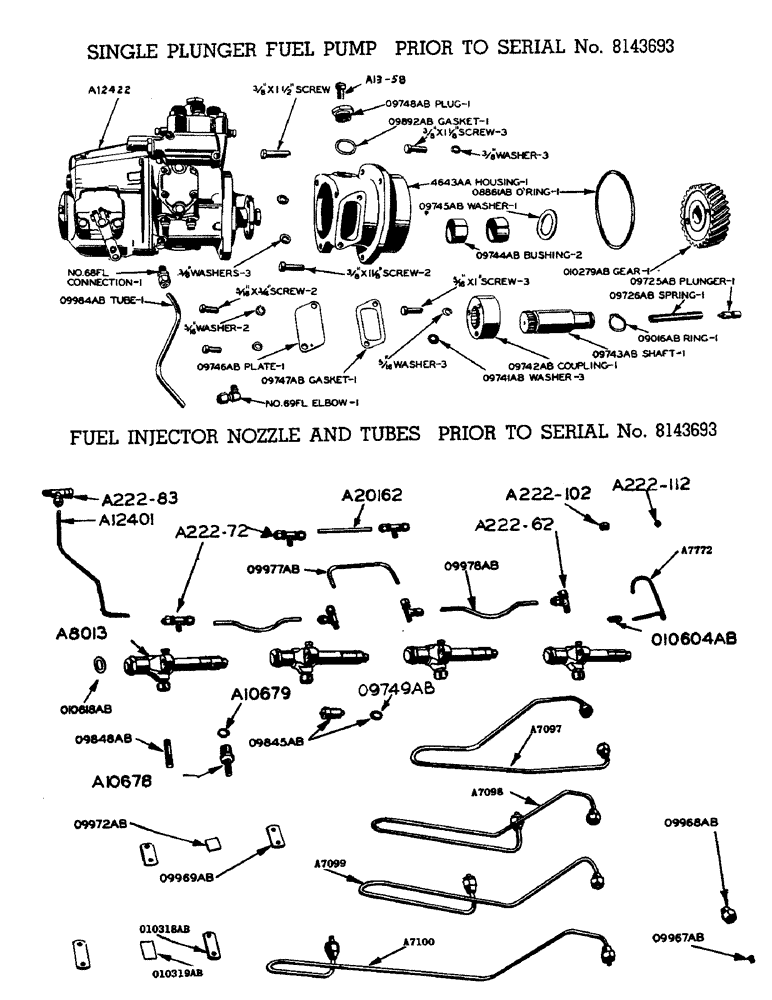

Запчасти Case W9 (018) - DIESEL ENGINE, SINGLE PLUNGER FUEL PUMP PRIOR TO SERIAL NO. 8143693 (02) - ENGINE

A13-58

BOLT - fin. hex. 5/16" x 1/2" N.C. for O9748AB

1шт.

A222-22

CONNECTOR - 68FL (1/4" x 1/8" P.T.) O9984AB, Serial Range: tube-pump

1шт.

A222-42

ELBOW - 69FL (1/4" x 1/8" P.T.), Serial Range: O9984AB-block

1шт.

A12422

PUMP - fuel (American Bosch no. PSB-4A-75D-3594B4)

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher (Fastens pump to hsg.)

2шт.

3/8" x 1-1/2" N.F. hex. bolt w/lockwasher (Fastens pump to hsg.)

1шт.

6314A

HOUSING (Use 4643AA)

1шт.

4643AA

HOUSING - fuel pump drive shaft, with 2-O9744AB bushings

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher (Fastens housing to cylinder block)

3шт.

08861AB

"O" RING - fuel pump drive shaft housing

1шт.

O9016AB

X

SNAP RING - fuel pump drive shaft

1шт.

O9725AB

X

PLUNGER - fuel pump drive shaft thrust

1шт.

O9726AB

X

SPRING - fuel pump drive shaft thrust plunger

1шт.

O9741AB

WASHER - serrated, fuel pump coupling

3шт.

5/16" x 1" N.F. hex. bolt w/lockwasher

3шт.

09742AB

COUPLING - fuel pump drive

1шт.

5/16" x 1" N.F. hex. bolt w/lockwasher

3шт.

O9743AB

SHAFT AND PINION - fuel pump drive

1шт.

O9744AB

BUSHING - fuel pump drive shaft

2шт.

O9745AB

X

WASHER - thrust, fuel pump drive shaft

1шт.

O9746AB

PLATE - fuel pump drive shaft housing

1шт.

5/16" x 3/4" N.C. hex. bolt w/lockwasher

2шт.

O9747AB

GASKET

- fuel pump drive shaft housing plate

1шт.

O9748AB

PLUG - fuel pump drive shaft housing

1шт.

O9892AB

STUD

GASKET - fuel pump drive shaft housing plug

1шт.

O9984AB

TUBE - fuel pump lube oil, cylinder block to fuel pump (1/4" tube)

1шт.

O10279AB

X

GEAR - fuel pump drive

1шт.

No. 141 Woodruff key

1шт.

A222-62

TEE - 71FL flex (1/4" x 1/8") For O9977AB & O9978AB at #1 nozzle, fuel injector nozzle and tubes prior to serial no. 8143693

3шт.

A222-72

TEE - 72FL flex (1/4" x 1/8") For A20162 & O9978AB at #4 nozzle, fuel injector nozzle and tubes prior to serial no. 8143693

3шт.

A222-83

TEE - 76FL flex (1/4" x 1/4") For A12401 at fuel tank, fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

A7097

TUBE

- fuel injector, with sleeves and nuts, for no. 1 cylinder, fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

A7098

LOWER LINK

TUBE - fuel injector, with sleeves and nuts, for no. 2 cylinder, fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

A7099

PIN

TUBE - fuel injector, with sleeves and nuts, for no. 3 cylinder, fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

A7100

BUSHING

TUBE - fuel injector, with sleeves and nuts, for no. 4 cylinder, fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

A7772

TUBE - leak-off, fuel pump to injector nozzle (1/4" tubing), fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

A8013

NOZZLE INJECTION

NOZZLE - injector, with holder and gasket, fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

A10678

STUD

- nozzle holder, large, fuel injector nozzle and tubes prior to serial no. 8143693

4шт.

3/8" light N.F. hex. nut, fuel injector nozzle and tubes prior to serial no. 8143693

4шт.

A10679

GASKET

- injector nozzle holder, stud, fuel injector nozzle and tubes prior to serial no. 8143693

4шт.

A12401

TUBE - leak-off to fuel tank, fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

A20162

TUBE

- injector leak-off, upper (1/4" tubing), fuel injector nozzle and tubes prior to serial no. 8143693

2шт.

O9845AB

X

NOZZLE - injector, with O9747AB gasket, fuel injector nozzle and tubes prior to serial no. 8143693

4шт.

O9848AB

X

STUD - nozzle holder, small, fuel injector nozzle and tubes prior to serial no. 8143693

4шт.

3/8" hex. nut, light, N.F. thrd., fuel injector nozzle and tubes prior to serial no. 8143693

4шт.

O9967AB

X

SLEEVE - injector tube coupling, fuel injector nozzle and tubes prior to serial no. 8143693

8шт.

O9968AB

NUT - injector tube, fuel injector nozzle and tubes prior to serial no. 8143693

8шт.

O9969AB

X

CLAMP - injector tube (Clamps 3 tubes), fuel injector nozzle and tubes prior to serial no. 8143693

2шт.

No. 10 x 1" rhd. mach. screw w/N.C. hex. nut and lockwasher, fuel injector nozzle and tubes prior to serial no. 8143693

2шт.

O9972AB

X

CUSHION - between O9969AB clamp and injector tubes, fuel injector nozzle and tubes prior to serial no. 8143693

2шт.

O9977AB

TUBE - injector nozzle leak-off 1/4" tubing, fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

O9978AB

X

TUBE - injector leak-off, lower (1/4" tubing), fuel injector nozzle and tubes prior to serial no. 8143693

2шт.

O10318AB

X

CLAMP - injector tube (Clamps 4 tubes), fuel injector nozzle and tubes prior to serial no. 8143693

2шт.

No. 10 x 1" rhd. mach. screw with N.C. hex. nut and lockwasher, fuel injector nozzle and tubes prior to serial no. 8143693

2шт.

O10319AB

X

CUSHION - between O10318AB clamp and injector tubes, fuel injector nozzle and tubes prior to serial no. 8143693

2шт.

O10604AB

X

CONNECTION - fuel pump leak-of check valve, fuel injector nozzle and tubes prior to serial no. 8143693

1шт.

O10618AB

X

GASKET - for injector pressure adjusting screw protective cap, fuel injector nozzle and tubes prior to serial no. 8143693

4шт.

A222-102

Imperial brass no. 60FL sleeve for 1/4" tubing, for A12401, A20162, O9977AB and O9978AB tubes, sleeves and nuts for fuel tubes

1шт.

A222-112

Imperial brass no. 61FL nut for 1/4" tubing, for A12401, A20162, O9977AB and O9978AB tubes, sleeves and nuts for fuel tubes

1шт.
