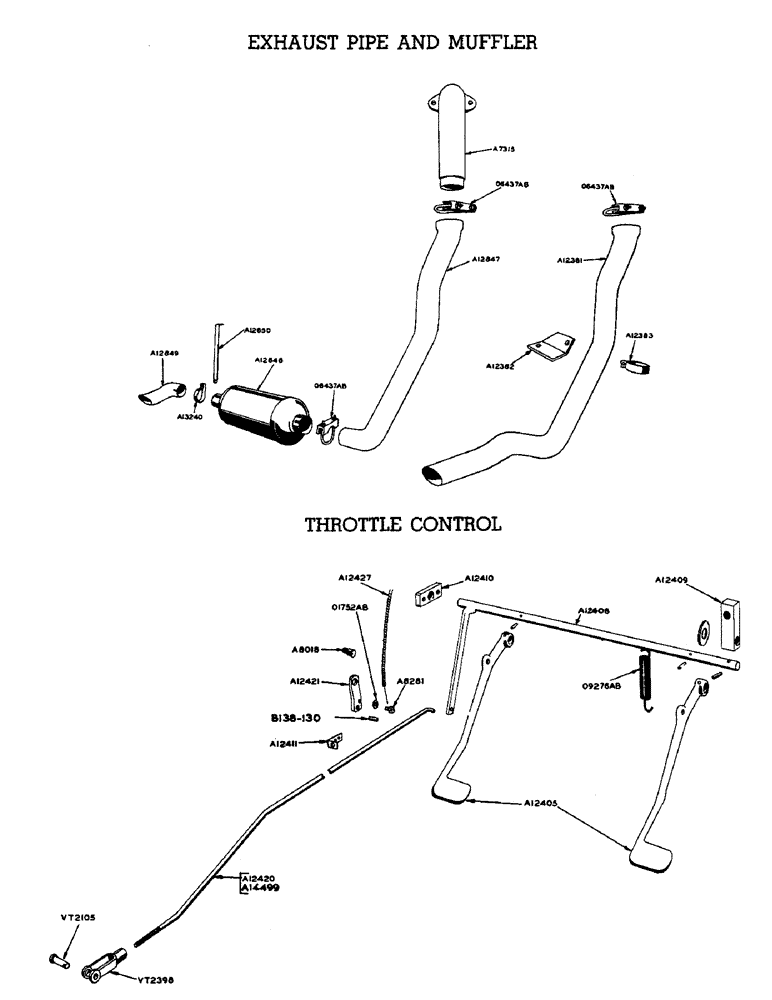

Запчасти Case W9 (016) - DIESEL ENGINE, EXHAUST PIPE AND MUFFLER, EXHAUST PIPE (02) - ENGINE

A12381

PIPE - exhaust (Used w/out muffler)

1шт.

A12382

SUPPORT - exhaust pipe clamp (Used w/out muffler)

1шт.

3/8" x 7/8" fin. hex. bolt N.F. w/nut and lockwasher

1шт.

A12383

CLAMP

- exhaust pipe (Used w/out muffler)

1шт.

3/8" x 1-1/4" fin. hex. bolt N.F. w/nut and lockwasher

1шт.

O6437AB

X

CLAMP - exhaust, Serial Range: pipe-elbow

1шт.

5/16" fin. hex. nut N.C. w/lockwasher

2шт.

A7315

ELBOW - exhaust, pipe and muffler

1шт.

1/2" x 1-1/4" fin. hex. bolt N.C., exhaust pipe and muffler

2шт.

A12847

PIPE - exhaust and muffler

1шт.

A12848

MUFFLER, exhaust pipe and muffler

1шт.

A12849

ELBOW - muffler, and exhaust pipe

1шт.

A12850

SUPPORT - muffler, and exhaust pipe

1шт.

3/8" x 1" hex. bolt N.F. w/nut and lockwasher, exhaust pipe and muffler

1шт.

A13240

CLAMP,2-5/8" ID

- elbow to muffler, exhaust pipe and muffler

1шт.

O6437AB

X

CLAMP - exhaust pipe and muffler

2шт.

5/16" fin. hex. nut N.C. w/lockwasher, exhaust pipe and muffler

4шт.

A8018

STEP BOLT

STUD - throttle lever, throttle control

1шт.

A8281

SWIVEL PIN - throttle control

1шт.

#8 - 32 x 1/4" N.C. rhd. mach. screw, throttle control

1шт.

1/16" x 5/8" cotter pin, throttle control

1шт.

1/4" plain washer, throttle control

1шт.

A12405

PEDAL - foot throttle, throttle control

2шт.

3/16" x 1" groove pin type 5, throttle control

2шт.

A12408

SHAFT - foot throttle cross w/lever, throttle control

1шт.

5/8" SAE plain washer, throttle control

1шт.

3/16" x 1" groove pin type 5, throttle control

1шт.

A12409

SUPPORT - cross shaft, throttle control

1шт.

1/2" x 2" fin. hex. bolt N.F. w/nut and lockwasher, throttle control

1шт.

A12410

BEARING - cross shaft end, throttle control

1шт.

5/16" x 1-3/4" fin. hex. bolt w/nut and lockwasher, throttle control

2шт.

A12411

GUIDE - throttle rod, throttle control

1шт.

5/16" x 1" fin. hex. bolt N.F. w/nut and lockwasher, throttle control

2шт.

A12420

ROD - throttle control (Prior to serial no. 8143693) (See A14499), throttle control

1шт.

3/32" x 5/8" cotter pin, throttle control

1шт.

5/16" SAE plain washer, throttle control

2шт.

1/4" fin. hex. nut N.F., throttle control

1шт.

A12421

LEVER

- throttle, control

1шт.

A12427

CONTROL BLOCK

CONTROL - flex. throttle control

1шт.

A14499

ROD - throttle control (Serial 8143693 and after), throttle control

1шт.

B138-130

ROLL PIN - 1/4" x 3/4" for A12421 throttle control rod

1шт.

O9276AB

X

SPRING - foot throttle pedal return, throttle control

1шт.

VT2105

X

PIN - throttle control yoke end, throttle control

1шт.

1/16" x 1/2" cotter pin, throttle control

1шт.

VT2398

X

YOKE - throttle control end

1шт.
