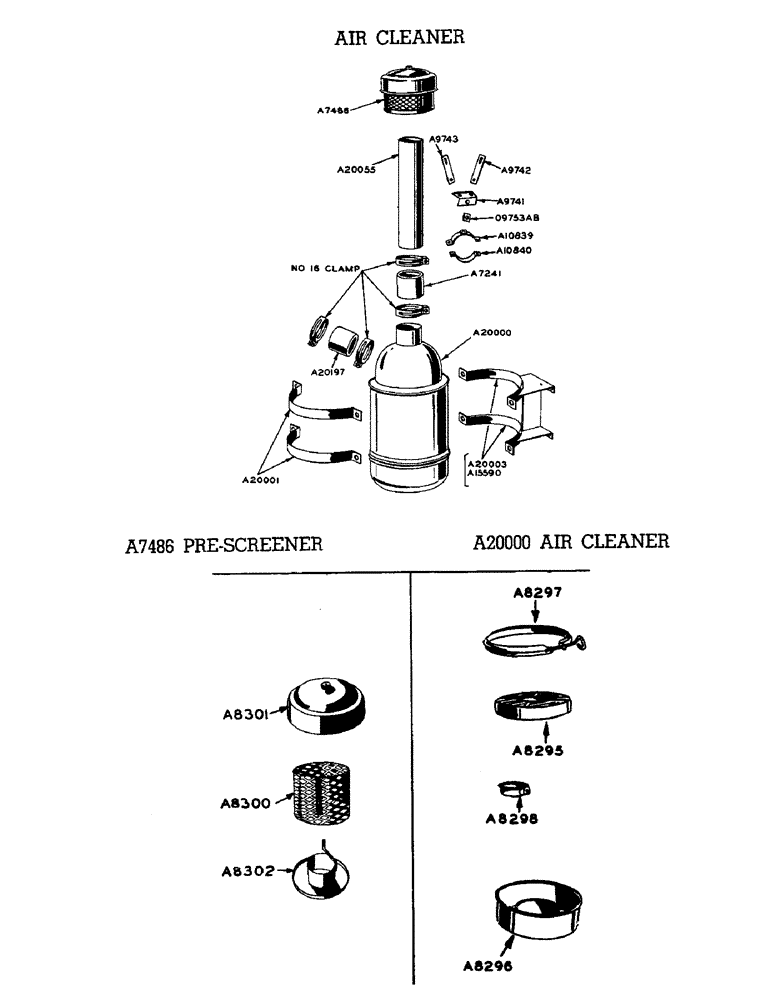

Запчасти Case W9 (014) - DIESEL ENGINE, AIR CLEANER, A7486 PRE-SCREENER, A20000 AIR (02) - ENGINE

A11-58

BOLT - carr. N.C. 5/16" x 1/2" used on A10839

1шт.

5/16" fin. hex. nut N.C. w/Shakeproof int. - ext. lockwasher #4018-24

1шт.

A13-612

BOLT - fin. hex. N.C. 3/8" x 3/4" for A20003

4шт.

3/8" SAE std. lockwasher

4шт.

A7241

HOSE - air cleaner (2-5/8" O.D.)

1шт.

#16 hose clamp

2шт.

A7486

X

PRE-SCREENER (2-1/4")

1шт.

A9741

BRACKET - air intake pipe

1шт.

A9742

STRAP - front, air intake pipe

1шт.

1/4" x 5/8" rhd. mach. screw N.C. w/nut and lockwasher

1шт.

A9743

STRAP - rear air intake pipe

1шт.

1/4" x 5/8" rhd. mach. screw N.C. w/nut and lockwasher

1шт.

A10839

SUPPORT - air intake pipe

1шт.

1/4" x 3/4" rhd. mach. screw N.C. w/hex. nut and lockwasher

2шт.

A10840

STRAP - air intake pipe

1шт.

A15590

SUPPORT - air cleaner

1шт.

A20000

CLEANER - air 7"

1шт.

A20001

STRAP - air cleaner clamp

2шт.

3/8" x 1" fin. hex. bolt w/hex. nut and lockwasher

4шт.

A20003

SUPPORT - air cleaner (Can use A15590)

2шт.

3/8" x 3/4" fin. hex. bolt w/lockwasher

4шт.

A20055

PIPE - air intake

1шт.

A20197

HOSE ASSY.

HOSE - air cleaner to air pipe

1шт.

#16 hose clamp (2-5/8" I.D.)

2шт.

O9753AB

SPACER - air intake pipe

2шт.

A8300

FILTER

SCREEN, A7486 pre-screener

1шт.

A8301

COVER, A7486 pre-screener

1шт.

A8302

SLEEVE, A7486 pre-screener

1шт.

A8295

SCREEN, A20000 air cleaner

1шт.

A8296

CUP - oil, A20000 air cleaner

1шт.

A8297

CLAMP

- oil cup retaining, A20000 air cleaner

1шт.

A8298

CLAMP - screen retaining, A20000 air cleaner

1шт.
