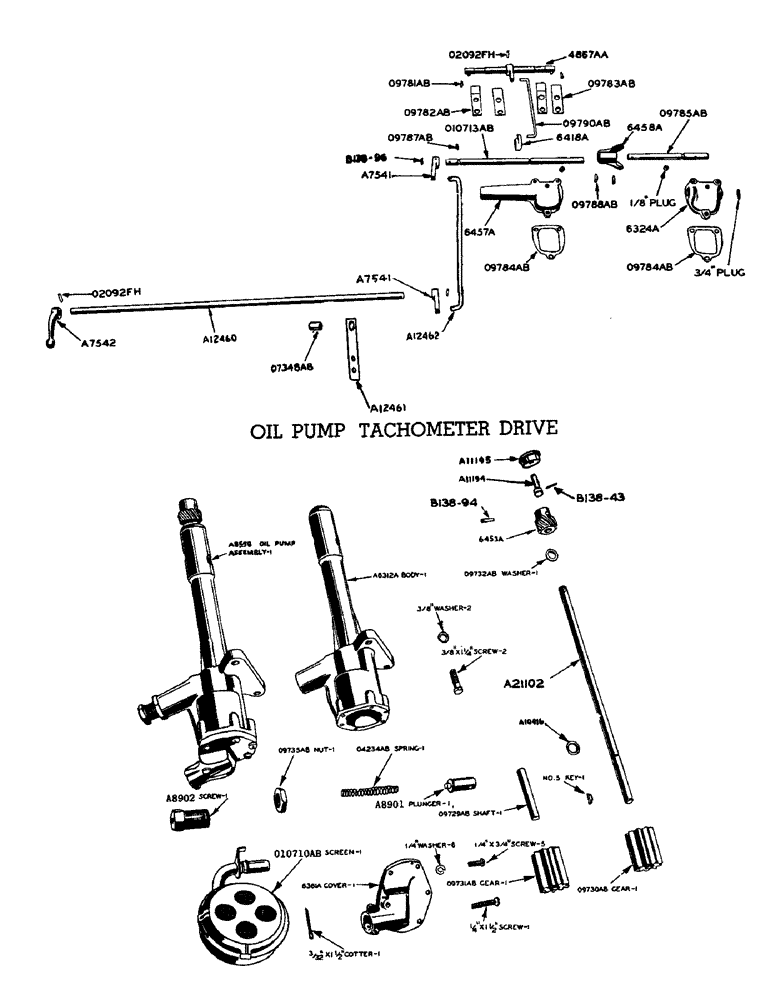

Запчасти Case W9 (010) - DIESEL ENGINE, DECOMPRESSOR, OIL PUMP, TACHOMETER DRIVE (02) - ENGINE

A7541

LEVER - decompressor control shaft

2шт.

A7542

LEVER - hand, decompressor control

1шт.

A12460

SHAFT - hand lever

1шт.

A12461

BRACKET - hand lever shaft

1шт.

3/8" x 1" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

A12462

LINK - decompressor control

1шт.

1/8" x 5/8" cotter pin

2шт.

B138-96

ROLL PIN (3/16" x 1") For 6418A, A7541 and A7542

5шт.

6324A

HOUSING - decompressor intermediate control lever

1шт.

3/4" Welch plug

1шт.

1/8" slotted hd. pipe plug

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 1-3/4" N.C. hex. bolt w/lockwasher

2шт.

6418A

LEVER - decompressor control

4шт.

6457A

HOUSING - decompressor intermediate control lever, rear

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 1-3/4" N.C. hex. bolt w/lockwasher

2шт.

1/8" slotted hd. pipe plug

1шт.

6458A

COUPLING - decompressor intermediate control shaft stop

1шт.

1/4" x 1" N.C. sq. hd. oval pt. set screw w/hex. nut

2шт.

4867AA

SHAFT - decompressor, with lever and trip pin

2шт.

O7348AB

SPACER - hand lever

1шт.

O9781AB

PIN - decompressor trip

4шт.

O9782AB

BRACKET - decompressor shaft, top

4шт.

7/16" x 4" hex. bolt w/lockwasher

4шт.

O9783AB

BRACKET - decompressor shaft, bottom

4шт.

O9784AB

GASKET - decompressor control lever housing

2шт.

O9785AB

SHAFT - decompressor intermediate control, short

1шт.

O9787AB

X

"O" RING - decompressor intermediate control shafts

3шт.

O9788AB

X

SET SCREW - decompressor control shaft

2шт.

O9790AB

LINK - decompressor control, upper

2шт.

1/16" x 5/8" cotter pin

4шт.

O10713AB

SHAFT - decompressor intermediate control, rear

1шт.

A8558

PUMP, ENGINE OIL

PUMP - oil, assembly, less screen, oil pump

1шт.

A8901

X

PLUNGER - oil pump relief, oil pump

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

A10916

RING, SNAP

SNAP RING - oil pump drive shaft

1шт.

A21102

SHAFT

- drive, oil pump

1шт.

B138-94

ROLL PIN - oil pump drive gear (3/16" x 7/8")

1шт.

A6312A

BODY - oil pump

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher, oil pump

2шт.

6361A

COVER - oil pump body, oil pump

1шт.

1/4" x 3/4" N.C. rd. hd. mach. screw w/lockwasher, oil pump

5шт.

1/4" x 1-1/2" N.C. rd. hd. mach. screw w/lockwasher, oil pump

1шт.

6453A

X

GEAR - oil pump drive, oil pump

1шт.

O4234AB

X

SPRING - oil pump relief plunger, oil pump

1шт.

O9729AB

SHAFT - stub, oil pump

1шт.

O9730AB

X

GEAR - oil pump, with keyway

1шт.

#5 Woodruff key, oil pump

1шт.

O9731AB

X

GEAR - oil pump, without keyway, oil pump

1шт.

O9732AB

X

WASHER - thrust, oil pump drive gear

1шт.

O9735AB

NUT - oil pump relief adjusting screw

1шт.

O10710AB

SCREEN - oil pump, float-o-type

1шт.

3/32" x 1-1/2" cotter pin, oil pump

1шт.

A11194

X

ADAPTER - tachometer drive

1шт.

A11195

PLUG

- adapter, tachometer drive

1шт.

B138-43

ROLL PIN - 3/32" x 7/8" (Tachometer drive adapter)

1шт.
