Запчасти Case W9 (008) - DIESEL ENGINE, VALVES, PUSH RODS AND CAMSHAFT, SET OF VALVE GRIND GASKETS (02) - ENGINE

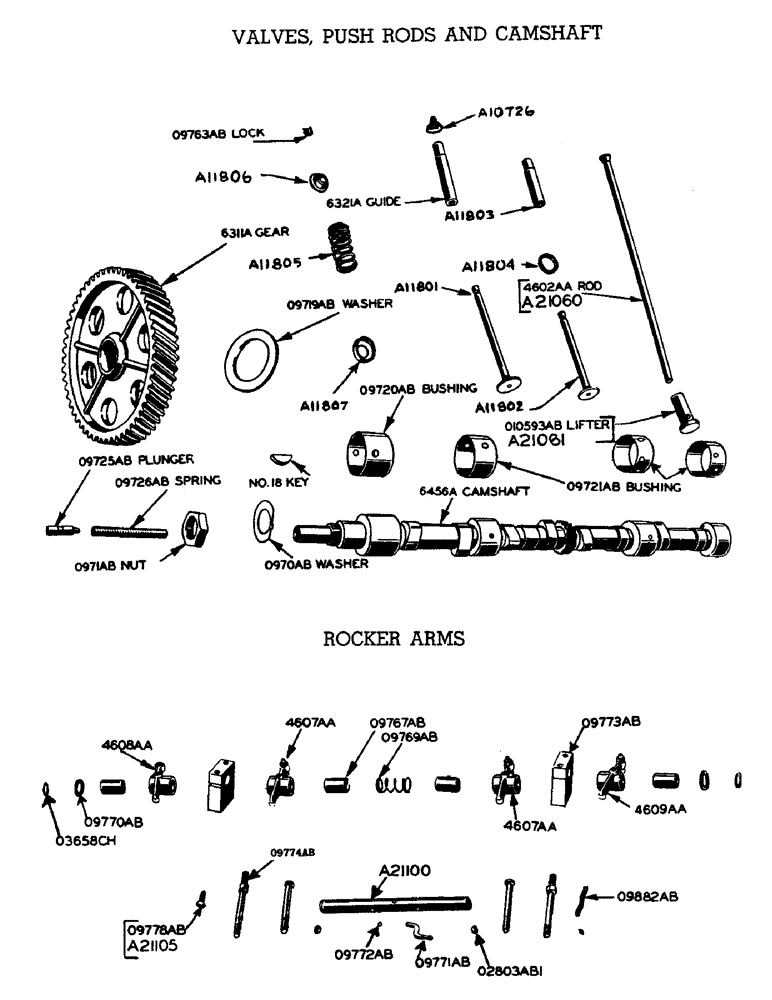

Схема запчастей Case W9 - (008) - DIESEL ENGINE, VALVES, PUSH RODS AND CAMSHAFT, SET OF VALVE GRIND GASKETS (02) - ENGINE

Артикул

Название

Примечание

Количество

A20151

GASKET

KIT - valve grind, includes the following:

1шт.

A7669

RING

- rubber, for cyl. hd. gasket

4шт.

A9235

CYLINDER HEAD GASKET

- cylinder head

2шт.

A11888

MANIFOLD GASKET

- intake manifold

2шт.

A11889

GASKET

- exhaust manifold

4шт.

O8569AB

X

"O" RING - cyl. hd. oil passage

2шт.

O9772AB

X

"O" RING - rocker arm shaft tube

2шт.

O9784AB

GASKET - decomp. lever hsg.

2шт.

O9804AB1

X

GASKET - water manifold

4шт.

O9959AB

X

GASKET - cyl. hd. cover

2шт.

O10714AB

X

GASKET - intake manif. elbow

1шт.

O10715AB

X

GASKET - thermostat hsg.

1шт.

O10717AB

X

GASKET - thermostat

1шт.

A7205

LIFTER - push rod (010" oversize) (See O10593AB) For taper end push rod, valve, push rods and camshaft

8шт.

A10726

SEAL

SHIELD - rubber, intake valve stem oil, valves, push rods and camshaft

4шт.

A11801

VALVE

- inlet (See A21712), valves, push rods and camshaft

4шт.

A11802

VALVE - exhaust (See A21713), valves, push rods and camshaft

4шт.

A11803

GUIDE

- exhaust valve (See A21674), valves push rods and camshaft

4шт.

A11804

INSERT - exhaust valve set (See A21681), valves push rods and camshaft

4шт.

A11805

SPRING - inlet and exhaust valve (See A21693), valves, push rods and camshaft

8шт.

A11806

RETAINER - valve spring (See A21658), valves, push rods and camshaft

8шт.

A11807

SEAT - inlet and exhaust valve spring, valves, push rods and camshaft

8шт.

A21060

ROD

- push, round end, use w/A21105 & A21061 (See 4602AA), valves, push rods and camshaft

8шт.

A21061

LIFTER - push rod, use w/A21060 & A21105 (See O10593AB), valves, push rods and camshaft

8шт.

A21651

HYDRAULIC LIFT

Set of 4-O10593AB lifters, valves, push rods and camshaft

2шт.

A21654

KIT

Set of 4-A21061 lifters, valves, push rods and camshaft

2шт.

A21658

Set of 4-O9763AB locks and 2-A11806 retainers, valves, push rods and camshaft

4шт.

A21659

SPARE PART

Set of 4-camshaft bushings, valves, push rods and camshaft

1шт.

A21671

GUIDE

Set of 2-inlet valve guides, valves, push rods and camshaft

2шт.

A21674

GUIDE

Set of 2-exhaust valve guides, valves, push rods and camshaft

2шт.

A21681

KIT

Set of 2-exhaust valve seats, valves, push rods and camshaft

2шт.

A21693

Set of 4-valve springs, valves, push rods and camshaft

2шт.

A21712

VALVE

Set of 4-exhaust valves, valves, push rods and camshaft

1шт.

A21713

KIT

Set of 4-intake valves, valves, push rods and camshaft

1шт.

6311A

X

GEAR - camshaft, valves, push rods and camshafts

1шт.

#18 Woodruff key, valves, push rods and camshaft

1шт.

6321A

GUIDE - inlet valve (See A21671), valves, push rods and camshaft

4шт.

6456A

CAMSHAFT, valves, push rods and camshaft

1шт.

4602AA

ROD

- push (Taper end) (See A21060), valves, push rods and camshaft

8шт.

O970AB

X

LOCKWASHER - camshaft nut, valves, push rods and camshaft

1шт.

O971AB

X

NUT - camshaft (1-1/8" N.C. hex.), valves, push rods and camshaft

1шт.

O9719AB

WASHER - camshaft thrust, valves, push rods and camshaft

1шт.

O9720AB

BUSHING - camshaft, front (See A21659), valves, push rods and camshaft

1шт.

O9721AB

BUSHING - camshaft, second, third and rear (See A21659), valves, push rods and camshaft

3шт.

O9725AB

X

PLUNGER - camshaft thrust, valves, push rods and camshaft

1шт.

O9726AB

X

SPRING - camshaft thrust plunger, valves, push rods and camshaft

1шт.

O9763AB

LOCK - valve spring retainer (2 per valve) (See A21658), valves, push rods and camshaft

1шт.

O10593AB

HYDRAULIC LIFT

LIFTER - push rod, tapered end (See A21658, A21061, A7205 & A21651), valves, push rods and camshaft

8шт.

A21100

SHAFT

- valve rocker arm with plugs, rocker arms

2шт.

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - push rod adjusting (For round end push rod) (See O9778AB), rocker arms

8шт.

3/8" hex. ham nut N.F., rocker arms

8шт.

4607AA

X

ARM - inlet valve rocker, with O9767AB bushing, rocker arms

4шт.

4608AA

ARM - exhaust valve rocker, w/O9767AB bushing (For #1 and #3 cyl.), rocker arms

2шт.

4609AA

ARM - exhaust valve rocker, w/O9767AB bushing (For #2 and #4 cyl.), rocker arms

2шт.

O2803AB1

PLUG - valve rocker arm shaft, rocker arms

4шт.

O9767AB

X

BUSHING - inlet and exhaust rocker arms

8шт.

O9769AB

X

SPRING - valve rocker arm shaft

2шт.

O9770AB

X

WASHER - valve rocker arm shaft

12шт.

O9771AB

X

TUBE - oil, valve rocker arm shaft

2шт.

O9772AB

X

"O" RING - rocker arm shaft oil tube

2шт.

O9773AB

BRACKET - valve rocker arm shaft

4шт.

7/16" x 4" N.C. hex. bolt w/lockwasher, rocker arms

4шт.

O9774AB

STUD - valve rocker arm shaft bracket, rocker arms

4шт.

7/16" light N.F. hex. nut and lockwasher, rocker arms

4шт.

O9778AB

X

SCREW - valve push rod adjusting (For taper end push rod), rocker arms

8шт.

3/8" hex. jam nut N.F., rocker arms

8шт.

O9882AB

X

WICK - exhaust valve rocker arm

4шт.

O3658CH

X

SNAP RING - valve rocker arm shaft

4шт.

Выбрано товаров: 68
