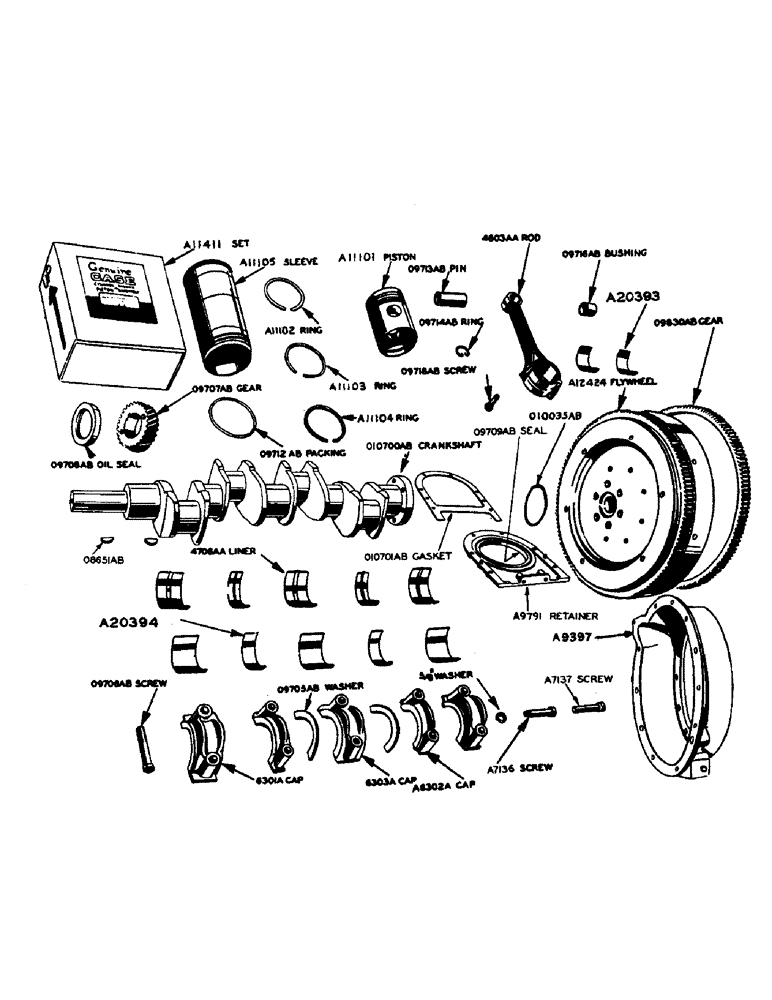

Запчасти Case W9 (006) - DIESEL ENGINE, CRANKSHAFT, PISTONS, CONNECTING RODS, FLYWHEEL HOUSING PISTONS & CONNECTING RODS (02) - ENGINE

A7173

X

LINERS - connecting rod bearing, top - bottom half (.002" undersize)

4шт.

A7175

X

LINERS - connecting rod bearing, top - bottom half (.010" undersize)

4шт.

A7177

SHIELD

LINERS - connecting rod bearing, top - bottom half (.020" undersize)

4шт.

A7179

X

LINERS - connecting rod bearing, top - bottom half (.030" undersize)

4шт.

A11101

PISTON

(See A11411)

4шт.

A11102

RING

- piston, top (See note)

4шт.

A11103

RING

- piston, second and third (See note)

8шт.

A11104

RING

- piston, oil (See note)

4шт.

A11105

X

SLEEVE - cylinder

4шт.

A11411

Set of (2) sleeves, pistons, rings and piston pins

2шт.

A11413

PACKAGE, RINGS

RINGS - piston, set of (16) Perfect Circle 2-in-1 chrome

1шт.

A20393

LINING

LINER - connecting rod bearing, top - bottom half (Standard size)

4шт.

A21721

BUSHING

Set of 4 piston pin bushings

2шт.

A21723

PIN

set of 4 piston pins and 4 retaining rings

2шт.

4603AA

X

ROD - connecting, with cap, bushings and cap screws

4шт.

O9712AB

X

"O" RING - cylinder sleeve

8шт.

O9713AB

PIN - piston (See A21723)

4шт.

O9714AB

X

RING - piston pin retainer

8шт.

O9716AB

BUSHING - piston pin (See A21721)

8шт.

O9718AB

X

CAP SCREW - connecting rod

8шт.

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

SCREW - dowel, flywheel, crankshaft

2шт.

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

CAP SCREW - flywheel, crankshaft

4шт.

A7182

KIT

LINERS - crankshaft bearing (Wide-upper-lower .002" undersize), crankshaft

3шт.

A7185

CHAIN

LINERS - crankshaft bearing (Narrow-upper-lower .002" undersize), crankshaft

2шт.

A7188

BEARING LINER

LINERS - crankshaft bearing (Wide-upper-lower .010" undersize), crankshaft

3шт.

A7191

SPINDLE

LINERS - crankshaft bearing (Narrow-upper-lower .010" undersize), crankshaft

2шт.

A7194

KIT

LINERS - crankshaft bearing (Wide-upper-lower .020" undersize), crankshaft

3шт.

A7197

LINERS - crankshaft bearing (Narrow-upper-lower .020" undersize), crankshaft

2шт.

A7200

KIT

LINERS - crankshaft bearing (Wide-upper-lower .030" undersize), crankshaft

3шт.

A7203

LINERS - crankshaft bearing (Narrow-upper-lower .030" undersize), crankshaft

2шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) (See O9705AB), crankshaft

2шт.

A9791

RETAINER

- crankshaft rear oil seal, with dowel pins, crankshaft

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, crankshaft

6шт.

A12423

FLYWHEEL (Use A12424), crankshaft

1шт.

A12424

FLYWHEEL - with ring gear, crankshaft

1шт.

A20394

LINING

LINER - crankshaft bearing (Narrow-upper-lower) (Standard size), crankshaft

2шт.

6301A

CAP - crankshaft bearing, wide, crankshaft

2шт.

A6302A

X

CAP - crankshaft bearing, narrow, crankshaft

2шт.

6303A

CAP - crankshaft thrust bearing, crankshaft

1шт.

4706AA

X

LINER - crankshaft bearing (Wide-upper-lower) (Standard size), crankshaft

3шт.

O8651AB

X

KEY - Woodruff, for crankshaft

2шт.

O9705AB

X

WASHER - crankshaft thrust (Standard size) (See A7204), crankshaft

2шт.

O9706AB

SCREW - crankshaft bearing cap, crankshft

10шт.

O9707AB

X

GEAR - crankshaft

1шт.

O9708AB

X

OIL SEAL - crankshaft, front

1шт.

O9709AB

OIL SEAL - crankshaft, rear

1шт.

O9710AB

PIN - dowel, for A9791 retainer, crankshaft

2шт.

O9830AB

X

RING GEAR - flywheel (137 teeth), crankshaft

1шт.

O10035AB

X

"O" RING - flywheel, crankshaft

1шт.

O10700AB

CRANKSHAFT

1шт.

O10701AB

X

GASKET - crankshaft rear oil seal retainer, crankshaft

1шт.

A7078

STEP BOLT

- dowel, A9397 to cyl. block, flywheel housing

1шт.

1/2" N.F. hex. nut w/lockwasher, flywheel housing

1шт.

A7097

TUBE

BOLT - dowel, A9397 to cyl. block, flywheel housing

1шт.

1/2" N.F. hex. nut w/lockwasher, flywheel housing

1шт.

A7081

BEARING

SHIELD - flywheel housing dust, flywheel housing

1шт.

A9397

HOUSING

- flywheel

1шт.

1/2" x 1" fin. hex. bolt N.C. w/nut and lockwasher, flywheel housing

2шт.

1/2" x 1-1/4" fin. hex. bolt N.C. w/nut and lockwasher, flywheel housing

2шт.

1/2" x 1-3/4" fin. hex. bolt N.F. w/lockwasher, flywheel housing

5шт.

1/2" x 2-3/4" fin. hex. bolt N.C. w/lockwasher, flywheel housing

1шт.

3/8" x 1" fin. hex. bolt N.C. w/nut and lockwasher, flywheel housing

1шт.

A20108

BOLT - A9397 to cyl. block, flywheel housing

2шт.

3/4" N.F. hex. nut w/lockwasher, flywheel housing

2шт.
