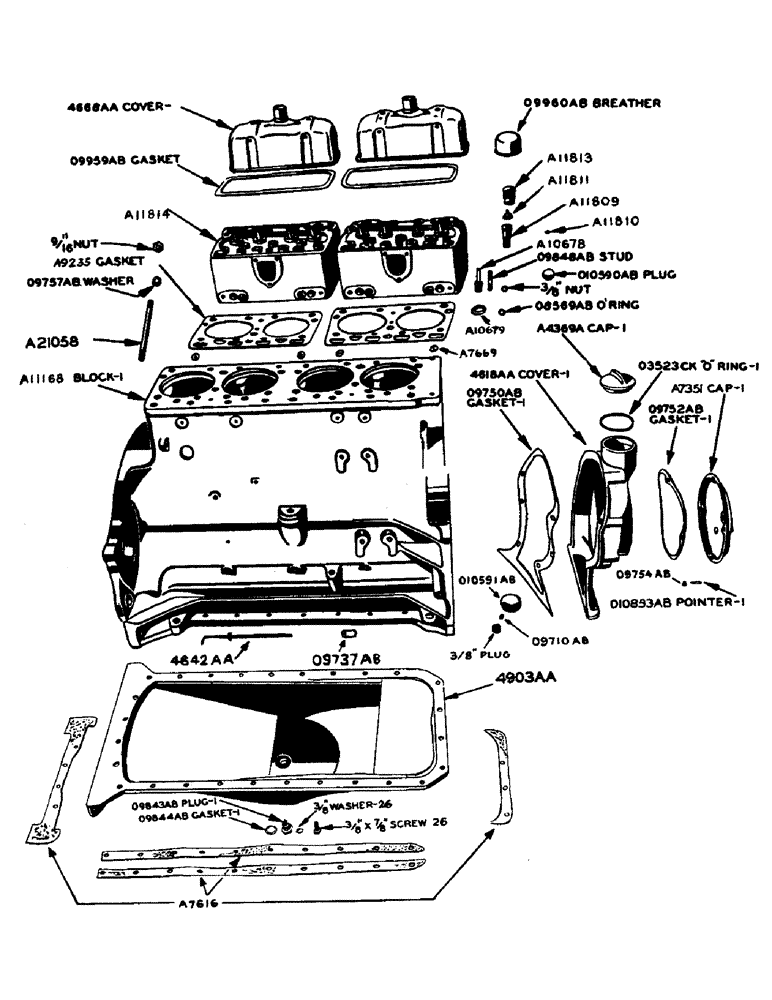

Запчасти Case W9 (004) - DIESEL ENGINE, CYLINDER HEAD, BLOCK, POWRCEL, OIL PAN, TIMING GEAR COVER CYLINDER HEAD (02) - ENGINE

A7669

RING

- rubber, for A9235 cylinder head gasket

4шт.

A9235

CYLINDER HEAD GASKET

- cylinder head

2шт.

A10678

STUD

- nozzle holder, large

4шт.

3/8" N.F. hex. nut

4шт.

A10679

GASKET

- nozzle holder stud

4шт.

A11800

HEAD - cylinder (Use A11814)

1шт.

A11814

NO LONGER SERVICED

HEAD - cylinder, with valve guides and valve inserts

2шт.

A21058

BOLT

- cylinder head

18шт.

9/16" N.F. hex. nut

18шт.

4668AA

COVER - cylinder head

2шт.

O8569AB

X

"O" RING - in cylinder head gasket for oil passage

2шт.

O9757AB

X

WASHER - cylinder head stud

18шт.

O9848AB

X

STUD - nozzle holder, small

4шт.

3/8" N.F. hex. nut

4шт.

O9959AB

X

GASKET - cylinder head cover

2шт.

O9960AB

X

BREATHER - cylinder head cover

2шт.

O10590AB

X

WELCH PLUG - for cylinder head (Stainless steel) (1-5/8" dia.)

4шт.

A11809

X

BODY - powrcel

4шт.

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel body

4шт.

A11811

CAP - powrcel

4шт.

A11812

CLAMP

- powrcel

4шт.

A11813

PLUG

SCREW - powrcel clamp

4шт.

A13-58

BOLT - fin. hex. (5/16" x 1/2") For A7532, cylinder block

2шт.

A7509

PLUG

WELCH PLUG - for cylinder block (Stainless steel) (1-3/8" dia.), cylinder block

1шт.

A7532

CONDUIT - fastens to cylinder block, for wires, cylinder block

1шт.

A11112

BLOCK - cylinder (Use A11168), cylinder block

1шт.

A11168

BLOCK - cylinder with bearing caps, camshaft bushings and plugs, cylinder block

1шт.

3/8" ctsk. headless pipe plug, cylinder block

4шт.

1" ctsk. headless pipe plug, cylinder block

1шт.

2-3/8" Welch plug, stainless steel, cylinder block

1шт.

4642AA

X

GAUGE - lube oil level, with felt washer, cylinder block

1шт.

O9737AB

SOCKET - oil gauge dipstick, cylinder block

1шт.

O9738AB

FELT WASHER - lube oil level gauge, cylinder block

1шт.

O9739AB

X

VALVE - water drain, cylinder block

1шт.

O10591AB

X

WELCH PLUG - for cylinder block (Stainless steel) (1-13/16" dia.), cylinder block

1шт.

A7616

GASKET KIT

GASKETS - set of oil pan

1шт.

4903AA

PAN - oil

1шт.

3/8" x 7/8" N.C. hex. bolt with lockwasher, oil pan

26шт.

O9843AB

X

PLUG - drain, oil pan, magnetic

1шт.

O9844AB

X

GASKET - oil pan drain plug

1шт.

A7351

CAP - timing gear cover, with thrust button, timing gear cover

1шт.

3/8" x 3/4" N.C. hex. bolt with lockwasher, timing gear cover

1шт.

3/8" x 1-1/8" N.C. hex. bolt with lockwasher, timing gear cover

3шт.

A4369A

CAP - oil filler, timing gear cover

1шт.

6316A

COVER - timing gear (Use 4618AA), timing gear cover

1шт.

6469A

CAP - timing gear (Use A7351), timing gear cover

1шт.

4618AA

COVER - timing gear, w/O9708AB oil seal, dowel pin & thrust button, timing gear cover

1шт.

3/8" x 1" N.C. hex. bolt with lockwasher, timing gear cover

2шт.

3/8" x 2-1/2" N.C. hex. bolt with lockwasher, timing gear cover

8шт.

O9710AB

PIN - dowel, timing gear cover

2шт.

O9750AB

X

GASKET - timing gear cover

1шт.

O9752AB

X

GASKET - timing gear cover cap

1шт.

O9754AB

BUTTON - thrust, timing gear cover and cover cap

2шт.

O10853AB

POINTER - timing, timing gear cover

1шт.

1/4" x 1/2" N.C. hex. bolt w/ext. - int. tooth lockwasher, timing gear cover

1шт.

O3523CK

X

"O" RING - for A4369A oil filler cap, timing gear cover

1шт.
