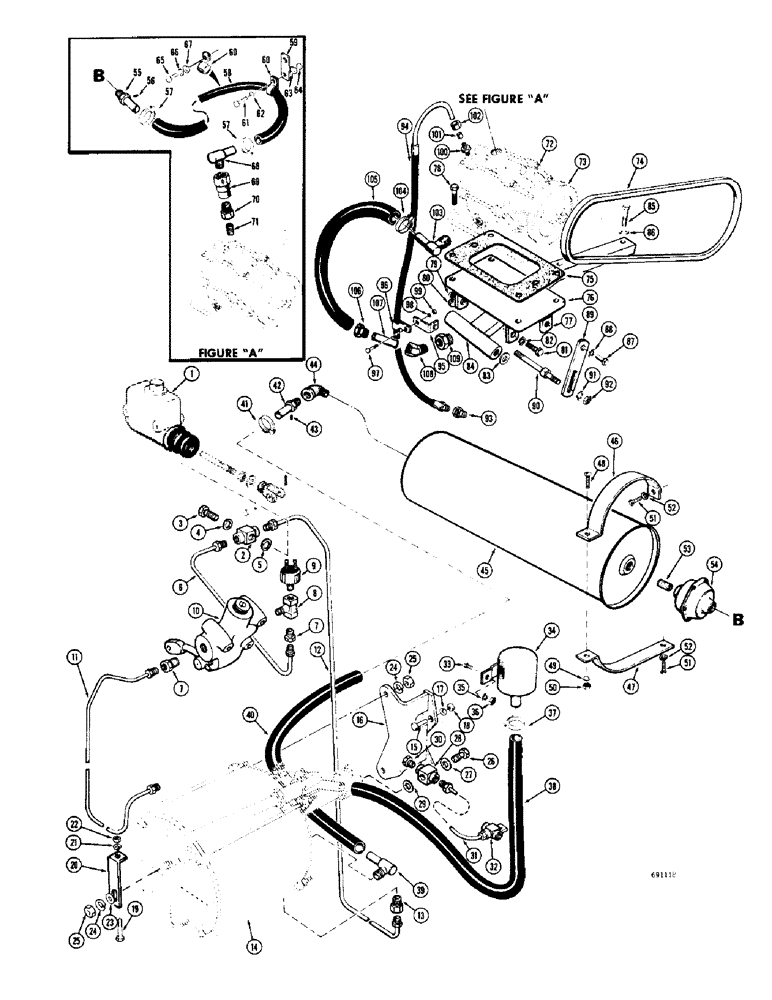

Запчасти Case W8C (116) - HYDROVAC BRAKE SYSTEM, DIESEL ENGINE, HYDROVAC PUMP, CYL. RESERVE TANK & FILTERS (07) - BRAKES

1

A19970

CYLINDER

- master, brake (Parts list Figure 110)

1шт.

2

A18890

CONNECTOR, ELEC

CONNECTOR - master cylinder to brake lines

1шт.

3

A12864

BOLT

- special, Serial Range: connector-cylinder

1шт.

4

NLS

NO LONGER SERVICED

- connector to bolt (Outer)

1шт.

5

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- connector to master cylinder (Inner)

1шт.

6

A18988

TUBE

- master cylinder to clutch control valve

1шт.

7

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - clutch control tube to tee and transmission tube to valve

2шт.

8

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- clutch control tube and switch to control valve

1шт.

9

A12491

SWITCH

ASSY - brake, stop light

1шт.

10

A18891

LOCK VALVE

VALVE - clutch control (Parts list Figure 128)

1шт.

11

A18977

TUBE - clutch control valve to transmission control valve

1шт.

12

A18980

PIPE

TUBE - master cylinder to Hydrovac cylinder

1шт.

13

A18273

FITTING

- tube to Hydrovac cylinder

1шт.

14

A18554

CYLINDER

- Hydrovac (Parts list Figure 122 and 124)

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

A18895

BRACKET - Hydrovac, Serial Range: cylinder-chassis

1шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

20

A18898

BRACKET - support

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

23

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

24

92-6

LOCK WASHER,3/8"

3шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

3шт.

26

A12864

BOLT

- connector to Hydrovac cylinder

1шт.

27

33260

GASKET

- bolt to connector (Outer)

1шт.

28

A12863

SUN VISOR

CONNECTOR - Hydrovac cylinder to brake tube

1шт.

29

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- connector to Hydrovac cylinder (Inner)

1шт.

30

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

31

A18981

TUBE

- connector to brake line tee

1шт.

32

A12451

FITTING

TEE - front and rear brake line

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

34

A18529

CLEANER - air, Hydrovac (Parts list Figure 126)

1шт.

35

92-5

LOCK WASHER,5/16"

1шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

38

A19325

INTAKE AIR HOSE,19.00 mm ID x 559.00 mm, SAE 20R1

- Air cleaner to Hydrovac 19.00 mm ID x 559.00 mm, SAE 20R1

1шт.

39

A17852

NIPPLE - 90 degrees, Serial Range: Hydrovac-hose

1шт.

40

A18900

HOSE ASSY.

HOSE - Hydrovac to reserve tank

1шт.

41

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

42

A18515

SUN VISOR

NIPPLE - special

1шт.

43

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

44

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 90 degrees (1/2" NPT)

1шт.

45

A18514

TANK

- reserve, vacuum

1шт.

46

A19960

STRAP - mounting, tank (Upper)

2шт.

47

A19961

STRAP - mounting, tank (Lower)

2шт.

48

75-432

SCREW

- machine, round head (1/4" - 20 NC x 2")

2шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

50

25-224

SQUARE NUT,Sq, 1/4"-20

- square (1/4" - 20 NC)

2шт.

51

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

52

92-5

LOCK WASHER,5/16"

4шт.

53

221-1185

FITTING

NIPPLE - straight (1/2" NPT)

1шт.

54

A18532

CLEANER

FILTER - air, vacuum pump (Parts list Figure 126)

1шт.

55

A18515

SUN VISOR

NIPPLE - special

1шт.

56

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

57

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

58

A18904

HOSE ASSY.

HOSE - filter to vacuum pump

1шт.

59

A19330

BRACKET - clamp mounting

1шт.

60

A27256

CLAMP

TUBE, manifold and cylinder block

2шт.

61

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

62

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

63

92-5

LOCK WASHER,5/16"

1шт.

64

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

65

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

66

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

67

92-6

LOCK WASHER,3/8"

1шт.

68

A17852

ELBOW - male, 90 degrees

1шт.

69

A18513

LOCK VALVE

VALVE - check (Parts list Figure 126)

1шт.

70

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer

1шт.

71

221-1185

FITTING

NIPPLE - straight (1/2" NPT)

1шт.

72

A18534

PUMP

- vacuum (Parts list Figure 126)

1шт.

73

A18536

PULLEY

- vacuum pump

1шт.

74

A18537

V-BELT,39.00" L

Pump Drive 39.00" L

1шт.

75

A18535

GASKET

-, Serial Range: pump-base

1шт.

76

A19580

BASE - pump mounting

1шт.

77

A19497

ANGLE - base mounting

1шт.

78

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

79

92-6

LOCK WASHER,3/8"

4шт.

80

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

81

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

82

92-8

LOCK WASHER,1/2"

2шт.

83

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

84

A18542

BRACKET - mounting, base

1шт.

85

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

86

92-7

LOCK WASHER,7/16"

2шт.

87

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

88

92-6

LOCK WASHER,3/8"

1шт.

89

A18545

STRAP - pump adjusting

1шт.

90

A18546

BOLT (SPREADER)

BOLT - adjusting strap

1шт.

91

92-6

LOCK WASHER,3/8"

1шт.

92

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

93

221-1053

BUSHING

- reducer

1шт.

94

A18547

HOSE

- lubrication, vacuum pump

1шт.

95

L12266

BRACKET

- clamp mounting

1шт.

96

49774

CLAMP

-, Serial Range: hose-bracket

1шт.

97

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

98

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, internal Shakeproof (1/4")

1шт.

99

25-104

NUT,1/4"-20, G5

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - flex tube, straight, Includes: Ref. 100 - 102

1шт.

100

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube, straight

1шт.

101

222-102

SLEEVE,1/4" Tube

1шт.

102

87017024

TUBE NUT,1/2"-24

NUT - flex fitting (1/4" tube)

1шт.

103

A27489

ELBOW UNION

NIPPLE - 90 degrees, pump to return hose

1шт.

104

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

105

L11662

HOSE

- oil return, Serial Range: pump-engine

1шт.

106

222-1005

NUT - flared fitting, Serial Range: tube-elbow

1шт.

107

L10265

TUBE - return, hose to elbow 0.5 mm OD x 2 mm L

1шт.

108

222-1035

ELBOW - male, 45 degrees

1шт.

109

A18550

PLUG

CONNECTOR -, Serial Range: elbow-engine

1шт.
