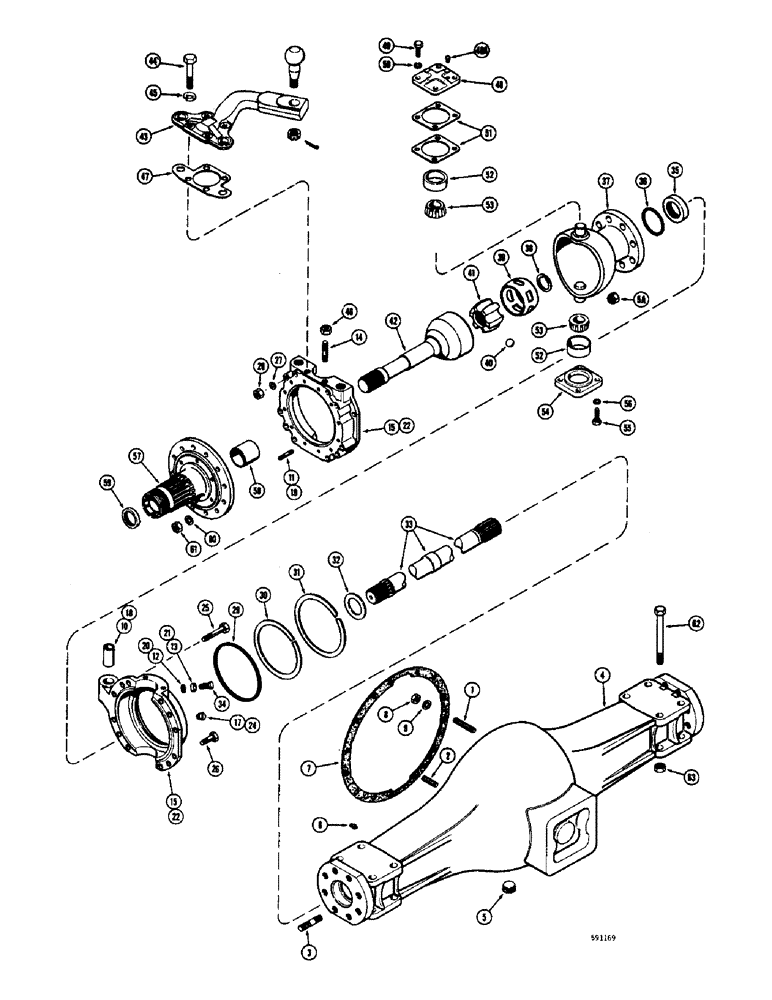

Запчасти Case W8C (184) - L15395 REAR STEERING AXLE, AXLE HOUSING AND STEERING (06) - POWER TRAIN

L15395

STEERING AXLE

AXLE ASSEMBLY - rear steering, complete (PS-101HX-54), Includes: Ref. 1 - 61

1шт.

A15748

HOUSING ASSEMBLY - rear axle, Includes: Ref. 1 - 5

1шт.

1

L30673

STUD

- differential carrier to housing (3" long)

4шт.

2

A13130

STUD

- differential carrier to housing (2-5/8" long)

10шт.

3

A16374

STUD

-, Serial Range: trunnion-housing

16шт.

REF. 3 THE STUD IS NOW A LITTLE SHORTER REQUIRES A DIFFERENT NUT USE 131-225

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - rear axle

1шт.

5

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, square socket head (1-1/4" NPT)

1шт.

5a

131-59

LOCK NUT,3/4"-16

NUT - hex., lock (3/4" - 16 NF)

16шт.

6

A12928

BREATHER

- oil, axle housing

1шт.

7

A12943

GASKET

- differential carrier to axle housing

1шт.

8

131-74

LOCK NUT,1/2"-20

NUT - hex., lock (1/2" - 20 NF)

14шт.

9

L30674

WASHER

- carrier to housing stud

14шт.

A15744

FLANGE AND COMPANION ASSEMBLY - steering, L.H., Includes: Ref. 10 - 17

1шт.

10

A12993

BUSHING

- tie rod yoke bolt

1шт.

11

A13120

STUD

- steering, Serial Range: knuckle-flange

12шт.

12

A15043

SHIM

- stop screw spacer

6шт.

13

A55764

SPACER - steering stop screw

1шт.

14

A15735

STUD - steering arm

2шт.

15

NSS

NOT SOLD SEPARAT

FLANGE AND COMPANION - steering, L.H.

1шт.

16

113-309

HHCS - 7/16" - 18 NC x 1-3/8" (Not illustrated)

1шт.

17

221-41

PLUG

- pipe, slotted headless (1/8" NPT)

1шт.

A15745

FLANGE

AND COMPANION ASSEMBLY - steering, R.H., Includes: Ref. 18 - 24

1шт.

18

A12993

BUSHING

- tie rod yoke bolt

1шт.

19

A13120

STUD

- steering, Serial Range: knuckle-flange

12шт.

20

A15043

SHIM

- stop screw spacer

6шт.

21

A55764

SPACER - steering stop screw

1шт.

22

NSS

NOT SOLD SEPARAT

FLANGE AND COMPANION - steering, R.H.

1шт.

23

113-309

HHCS - 7/16" - 14 NC x 1-3/8" (Not illustrated)

1шт.

24

221-41

PLUG

- pipe, slotted headless (1/8" NPT)

1шт.

25

114-311

BOLT

HHCS - 7/16" - 20 NF x 3"

20шт.

26

114-312

X

HHCS - 7/16" - 20 NF x 1-1/2"

4шт.

27

92-7

LOCK WASHER,7/16"

24шт.

28

129-530

NUT,7/16"-20, G8

24шт.

29

A15741

SEAL

- grease, trunnion socket

2шт.

30

A15742

RETAINER

- grease seal

2шт.

31

A15743

RING

SNAP RING - seal retainer

2шт.

32

A15746

WASHER

- guide, axle shaft

2шт.

33

A13007

SHAFT HOUSING

SHAFT - axle drive, rear

2шт.

34

A15078

SCREW - stop

1шт.

35

A12994

OIL SEAL

- oil, axle shaft

2шт.

36

A12995

O-RING,2 7" ID x 1/3" OD x 1/8"

SEAL - "O" ring, trunnion to housing

2шт.

37

A15385

SPARE PART

SOCKET - trunnion

2шт.

A13274

SHAFT

AND JOINT ASSEMBLY - universal, Includes: Ref. 38 - 42

2шт.

38

A13117

RING, SNAP

SNAP RING - axle shaft

1шт.

39

A13013

CAGE - ball

1шт.

40

A12982

BALL

- joint

6шт.

41

A13011

RACE

- inner

1шт.

42

A12981

SHAFT

- universal

1шт.

43

A40214

ARM - steering

1шт.

44

113-404

CAPSCREW

HHCS - 1/2" - 13 NC x 1-1/2"

4шт.

45

92-8

LOCK WASHER,1/2"

4шт.

46

131-187

LOCK NUT,7/8"-14, GB

NUT - hex., lock (7/8" - 14 NF)

2шт.

47

A15737

SHIM

- steering arm (.005")

2шт.

47

A15738

SHIM

- steering arm (.010")

2шт.

47

A15739

SHIM

- steering arm (.030")

1шт.

48

A13021

CAP - steering bearing, upper (R.H.)

1шт.

48a

A50096

VALVE

- relief, steering cap and arm

4шт.

49

113-404

CAPSCREW

HHCS - 1/2" - 13 NC x 1-1/2"

4шт.

50

92-8

LOCK WASHER,1/2"

4шт.

51

A12990

SHIM,.005" Thk

Bearing cap .005" Thk

6шт.

51

A12992

SHIM,.010" Thk

Bearing cap .010" Thk

6шт.

51

A12991

SHIM,.030" Thk

Bearing cap .030" Thk

3шт.

52

A13019

CUP ASSY.

CUP - steering bearing

4шт.

53

A13018

ROLLER BEARING,1.125" ID x 0.955"

CONE - steering bearing

4шт.

54

A13020

CAP

- steering bearing, lower

2шт.

55

113-404

CAPSCREW

HHCS - 1/2" - 13 NC x 1-1/2"

8шт.

56

92-8

LOCK WASHER,1/2"

8шт.

A55765

SPINDLE

ASSEMBLY - wheel hub, Includes: Ref. 57 - 59

2шт.

57

NSS

NOT SOLD SEPARAT

SPINDLE - wheel hub

1шт.

58

A13016

BUSHING

- spindle

1шт.

59

A15820

OIL SEAL

SEAL - oil, spindle

1шт.

60

A13136

RING

WASHER - spindle nut

24шт.

61

131-182

LOCK NUT,7/16"-20, GC

NUT - hex., lock (7/16" - 20 NF)

24шт.

62

116-901

BOLT,Hex, 1" - 14 x 9-1/2", Gr 8

HHCS - 1" - 14 NF x 9-1/2"

8шт.

63

131-188

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

8шт.

47

A15738

SHIM

- steering arm (.010")

2шт.
