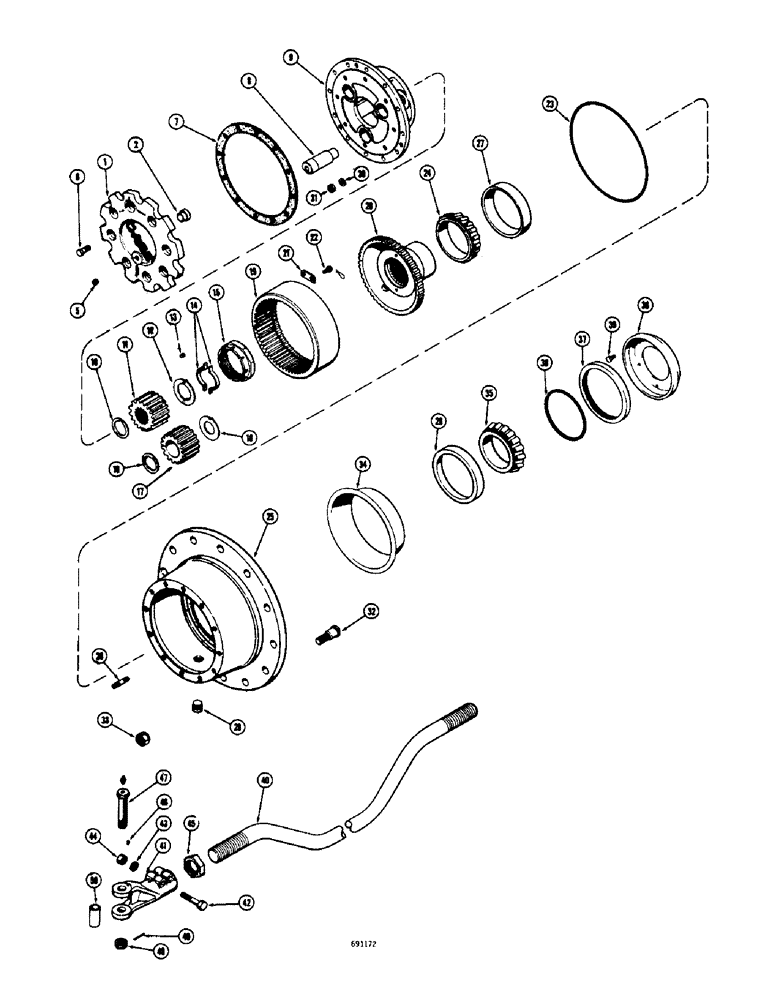

Запчасти Case W8C (182) - L15395 REAR STEERING AXLE, PLANETARY AND RELATED PARTS, TIE (06) - POWER TRAIN

L15395

STEERING AXLE

AXLE ASSEMBLY - rear steering, complete (PS-101HX-54), Includes: Ref. 1 - 50

1шт.

1

A12908

COVER

- planetary spider

2шт.

2

A12980

BUTTON

- thrust, drive shaft

2шт.

3

L30588

SHIM

- thrust button (.010")

1шт.

4

L30589

SHIM - thrust button (.015")

1шт.

5

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, oil level (1/4" NPT)

2шт.

6

L30675

SCREW

BOLT - spider cover

16шт.

7

A12910

GASKET,0.4mm Thk

-, Serial Range: cover-spider

2шт.

8

A40146

SHAFT

- planetary pinion

6шт.

9

A12909

U-JOINT SPIDER

SPIDER - planetary

2шт.

10

A12907

O-RING,1.74" ID x 0.1205"

RING - retaining, sun gear

2шт.

11

A12905

GEAR

- sun

2шт.

12

A13103

WASHER

- thrust, sun gear

2шт.

13

A13137

AXLE PIN

PIN - thrust washer

4шт.

14

A12953

RETAINER

LOCK - bearing nut

4шт.

15

A13104

BEARING LOCK NUT

NUT - hub bearing

2шт.

16

A12904

WASHER

- pinion thrust, outer

6шт.

17

A12901

GEAR

PINION - planetary

6шт.

18

A40145

WASHER

- pinion thrust, inner

6шт.

19

A12911

GEAR

- ring, pinion

2шт.

20

A12913

HUB CAP

HUB - ring gear

2шт.

21

A12914

LOCK ASSY

PLATE - lock

8шт.

22

G49000

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Drilled

- lock plate

16шт.

23

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

SEAL - "O" ring, spider to hub

2шт.

24

A12915

ROLLER BEARING,4.25" ID x 1.375"

CONE - bearing, outer

2шт.

L30223

HUB AND STUD ASSEMBLY - wheel, Includes: Ref. 25 - 28

2шт.

25

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

26

A7892

BEARING, CUP

CUP - bearing, inner

1шт.

27

A12916

BEARING CUP

CUP - bearing, outer

1шт.

28

L30951

STUD

-, Serial Range: spider-hub

12шт.

29

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - pipe, magnetic (3/4" NPT)

2шт.

30

92-8

LOCK WASHER,1/2"

24шт.

31

129-545

NUT,1/2"-20, G8

24шт.

32

A13112

STUD

-, Serial Range: wheel-hub

24шт.

33

A12522

WHEEL NUT

- wheel bolt

24шт.

34

A18266

DEFLECTOR

SLINGER - oil

2шт.

35

A40163

CONE

- bearing, inner

2шт.

A55766

OIL SEAL

RETAINER AND SEAL ASSEMBLY, Includes: Ref. 36 and 37

2шт.

36

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

37

A16653

OIL SEAL

SEAL - oil, hub

1шт.

38

A55763

O-RING,5.859" ID x 6.125" OD

RING - seal, retainer

1шт.

39

A40149

BOLT - retainer

12шт.

40

A13009

TIE-ROD

ROD - tie

1шт.

41

A13004

YOKE

- tie rod, L.H.

1шт.

41

A13005

YOKE

- tie rod, R.H.

1шт.

42

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

HHCS - 1/2" - 20 NF x 2-3/4", tie rod

4шт.

43

92-8

LOCK WASHER,1/2"

tie rod 1/2"

4шт.

44

129-545

NUT,1/2"-20, G8

Tie rod 1/2"-20, G8

4шт.

45

A13115

LOCK NUT

NUT - lock, special (Tie rod)

1шт.

46

A13111

AXLE PIN

PIN - yoke bolt, tie rod

2шт.

47

A13107

BOLT

- yoke, special (Includes 219-1 grease fitting), tie rod

2шт.

48

A13110

NUT

- yoke bolt, special, tie rod

2шт.

49

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Tie rod 1/8" x 1 1/2"

2шт.

50

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- yoke, tie rod

2шт.
