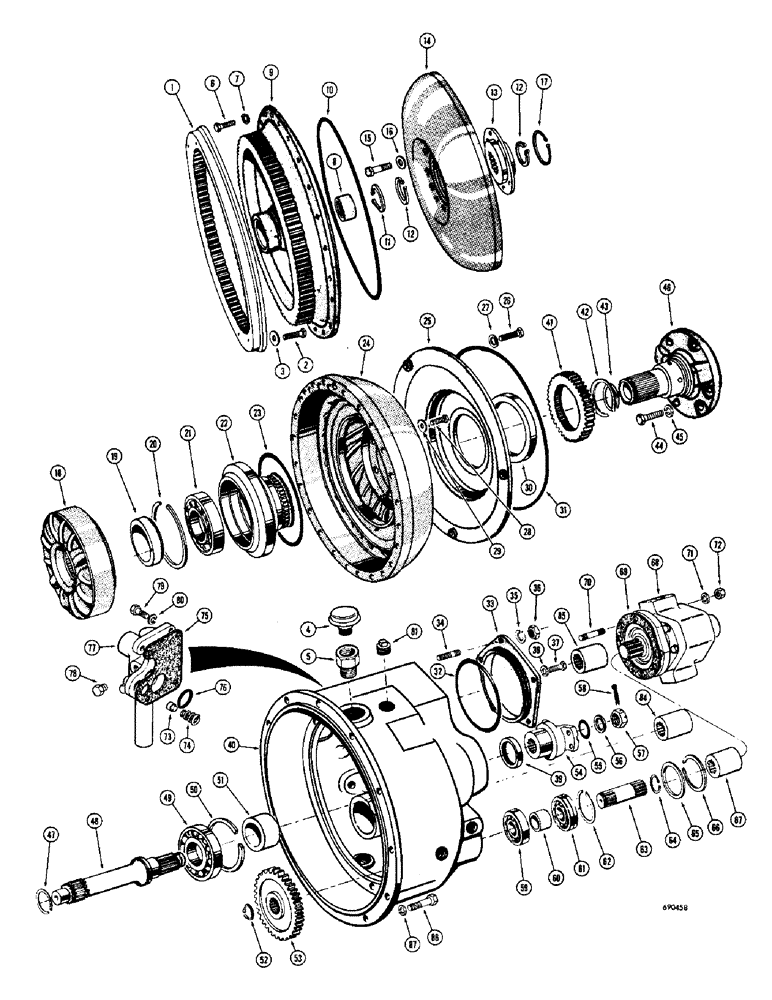

Запчасти Case W8C (166) - TORQUE CONVERTER (06) - POWER TRAIN

L10714

CONVERTER

- torque (Clark no. C273T-6), Includes: Ref. 1 - 83

1шт.

A17990

GEAR

RING GEAR ASSEMBLY - converter, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

RING GEAR - converter

1шт.

2

A17294

BOLT (SPREADER)

BOLT - ring, Serial Range: gear-flywheel

8шт.

3

A17295

WASHER

- special, ring, Serial Range: gear-flywheel

8шт.

4

A17947

BREATHER

- air, converter

1шт.

5

L30053

LOCK VALVE

VALVE - check, air breather

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

24шт.

7

92-6

LOCK WASHER,3/8"

24шт.

L30055

COVER

ASSEMBLY - impeller, Includes: Ref. 8 and 9

1шт.

8

A17986

ROLLER BEARING,0.9995" ID x 0.75"

BEARING - impeller cover

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - impeller

1шт.

10

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

SEAL - "O" ring, impeller to cover

1шт.

11

A18035

RING

- retainer, impeller cover bearing

1шт.

12

A17903

SNAP RING,#156, Ext

Ring, Snap, , turbine hub #156, Ext

2шт.

13

A18034

HUB

- turbine

1шт.

14

A17993

TURBINE

- converter

1шт.

15

A18033

SCREW

-, Serial Range: turbine-hub

8шт.

16

A18032

WASHER

-, Serial Range: turbine-hub

8шт.

17

A17987

RING

- retainer, stator

1шт.

18

L30684

MEMBER

STATOR - converter

1шт.

19

L30685

SPACER

- stator

1шт.

20

A17997

RING

- retainer, impeller bearing

1шт.

21

L30024

BALL BEARING

- impeller

1шт.

22

A18030

HUB

- impeller

1шт.

23

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

SEAL - "O" ring, impeller hub

1шт.

24

A18031

HUB

IMPELLER - converter

1шт.

25

A18029

DEFLECTOR

BAFFLE - oil

1шт.

26

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

L30051

BOLT (SPREADER)

BOLT - special, Serial Range: impeller-hub

8шт.

29

A17999

WASHER

- special, Serial Range: impeller-hub

8шт.

30

A18000

OIL SEAL

- oil, baffle

1шт.

31

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

SEAL - "O" ring, baffle

1шт.

32

A18842

O-RING,0.139" Thk x 5.359" ID, -253, Cl 5, 75 Duro

SEAL - "O" ring, offset cover

1шт.

33

A18007

COVER - drive hole, offset

1шт.

34

A18008

STUD

-, Serial Range: cover-housing

2шт.

35

92-7

LOCK WASHER,7/16"

2шт.

36

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex., jam (7/16" - 20 NF)

2шт.

37

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

3шт.

38

92-7

LOCK WASHER,7/16"

3шт.

L30320

KIT

HOUSING ASSEMBLY - converter, Includes: Ref. 39 and 40

1шт.

39

L30014

OIL SEAL

- oil, converter housing

1шт.

40

NSS

NOT SOLD SEPARAT

HOUSING - converter

1шт.

41

A18001

GEAR

- impeller hub

1шт.

42

A18009

RING

- snap, hub gear

1шт.

43

A18011

RING

- oil seal, impeller hub

1шт.

44

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

45

92-8

LOCK WASHER,1/2"

6шт.

46

A18015

SUPPORT

- stator

1шт.

47

A18012

RING,Locking, 54.74mm ID x 60.33mm OD x 3.15mm Thk

- oil seal, output shaft

1шт.

48

A18014

SHAFT

- output, converter

1шт.

49

A30907

BEARING

- output shaft

1шт.

50

A17997

RING

- snap, output shaft bearing

1шт.

51

A18013

SPACER

- output flange

1шт.

52

A8218

SNAP RING,#118, Ext

Ring, Snap, , pump drive gear #118, Ext

3шт.

53

A18027

GEAR

- pump drive

3шт.

54

A17939

FLANGE

- output shaft

1шт.

55

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, output flange

1шт.

56

A17938

WASHER

- output flange

1шт.

57

A17926

FLANGE NUT

- output flange

1шт.

58

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

59

A18026

ROLLER BEARING,1.1807" ID x 2.4409" OD x 0.6299"

- pump shaft, rear

3шт.

60

A18025

SPACER

- pump shaft bearing

3шт.

61

A17998

BALL BEARING,1.1807" ID x 2.4409" OD x 0.6299"

- pump shaft, front

3шт.

62

A18023

RING

- locating, front bearing

3шт.

63

A18017

SHAFT

- drive, pump

3шт.

64

A18024

RING, SNAP

RING - snap, front bearing

3шт.

65

A18022

WASHER

- pump shaft

3шт.

66

A18021

RING

- snap, front bearing

3шт.

67

A18020

ADAPTER

COUPLING - drive shaft to converter pump

1шт.

68

L30054

PUMP

- converter charging (Parts list Figure 170)

1шт.

69

A18019

GASKET

- pump to converter housing

1шт.

70

A18018

STUD - pump mounting

6шт.

71

92-6

LOCK WASHER,3/8"

6шт.

72

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. (3/8" - 24 NF)

6шт.

73

A18003

PLUNGER

- regulating valve

1шт.

74

A18004

SPRING

- regulating valve

1шт.

75

A18006

GASKET

- regulating valve to converter housing

1шт.

76

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, valve to housing

1шт.

77

L30323

KIT

VALVE - pressure regulating, converter (Parts list Figure 172)

1шт.

78

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, hex. head (1/8" NPT)

2шт.

79

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

80

92-6

LOCK WASHER,3/8"

4шт.

81

221-6

X,Sq Hd, 1"-11 1/2 NPTF

PLUG - pipe, square head (1" NPT)

4шт.

82

221-651

PLUG,Hex Hd, 1/8"-27

- pipe, hex. head (1/8" NPT) Not illustrated

2шт.

83

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, hex. socket head (1/2" NPT) Not illustrated

1шт.

84

A17292

COUPLING

- drive, steering pump

1шт.

85

A17293

SLEEVE

COUPLING - drive, equipment pump

1шт.

86

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

87

92-6

LOCK WASHER,3/8"

12шт.

52

A8218

SNAP RING,#118, Ext

Ring, Snap, , pump drive gear #118, Ext

3шт.
