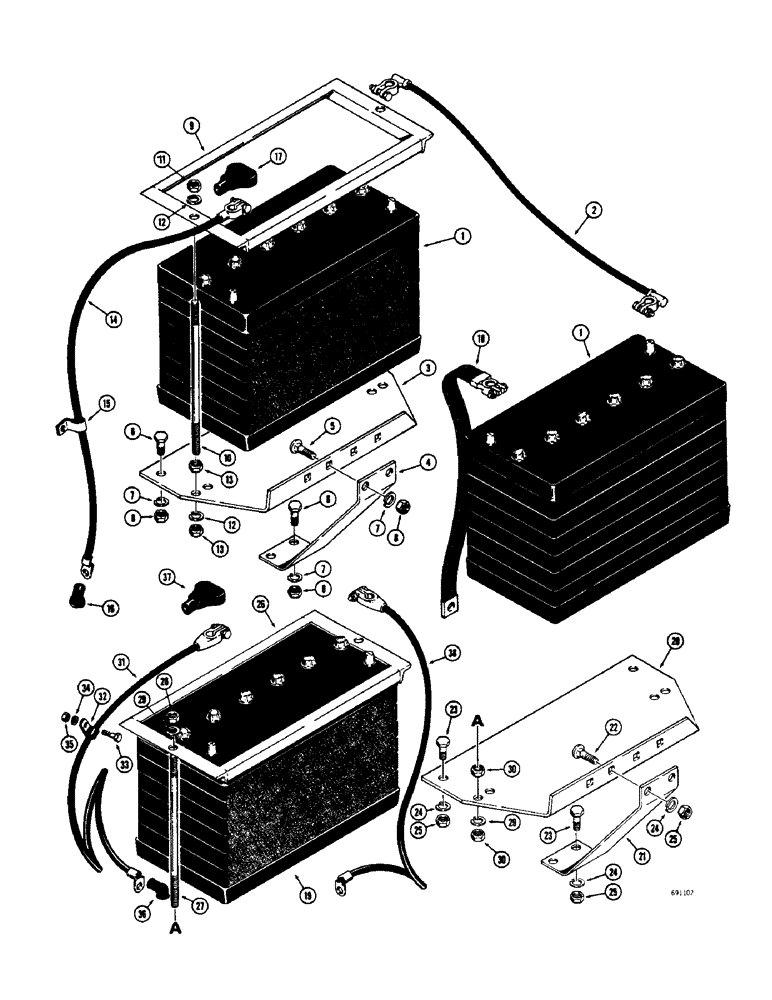

Запчасти Case W8C (084) - BATTERIES AND CABLES, DIESEL MODELS ONLY, GAS MODELS ONLY (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- electrical, 12 volt

2шт.

2

A18926

CABLE

- jumper (18" long)

1шт.

3

A17123

SUPPORT - battery

2шт.

4

A18837

BRACE - battery support

2шт.

5

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

8шт.

7

92-6

LOCK WASHER,3/8"

12шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

12шт.

9

A18834

FRAME - battery holddown

2шт.

10

A12357

STUD

BOLT - battery holddown

4шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

12

92-6

LOCK WASHER,3/8"

8шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

8шт.

14

A18925

CABLE - positive terminal to solenoid (38" long)

1шт.

15

A27041

CLIP - positive terminal battery cable

1шт.

16

A21753

CAP

COVER - solenoid terminal

1шт.

17

A27072

COVER

- battery positive terminal

2шт.

18

A27069

CABLE

- negative terminal to gound (15" long)

1шт.

19

A38411

DRY BATTERY

- electrical, 12 volt, gas models only

1шт.

20

A17123

SUPPORT - battery, gas models only

1шт.

21

A18837

BRACE - battery support, gas models only

1шт.

22

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Gas models only Short NK, 3/8"-16 x 1", G2

2шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", gas models only

4шт.

24

92-6

LOCK WASHER,3/8"

gas models only 3/8"

6шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), gas models only

6шт.

26

A18834

FRAME - battery holddown, gas models only

1шт.

27

A12357

STUD

BOLT - battery holddown, gas models only

2шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), gas models only

2шт.

29

92-6

LOCK WASHER,3/8"

gas models only 3/8"

4шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF), gas models only

4шт.

31

L11392

CABLE

- positive terminal to solenoid (35" long), gas models only

1шт.

32

49836

CLAMP

CLIP - positive terminal cable to chassis, gas models only

1шт.

33

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Gas models only Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Gas models only 1/2"

1шт.

35

129-105

NUT,Hex, 1/2" - 13, Gr 5

Gas models only 1/2"-13, G5

1шт.

36

A21753

CAP

COVER - solenoid terminal, gas models only

1шт.

37

A27072

COVER

- battery positive terminal, gas models only

1шт.

38

L11393

CABLE

- negative terminal to ground (36" long), gas models only

1шт.
