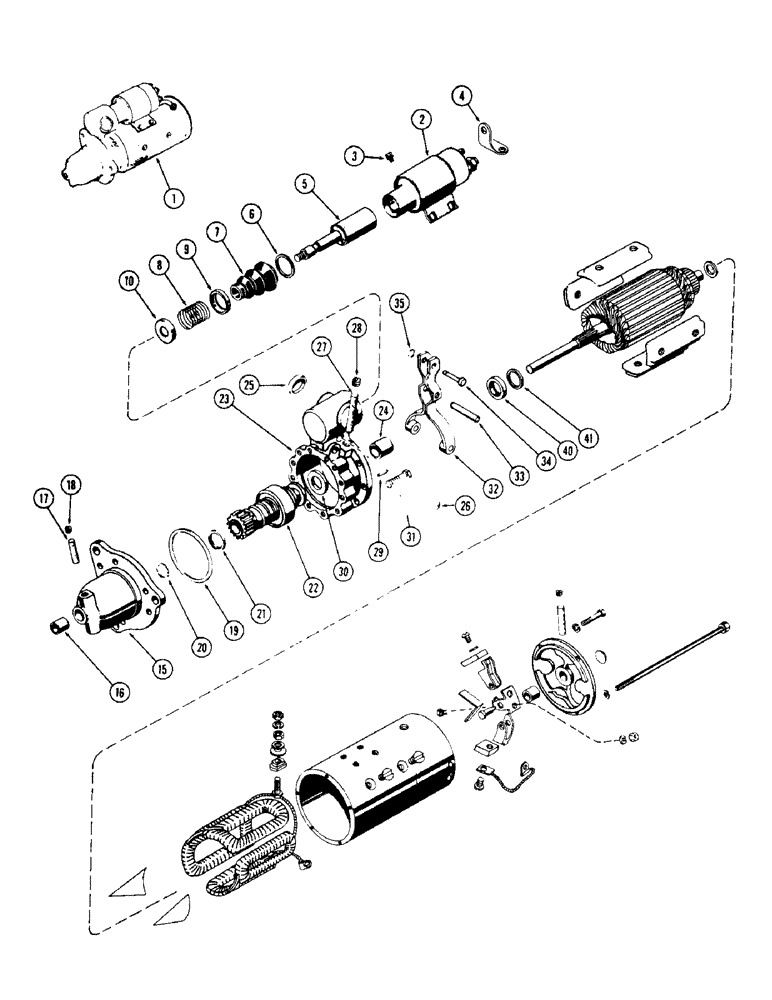

Запчасти Case W8C (054) - A20633 STARTER, (377) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A20633

STARTER MOTOR

STARTER ASSY. (Delco #1113111), Includes: Ref. 1 - 41 and Ref. 42 - 73 on figure 56

1шт.

1

AR20633

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC20633

CORE-STARTER

Return Part Number

1шт.

2

A40461

IGNITION SWITCH

SWITCH - solenoid (Repairs Figure 54)

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW - solenoid attaching

4шт.

4

R15068

CONNECTOR - solenoid to field terminal

1шт.

5

A25394

PLUNGER

PLUNGER - solenoid switch

1шт.

6

A42008

WASHER

WASHER - retainer

1шт.

7

A42308

BOOT

BOOT - plunger

1шт.

8

A41242

SPRING

SPRING - plunger

1шт.

9

R21572

RETAINER

RETAINER - inner, plunger spring

1шт.

10

R21571

RETAINER

RETAINER - outer, plunger spring

1шт.

15

A25341

SPARE PART HOUSING ASSY. - drive end, Includes: Ref. 16 - 18

1шт.

16

A40868

BUSHING

BUSHING - armature shaft

1шт.

17

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

18

221-1041

PLUG

PLUG - pipe, 1/8" slotted hd.

1шт.

19

A41508

GASKET

GASKET - drive housing to lever housing

1шт.

20

R15048

RING

RING - snap, stop collar

1шт.

21

R15049

COLLAR

COLLAR - stop, drive pinion

1шт.

22

A25338

DRIVE

DRIVE ASSY. - starter

1шт.

22

87421542

REMAN-STARTER DRIVE

Drive Assy, Starter

1шт.

22

87421543

CORE-STARTER

Return Part Number

1шт.

23

A25405

HOUSING

HOUSING ASSY. - lever, Includes: Ref. 24 - 28

1шт.

24

A40944

BUSHING

BUSHING - housing (47/64 x 57/64 x 3/4")

1шт.

25

A42013

PLUG

PLUG - housing (13/16" expansion type)

2шт.

26

41-1008

PLUG,Cup, 1/2"

PLUG - housing (1/2" expansion type)

2шт.

27

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG - pipe

1шт.

29

R15041

SPARE PART PIN - dowel, lever housing

1шт.

30

R15043

WASHER

WASHER - brake, drive assy.

1шт.

31

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

BOLT - lever housing to drive housing

4шт.

32

A25398

LEVER

LEVER - shifter, drive assy.

1шт.

33

A25402

STUD

STUD - pivot, shift lever

1шт.

34

A25400

PIN

PIN -, Serial Range: lever-plunger

1шт.

35

A25406

OIL SEAL

RING - retaining, lever pin

1шт.

40

A25407

OIL SEAL

SEAL - oil, armature shaft

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - spacer, armature & lever hsg.

1шт.
