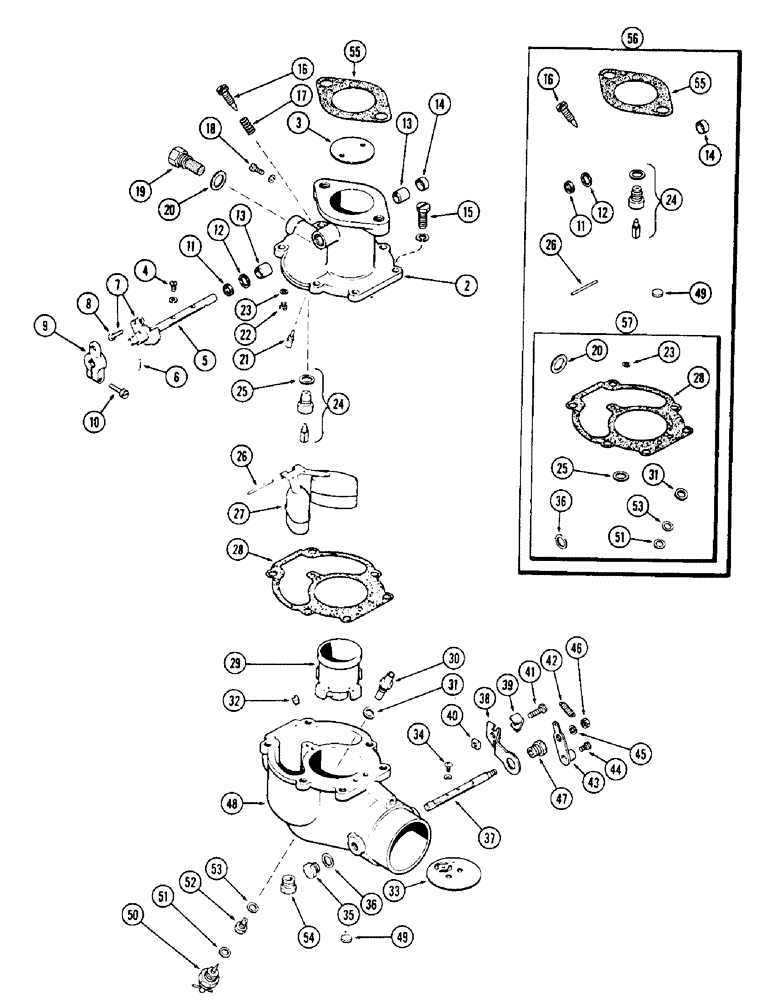

Запчасти Case W8C (048) - A24552 CARBURETOR, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

A24552

CARBURETOR ASSY. (Zenith #12863), Includes: Ref. 2 - 55

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A24552)

1шт.

3

A41359

PLATE - throttle

1шт.

4

A24888

SCREW - throttle plate

2шт.

5

A40009

SHAFT - throttle plate

1шт.

6

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Stop lever 3/32" x 7/16", Slotted

1шт.

7

A24886

LEVER ASSY. - stop, throttle shaft, Includes: Ref. 8

1шт.

8

B51581

SCREW - stop

1шт.

9

A40010

LEVER - clamp, throttle shaft

1шт.

10

B51584

SCREW - clamp

1шт.

11

A40008

RETAINER - packing, throttle shaft

1шт.

Part of carburetor repair kit P/N A24905

1шт.

12

A40007

SEAL

- throttle shaft

1шт.

Part of carburetor repair kit P/N A24905

1шт.

13

B51497

BUSHING

- throttle shaft

2шт.

14

B51438

PLUG

- throttle shaft hole

1шт.

Part of carburetor repair kit P/N A24905

1шт.

15

A24890

SCREW - throttle, Serial Range: body-bowl

6шт.

16

B51263

SCREW

- idle adjusting

1шт.

Part of carburetor repair kit P/N A24905

1шт.

17

B51407

SPRING

- idle screw

1шт.

18

B51631

SCREW - venturi

1шт.

19

A40319

FILTER - fuel inlet

1шт.

20

B51614

WASHER

- filter (See ref. 57)

1шт.

21

B51301

JET

- idle

1шт.

22

A24903

JET - economizer

1шт.

23

B51610

WASHER

- economizer jet (See ref. 57)

1шт.

24

A25577

VALVE

ASSY. - fuel, Includes: Ref. 25

1шт.

Part of carburetor repair kit P/N A24905

1шт.

25

B51618

WASHER

- valve seat (See ref. 57)

1шт.

26

B51429

AXLE

- float

1шт.

Part of carburetor repair kit P/N A24905

1шт.

27

A24891

FLOAT

ASSY. - fuel bowl

1шт.

28

A24889

GASKET

- throttle body to bowl (See ref. 57)

1шт.

29

A24898

VENTURI

1шт.

30

A24900

JET - main discharge

1шт.

31

A24901

WASHER - discharge jet (See ref. 57)

1шт.

32

A24902

VENT - well

1шт.

33

A24893

PLATE - choke

1шт.

34

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke, Serial Range: plate-shaft

2шт.

35

B51449

PLUG

- choke shaft hole

1шт.

36

B51618

WASHER

- plug (See ref. 57)

1шт.

37

A24894

SHAFT - choke

1шт.

38

A24895

BRACKET ASSY. - choke rod, Includes: Ref. 39 - 41

1шт.

39

B51402

CLAMP - choke rod

1шт.

40

129-76

SQUARE NUT,#8 - 36

- clamp scrwe (#10-24 sq.)

1шт.

41

B51581

SCREW - clamp

1шт.

42

B51412

SPRING

- return

1шт.

43

B51378

LEVER

- choke, Includes: Ref. 44

1шт.

44

B51579

SCREW - swivel

1шт.

45

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

46

129-36

NUT,#8-36

- choke lever ( hex.) #8-36

1шт.

47

B51455

SCREW - choke bracket

1шт.

48

A24892

BOWL ASSY. - fuel, Includes: Ref. 49

1шт.

49

B51442

FILTER

DISC - drain

1шт.

Part of carburetor repair kit P/N A24905

1шт.

50

A24897

JET

ADJUSTMENT ASSY. - main jet

1шт.

51

B51614

WASHER

- adjustment (See ref. 57)

1шт.

52

A24899

JET

- main

1шт.

53

B51624

WASHER

- main jet (See ref. 57)

1шт.

54

B51541

PLUG

- drain

1шт.

55

A27776

GASKET

-, Serial Range: carb.-manifold

1шт.

Part of carburetor repair kit P/N A24905

1шт.

56

A24905

KIT

REPAIR KIT - carburetor, Includes: Ref. 11, 12, 14, 16, 24, 26, 49, 55, and 57

1шт.

57

A24904

KIT

GASKET KIT (Incl. ref. 20, 23, 25, 28, 31, 36, 51 & 53)

1шт.

Part of carburetor repair kit P/N A24905

1шт.
