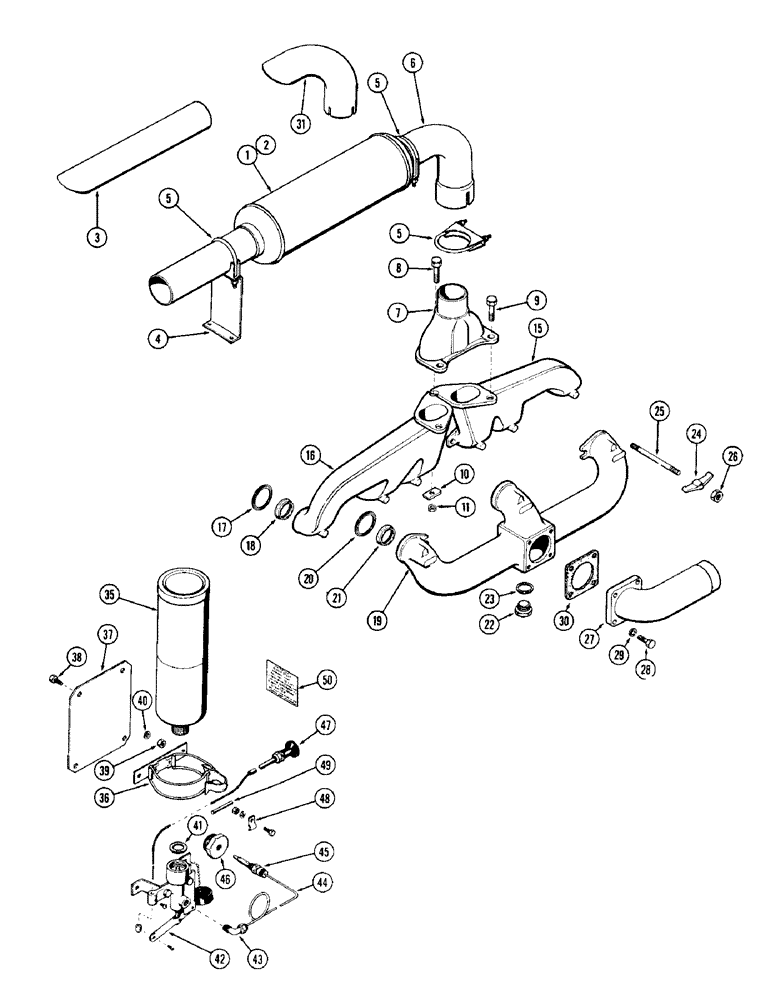

Запчасти Case W8C (008) - MANIFOLD AND MUFFLER, (401) DIESEL ENGINE, STARTING AID KIT (02) - ENGINE

1

A24103

MUFFLER

- exhaust (See L10224)

1шт.

2

L10224

MUFFLER

- exhaust (Spark arresting type)

1шт.

3

L10225

EXHAUST SYSTEM PIPE

PIPE - tall (w/L10224 only)

1шт.

4

A19087

BRACKET

- rear support, muffler

1шт.

5

A27115

CLAMP

- muffler & elbow

3шт.

6

A19102

ELBOW UNION

ELBOW -, Serial Range: manifold-muffler

1шт.

7

A11372

ELBOW

HOUSING - exhaust stack

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

10

A27868

CLAMP

- exhaust stack

1шт.

11

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

15

A24979

MANIFOLD

- front, exhaust

1шт.

16

A24980

MANIFOLD

- rear, exhaust

1шт.

17

A11889

GASKET

- exhaust, manifold

6шт.

18

A21648

CAP

FERRULE - exhaust manifold

6шт.

19

A20913

MANIFOLD - intake

1шт.

20

A11888

MANIFOLD GASKET

- intake manifold

3шт.

21

A21383

CAP

FERRULE - intake manifold

3шт.

22

A20917

PLUG

- heater opening, intake manifold

1шт.

23

A20916

MANIFOLD GASKET

GASKET - plug, intake manifold

1шт.

24

A24368

CLAMP

-, Serial Range: manifold-head

6шт.

25

A27911

STUD

- manifold clamp (7/16" N.C. - N.F. x 6")

6шт.

26

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

6шт.

27

A20914

ELBOW - intake manifold

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

A20915

GASKET

- elbow to intake manifold

1шт.

31

A19954

ELBOW UNION

ELBOW - muffler (w/backhoe)

1шт.

35

L30187

CYLINDER - starting fuel, starting aid kit

1шт.

36

L30183

BRACKET

CLAMP ASSY. - cylinder, starting aid kit

1шт.

37

L10282

PLATE - mounting, cylinder, starting aid kit

1шт.

38

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Starting aid kit Hex, 1/4"-20 x 1 1/4", G5

4шт.

39

25-104

NUT,1/4"-20, G5

Starting aid kit 1/4"-20, G5

4шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Starting aid kit 1/4"

4шт.

41

L30188

GASKET

- clyinder to valve, starting aid kit

1шт.

42

L30180

BODY

VALVE ASSY. - starting fuel, starting aid kit

1шт.

43

L30181

ELBOW - injection tube, starting aid kit

1шт.

44

L30319

TUBE - injection (24"), starting aid kit

1шт.

45

L30185

FITTING

- tube to manifold, starting aid kit

1шт.

46

L10283

PLUG

- adapter, fitting to manifold, starting aid kit

1шт.

47

L30182

CABLE - valve actuator (60"), starting aid kit

1шт.

48

A12454

CLIP

- cable, starting aid kit

1шт.

49

A12484

LOOM - clip to cable, starting aid kit

1шт.

50

L30184

DECAL - instruction (On instrument panel), starting aid kit

1шт.
