(208) - FORK LIFT ATTACHMENT

Запчасти Case W8C (208) - FORK LIFT ATTACHMENT (88) - ACCESSORIES

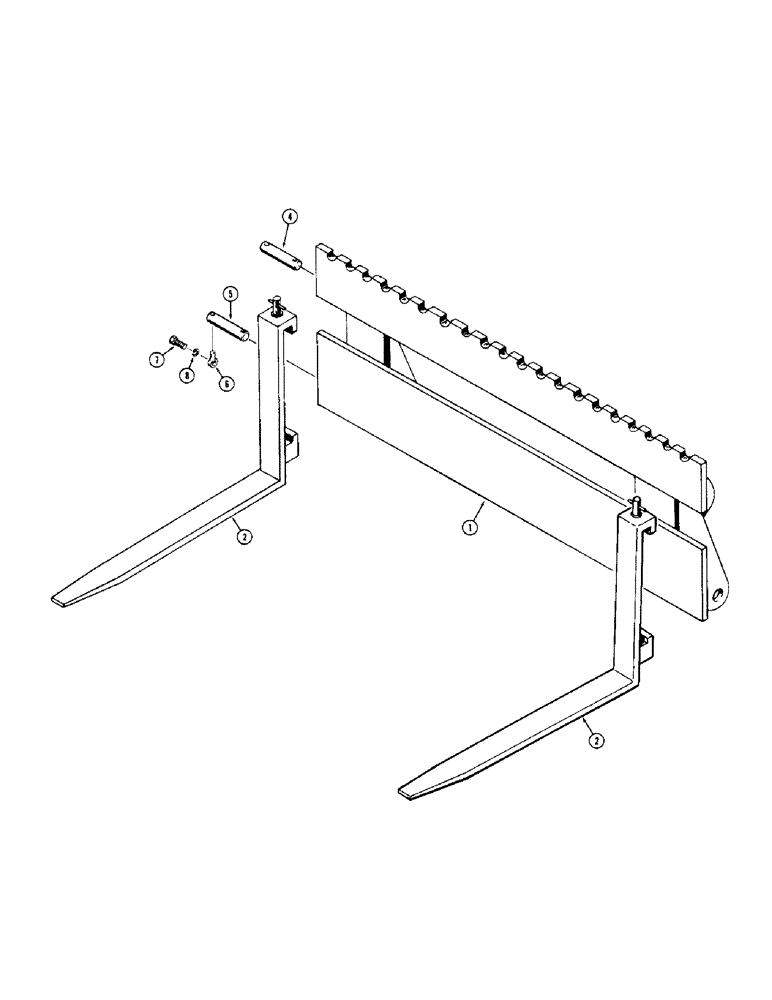

Схема запчастей Case W8C - (208) - FORK LIFT ATTACHMENT (88) - ACCESSORIES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A15721

FRAME - mounting, pallet fork

1шт.

2

L18014

FORK - pallet

2шт.

3

A12071

WASHER

SPACER - mounting pin (Not illustrated)

1шт.

4

A12140

PIN

- frame mounting (Upper)

2шт.

5

A15405

PIN - frame mounting (Lower)

2шт.

6

A10615

LOCK ASSY

LOCK - pin retainer

4шт.

7

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.
