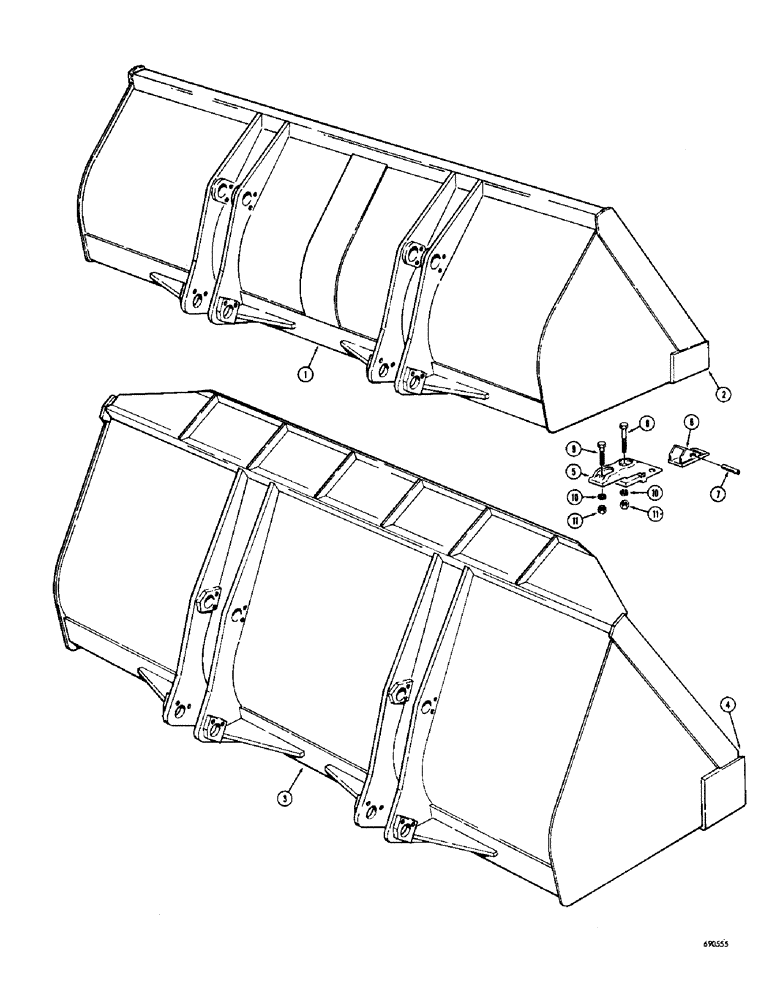

Запчасти Case W8C (200) - LOADER BUCKETS (OPTIONAL TYPES), 1-1/2 CUBIC YARD LOADER BUCKETS (MACHINERY ITEM) (88) - ACCESSORIES

1

L19472

BUCKET - loader, 1-1/2 cu. yd. (Standard) Machinery item, Includes: Ref. 2

1шт.

2

A18590

CUTTING EDGE - bucket

1шт.

1

L19471

BUCKET - loader, 1-1/2 cu. yd. (Heavy duty) Machinery item, Includes: Ref. 2

1шт.

2

A56284

CUTTING EDGE - bucket

1шт.

3

L19485

BUCKET - loader, 1-3/4 cu. yd. (92" wide) Machinery item, Includes: Ref. 4

1шт.

4

L13913

EDGE

CUTTING EDGE - bucket, 1-3/4 cubic yard loader buckets, machinery item

1шт.

3

L19486

BUCKET - loader, 2 cu. yd. (92" wide) Machinery item, Includes: Ref. 4

1шт.

4

L13913

EDGE

CUTTING EDGE - bucket, 2 cubic yard loader buckets, machinery items

1шт.

3

L19469

BUCKET - loader, 2 cu. yd. (96" wide) Machinery item, Includes: Ref. 4

1шт.

4

L13928

CUTTING EDGE

- bucket, 2 cubic yard loader buckets, (machinery item)

1шт.

3

L19468

BUCKET - loader, 3 cu. yd. (110" wide) Machinery item, Includes: Ref. 4

1шт.

4

A19010

BLADE

CUTTING EDGE - bucket, 3 cubic yard loader bucket, machinery item

1шт.

L10085

BUCKET TOOTH

TOOTH ASSEMBLY - bucket, Includes: Ref. 5 - 7

9шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth (optional on L19471 bucket only)

1шт.

6

D39090

POINT

- tooth, bucket teeth (optional on L19471 bucket only)

1шт.

7

D39448

PIN

FLEX PIN - point, bucket teeth (optional on L19471 bucket only)

1шт.

8

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

HHCS - 5/8" - 11 NC x 3-3/4", bucket teeth (optional on L19471 buckets only)

9шт.

9

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Bucket teeth (optional on L19471 buckets only) Hex, 5/8"-11 x 3 1/4", G5

9шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth (optional on L19471 buckets only) 5/8"

18шт.

11

25-1010

NUT,5/8"-11, G5

Bucket teeth (optional on L19471 bucket only) 5/8"-11, G5

18шт.

L16678

TOOTH

ASSEMBLY - bucket, Includes: Ref. 5 - 7

9шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth (optional on L19485, L19486 and L19469 buckets only)

1шт.

6

D39093

TOOTH

POINT - tooth, bucket teeth (optional on L19485, L19486 and L19469 buckets only)

1шт.

7

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth (optional on L19485, L19486 and L19469 buckets only)

1шт.

8

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Bucket teeth (optional on L19485, L19486 and L19469 buckets only) Hex, 5/8"-11 x 3", G5

9шт.

9

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Bucket teeth (optional on L19485, L19486 and L19469 buckets only) Hex, 5/8"-11 x 2 1/4", G5

9шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth (optional on L19485, L19486 and L19469 buckets only) 5/8"

18шт.

11

25-1010

NUT,5/8"-11, G5

Bucket teeth (optional on L19485, L19486 and L19469 buckets only) 5/8"-11, G5

18шт.
