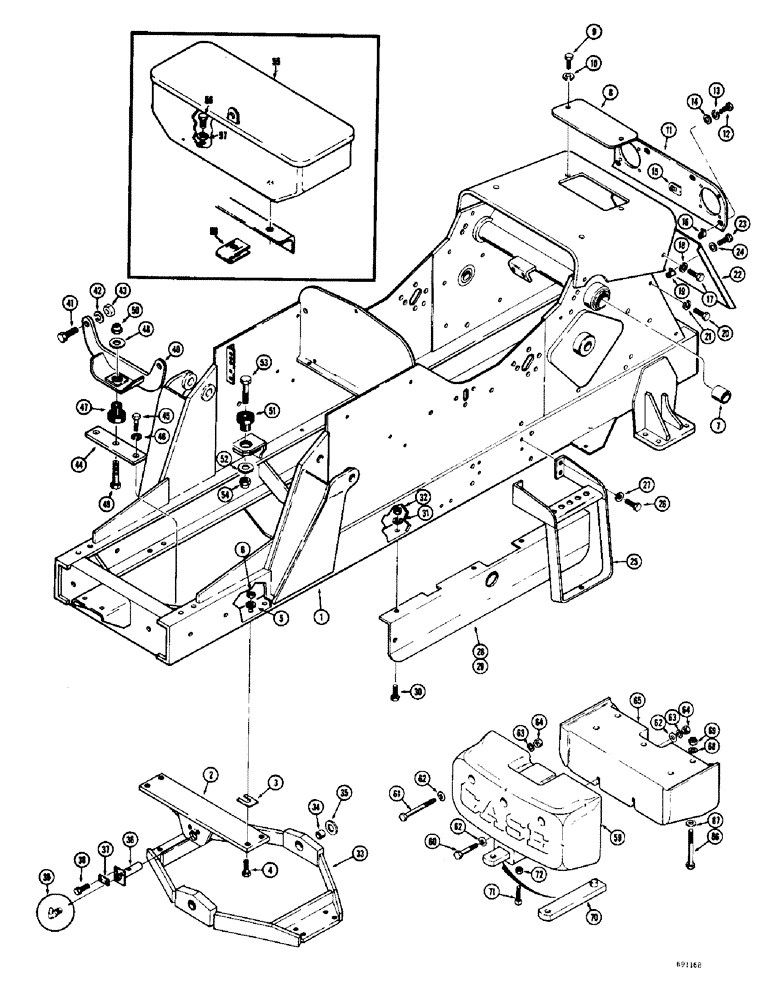

Запчасти Case W8C (138) - CHASSIS, ENGINE MOUNTS AND RELATED PARTS (09) - CHASSIS

55

L10218

BOX - tool

1шт.

56

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

57

195-521

WASHER,5/16", SAE

- plain (5/16") Zinc plated)

2шт.

58

131-134

SPRING NUT

- Tinnerman (5/16" - 18 NC) Zinc plated

2шт.

59

A12252

COUNTERWEIGHT - rear (Rear portion)

1шт.

60

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

61

15-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

HHCS - 3/4" - 10 NC x 8"

3шт.

62

195-45

WASHER,3/4"

7шт.

63

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

5шт.

64

25-1012

NUT,3/4"-10, G5

5шт.

65

A12253

COUNTERWEIGHT - rear (Front portion)

1шт.

66

15-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

HHCS - 3/4" - 10 NC x 8"

5шт.

67

195-45

WASHER,3/4"

5шт.

68

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

5шт.

69

25-1012

NUT,3/4"-10, G5

5шт.

70

A12249

DRAWBAR - rear

1шт.

71

85-1048

SET SCREW,Sq Hd, 5/8"-11 x 3"

SCREW - set, square head (5/8" - 11 NC x 3")

1шт.

72

25-1010

NUT,5/8"-11, G5

1шт.
