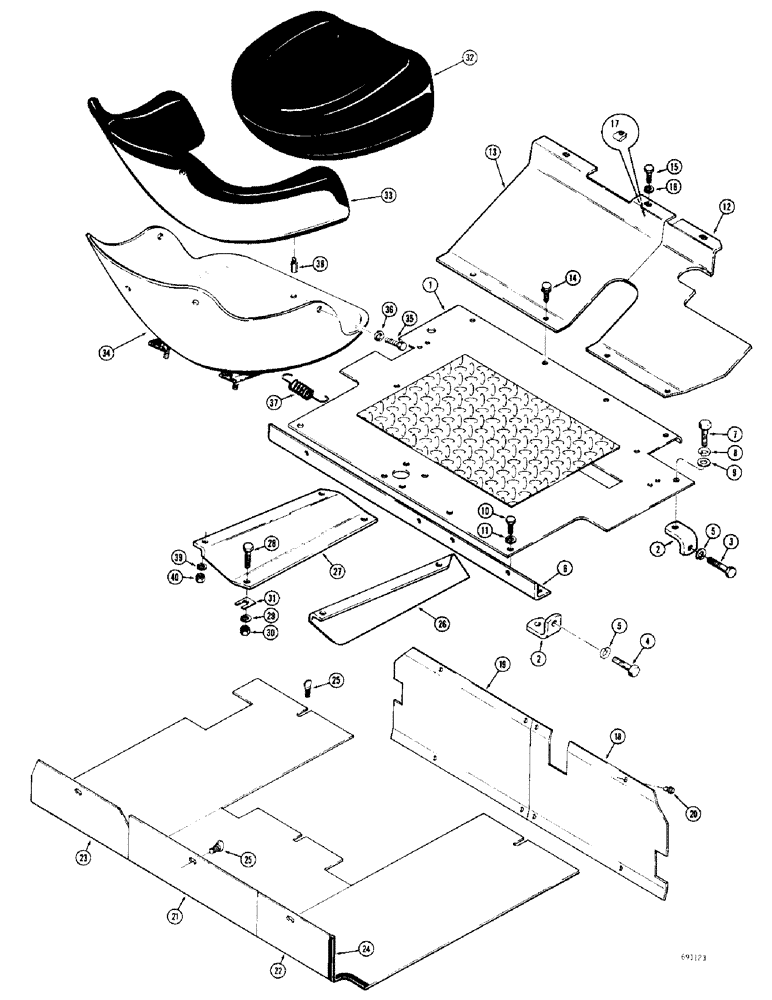

Запчасти Case W8C (134) - PLATFORM, FLOOR PLATES AND SEAT (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
A18754
PLATE - platform
1шт.
2
A16828
SUPPORT
- platform and rear angle
4шт.
3
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
4
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
5
92-6
LOCK WASHER,3/8"
4шт.
6
A18762
ANGLE - platform support, rear
1шт.
7
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
4шт.
8
92-6
LOCK WASHER,3/8"
4шт.
9
95-6
WASHER,3/8"
- plain () 3/8"
4шт.
10
13-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
3шт.
11
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
12
L15326
PLATE - floor, front (R.H.)
1шт.
13
A18753
PLATE - floor, front (L.H.)
1шт.
14
187-1009
BOLT
SCREW - self-tapping (1/4" - 20 NC x 3/8")
4шт.
15
13-48
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
3шт.
16
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
18
A18760
PANEL - operator compartment, front (R.H.)
1шт.
19
A18761
PANEL - operator compartment, front (L.H.)
1шт.
20
187-1009
BOLT
SCREW - self-tapping (1/4" - 20 NC x 3/8")
8шт.
21
A18757
SHEET
PANEL - operator compartment, top (Center)
1шт.
22
A18750
PANEL
- operator compartment, top (R.H.)
1шт.
23
A18751
SHIELD
PANEL - operator compartment, top (L.H.)
1шт.
24
L13529
MOULDING - rubber
1шт.
26
A18826
BRACKET
SUPPORT - seat, R.H.
1шт.
27
A18827
BRACKET
SUPPORT - seat, L.H.
1шт.
28
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
29
92-5
LOCK WASHER,5/16"
4шт.
30
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
4шт.
31
A17197
SHIM
- seat, Serial Range: support-frame
6шт.
A17211
SEAT
ASSEMBLY - operator, Includes: Ref. 32 - 40
1шт.
32
A18407
CUSHION ASSY.
CUSHION - seat
1шт.
33
A18408
BACKREST
CUSHION - back rest
1шт.
34
NSS
NOT SOLD SEPARAT
SHELL - seat
1шт.
36
195-525
WASHER,3/8", SAE
- plain (3/8") Zinc plated
5шт.
37
L30533
VALVE SPRING
SPRING - adjusting
2шт.
38
L30534
X
PIN - cushion alignment
2шт.
39
92-5
LOCK WASHER,5/16"
4шт.
40
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
4шт.
