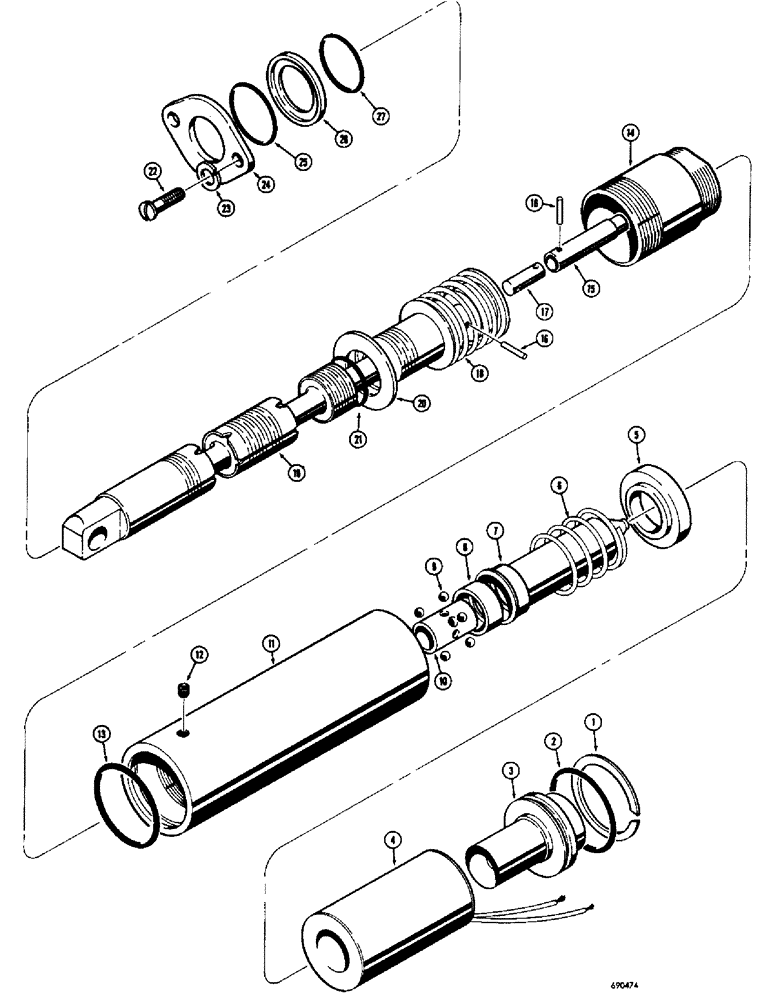

Запчасти Case W8C (232) - LOADER TILT SPOOLS DOUBLE ACTING WITH SOLENOID, USED ON GAS MODELS ONLY (08) - HYDRAULICS

L32368

PISTON

SPOOL ASSEMBLY - loader tilt (Color code - black or letter code - W) .99965" to .99980", Includes: Ref. 1 - 21

1шт.

L32369

SPOOL ASSEMBLY - loader tilt (Color code - blue or letter code - X) .99975" to .99990", Includes: Ref. 1 - 21

1шт.

L32370

SPOOL ASSEMBLY - loader tilt (Color code - yellow or letter code - Y) .99985" to 1.00000", Includes: Ref. 1 - 21

1шт.

L32371

SPOOL ASSEMBLY - loader tilt (Color code - green or letter code - Z) .99995" to 1.00010", Includes: Ref. 1 - 21

1шт.

1

L30654

RING, SNAP

SNAP RING - stop retaining

1шт.

2

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring, plunger stop at housing

1шт.

3

L31307

STOP

- solenoid, plunger

1шт.

4

L30652

COIL

- solenoid, 12 volt

1шт.

5

L31305

WASHER

- spring retaining

1шт.

6

L31308

SPRING

- detent

1шт.

7

L31306

PLUNGER

- solenoid

1шт.

8

L30647

CAM

- detent

1шт.

9

211-5

BALL,3/16" Dia

- detent, . 3/16" Dia

6шт.

10

L30645

RETAINER

- ball

1шт.

11

L31304

HOUSING

- solenoid

1шт.

12

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex. socket head (1/4" - 20 NC x 1/4")

1шт.

13

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

14

L32372

COVER ASSY

HOUSING - detent

1шт.

L32700

SPOOL

KIT - L32368 spool assembly only, Includes: Ref. 15 - 19

1шт.

L32701

KIT

SPOOL KIT - L32369 spool assembly only, Includes: Ref. 15 - 19

1шт.

L32702

KIT

SPOOL KIT - L32370 spool assembly only, Includes: Ref. 15 - 19

1шт.

L32703

SPOOL

KIT - L32371 spool assembly only, Includes: Ref. 15 - 19

1шт.

15

L32381

FILTER ASSY

DETENT BARREL - spool

1шт.

16

138-2012

PIN,1/8" x 1/2", Coiled

Link to spool and detent barrel 1/8" x 1/2", Coiled

2шт.

17

D33858

LINK

- spool to detent barrel

1шт.

18

A13182

VALVE SPRING

SPRING - centering

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - loader tilt

1шт.

20

A13166

WASHER

RETAINER - "O" ring

1шт.

21

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, spool at housing (Cap end)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt spool (Eye end), Includes: Ref. 22 - 27

1шт.

22

75-610

X

SCREW - round head machine (3/8" - 16 NC x 5/8")

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

A13169

PLATE - wiper retaining

1шт.

25

A13168

WIPER

- spool

1шт.

26

A13167

RETAINER

- "O" ring

1шт.

27

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, spool at housing (Eye end)

1шт.
