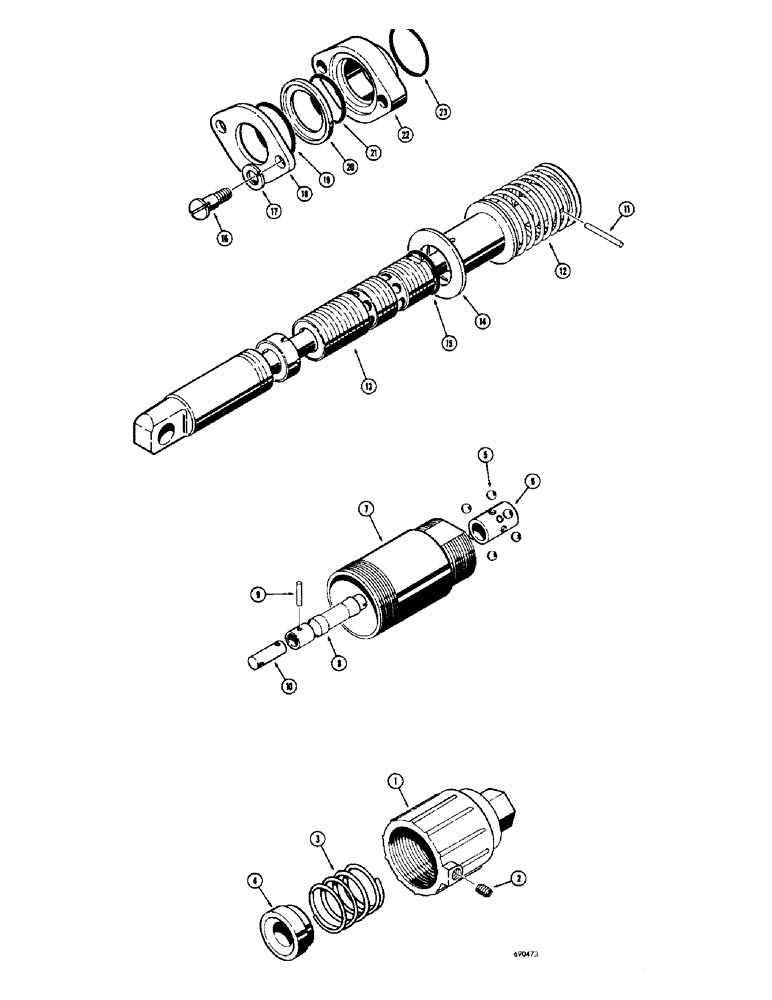

Запчасти Case W8C (230) - LOADER LIFT SPOOLS - FLOAT (08) - HYDRAULICS

L32375

SPOOL

ASSEMBLY - loader lift (Color code - black or letter code - W) .99965" - .99980", Includes: Ref. 1 - 15

1шт.

L32376

SPOOL

ASSEMBLY - loader lift (Color code - blue or letter code - X) .99975" - .99990", Includes: Ref. 1 - 15

1шт.

L32377

SPOOL

ASSEMBLY - loader lift (Color code - yellow or letter code - Y) .99985" - 1.00000", Includes: Ref. 1 - 15

1шт.

L32378

SPOOL

ASSEMBLY - loader lift (Color code - green or letter code - Z) .99995" - 1.00010", Includes: Ref. 1 - 15

1шт.

1

A16854

COVER

CAP - spool end

1шт.

2

A16855

SCREW

- set, cap retaining

1шт.

3

A16853

VALVE SPRING

SPRING - spool return

1шт.

4

A16852

RETAINER

- detent ball

1шт.

5

211-5

BALL,3/16" Dia

- detent

6шт.

6

A16848

SLEEVE CYLINDER

SLEEVE - detent

1шт.

7

A16850

CAP

- spool retainer

1шт.

L32704

KIT

SPOOL KIT - L32375 spool assembly only, Includes: Ref. 8 - 13

1шт.

L32705

KIT

SPOOL KIT - L32376 spool assembly only, Includes: Ref. 8 - 13

1шт.

L32706

KIT

SPOOL KIT - L32377 spool assembly only, Includes: Ref. 8 - 13

1шт.

L32707

SPOOL

KIT - L32378 spool assembly only, Includes: Ref. 8 - 13

1шт.

8

L32374

FILTER ASSY

BARREL - detent

1шт.

9

138-2012

PIN,1/8" x 1/2", Coiled

Barrel link, rear 1/8" x 1/2", Coiled

1шт.

10

D33858

LINK

- detent barrel

1шт.

11

138-2035

PIN,1/8" x 11/16", Coiled

Barrel link, front 1/8" x 11/16", Coiled

1шт.

12

A16847

SPRING

- centering, spool

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - loader lift

1шт.

14

A13166

WASHER

RETAINER - "O" ring

1шт.

15

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, spool at housing (Cap end)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool (Eye end), Includes: Ref. 16 - 23

1шт.

16

75-616

SCREW - machine, round head (3/8" - 16 NC x 1")

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

A13169

PLATE - cover, seal

1шт.

19

A13168

WIPER

SEAL - wiper, spool

1шт.

20

A13167

RETAINER

- "O" ring

1шт.

21

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, spool

1шт.

22

A13177

RETAINER - seal

1шт.

23

A18349

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring, Serial Range: retainer-housing

1шт.
