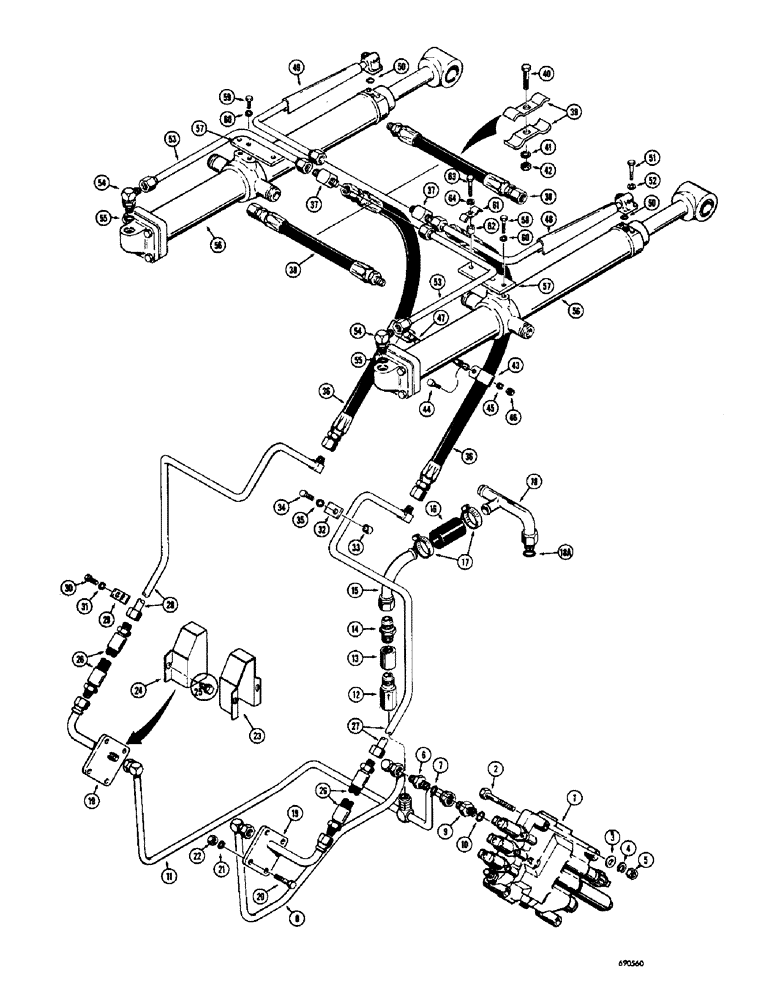

Запчасти Case W8C (214) - LOADER HYDRAULICS, TILT CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 224, 226 and 228 for proper valve)

1шт.

2

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

3

195-33

WASHER,1/2"

- plain () 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

6

A17646

CONNECTOR, ELEC

CONNECTOR - male, straight, Includes: Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

8

A19038

HOSE ASSY.

TUBE - valve to connector, R.H.

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

11

L15322

TUBE,1" DIA

- valve to connector, L.H.

1шт.

12

D31497

LOCK VALVE

VALVE - anti-cavitation

1шт.

13

221-1330

COUPLING

- pipe (3/4" NPT)

1шт.

14

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - coupling to tube

1шт.

15

L15324

TUBE,1" DIA x 5.31, 4" L

- adapter to hose

1шт.

16

L15325

HOSE

- tube to reservoir return

1шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

18

L15323

TUBE,1.25" OD x 9.6, 4.4" L

- return, valve to reservoir, Includes: Ref. 18A

1шт.

18a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

19

A19042

TUBE - special, tube to side plate

2шт.

20

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

21

92-8

LOCK WASHER,1/2"

8шт.

22

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

8шт.

23

A19660

SHIELD - tube connector, R.H.

1шт.

24

A19661

SHIELD - tube connector, L.H.

1шт.

25

187-1009

BOLT

SCREW - self-tapping (1/4" - 20 NC x 3/8")

4шт.

26

A17639

HOSE

- connector to intermediate tubes (24-1/4" long)

2шт.

27

L18718

TUBE,1" OD

- valve to tilt cylinders, rod end (R.H. intermediate)

1шт.

28

L18719

TUBE,1" OD

- valve to tilt cylinders, closed end (L.H. intermediate)

1шт.

29

A12308

CLAMP

- tube to lift arm

2шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

L18974

CLAMP - tube to lift arm

2шт.

33

D36524

BUSHING

SPACER - clamp

2шт.

34

13-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

L17543

HOSE ASSY.

HOSE - intermediate tube to tee (43" long)

2шт.

37

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

- tube to crossover hose

2шт.

38

L17544

HOSE

- crossover, tilt cylinder (23-1/4" long)

2шт.

39

A12332

CLAMP

- crossover hose

2шт.

40

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.

42

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

43

A17647

CLAMP

- hose, tilt cylinder

2шт.

44

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

45

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

46

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

47

A13242

O-RING

CHAIN - tie, hose

1шт.

48

L17125

TUBE

- tilt cylinder, rod end (R.H.)

1шт.

49

L17126

TUBE,17.8" L

- tilt cylinder, rod end (L.H.)

1шт.

50

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

51

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8" - 24 NF x 1-3/4"

4шт.

52

92-6

LOCK WASHER,3/8"

4шт.

53

L17122

TUBE,0.75" OD x 13, 6" L

- tilt cylinder, closed end

2шт.

54

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degrees, Incl. Ref. 55

2шт.

55

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

56

L17436

CYLINDER

- hydraulic, loader tilt (3-1/2" I.D. x 27-11/16" stroke) Parts list Figure 242

2шт.

57

L18649

PLATE ASSY.

PLATE - mounting, clamp

2шт.

58

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

59

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

60

92-5

LOCK WASHER,5/16"

4шт.

61

70724

CLAMP - tube

2шт.

62

D36040

BUSHING

SPACER - clamp

2шт.

63

13522

HHCS - 5/16" - 18 NC x 1-3/8"

2шт.

64

92-5

LOCK WASHER,5/16"

2шт.
