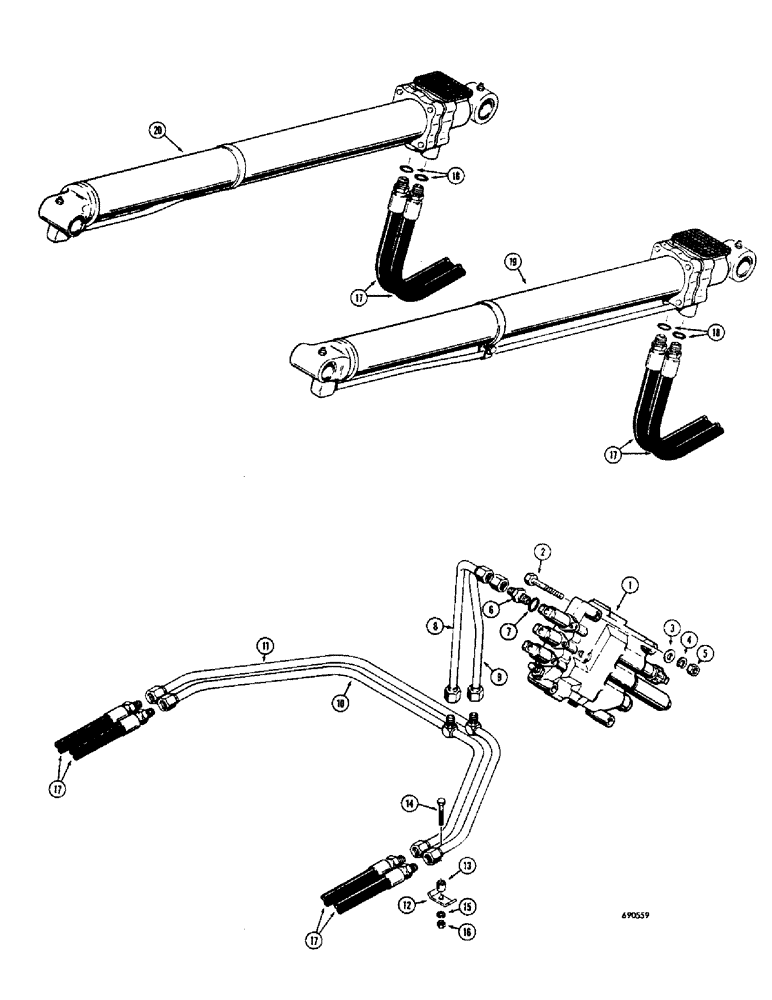

Запчасти Case W8C (212) - LOADER HYDRAULICS, LIFT CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 224, 226 and 228 for proper valve)

1шт.

2

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

3

195-33

WASHER,1/2"

- plain () 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

8

A19046

TUBE

- valve to inner manifold

1шт.

9

A19047

TUBE - valve to outer manifold

1шт.

10

A12327

TUBE

- manifold, lift cylinder (Inner)

1шт.

11

A12331

TUBE

- manifold, lift cylinder (Outer)

1шт.

12

A12332

CLAMP

- manifold tube

2шт.

13

A19048

SPACER - clamp

2шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

17

A19045

HYDRAULIC HOSE,0.63" ID x 30.00", SAE 100R2

- Manifold to lift cylinder, Includes Ref. 18 0.63" ID x 30.00", SAE 100R2

4шт.

18

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

19

A17882

CYLINDER - hydraulic, R.H. loader lift (5" I.D. x 36" stroke) Parts list Figure 240

1шт.

20

A17883

CYLINDER BLOCK

CYLINDER - hydraulic, L.H. loader lift (5" I.D. x 36" stroke) Parts list Figure 240

1шт.
