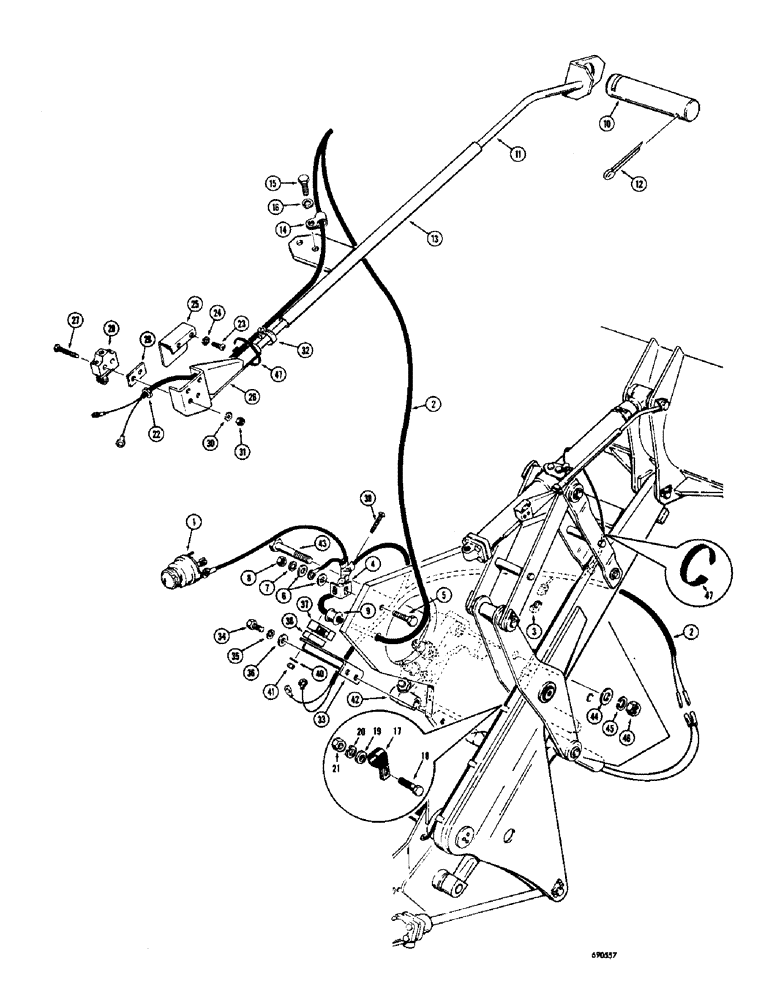

Запчасти Case W8C (206) - LOADER RETURN TO DIG PARTS (08) - HYDRAULICS

1

L17820

SWITCH

Electrical

1шт.

2

L19030

SPARE PART Wiring, Serial Range: return-dig

1шт.

3

L11760

DIODE

Switch protection

1шт.

4

A17270

SPARE PART Mounting, instrument panel

1шт.

5

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

6

95-4

WASHER,1/4"

2шт.

7

92-4

LOCK WASHER,1/4"

1шт.

8

25-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

9

L19023

GROMMET - wiring, Serial Range: harness-chassis

1шт.

10

A14105

PIN

Mounting, dig return rod

1шт.

11

L40475

ROD

Control, Serial Range: return-dig

1шт.

12

132-102

COTTER PIN,3/16" x 2 1/2"

1шт.

13

L40495

SPARE PART GUIDE - control rod

1шт.

14

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Harness to guide bracket

1шт.

15

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

49859

CLAMP

Harness to side plate

1шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19

195-25

WASHER,3/8"

1шт.

20

192-21

LOCK WASHER,3/8"

1шт.

21

25-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

22

49560

BAR

Limit switch box

1шт.

23

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

RHMS - #8 - 32 NC x 1/4" (Zinc plated)

2шт.

24

193-90

LOCK WASHER,Ext, #8

2шт.

25

L40570

COVER

Limit switch

1шт.

26

L40476

SUPPORT

BOX - limit switch mounting

1шт.

27

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

Machine

2шт.

28

D40921

SWITCH

Limit, at actuating rod

1шт.

29

L40470

SPACER

Switch

1шт.

30

193-89

LOCK WASHER,Ext-Int Tooth, #6

2шт.

31

129-15

NUT,#6-32

2шт.

32

G45175

CLAMP

Switch box to rod guide tube

1шт.

33

L16630

SUPPORT

BRACKET - switch mounting

1шт.

34

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

35

92-4

LOCK WASHER,1/4"

2шт.

36

95-4

WASHER,1/4"

2шт.

37

D40921

SWITCH

Limit

1шт.

38

L11524

SPARE PART Limit switch

1шт.

39

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

Machine

2шт.

40

193-89

LOCK WASHER,Ext-Int Tooth, #6

2шт.

41

129-15

NUT,#6-32

2шт.

42

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 224, 226 and 228 for proper valve)

1шт.

43

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

44

195-33

WASHER,1/2"

3шт.

45

92-8

LOCK WASHER,1/2"

3шт.

46

25-108

NUT,1/2"-13, G5

3шт.

47

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
