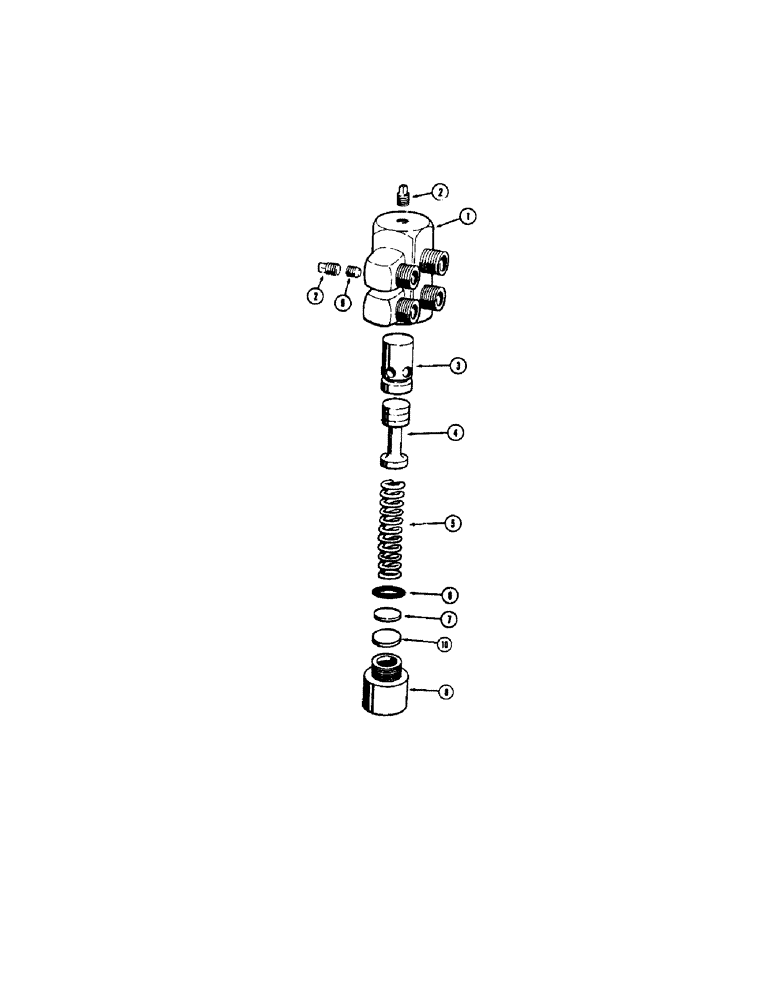

Запчасти Case W8C (204) - A17701 RELIEF VALVE (DROTT CLAM), A17688 CONNECTOR (08) - HYDRAULICS

A17701

VALVE

ASSEMBLY - relief, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

2

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

2шт.

3

A17703

SEAT

- relief valve

1шт.

4

A17704

PLUNGER

- relief valve

1шт.

5

A17705

SPRING

- relief valve

1шт.

6

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, valve cap

1шт.

7

A17707

PLUG

SHIM - adjustment

1шт.

8

A17708

CAP - relief valve

1шт.

9

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 18 NC x 3/8")

1шт.

10

D38831

PLUG

SLUG - adjustable

1шт.
