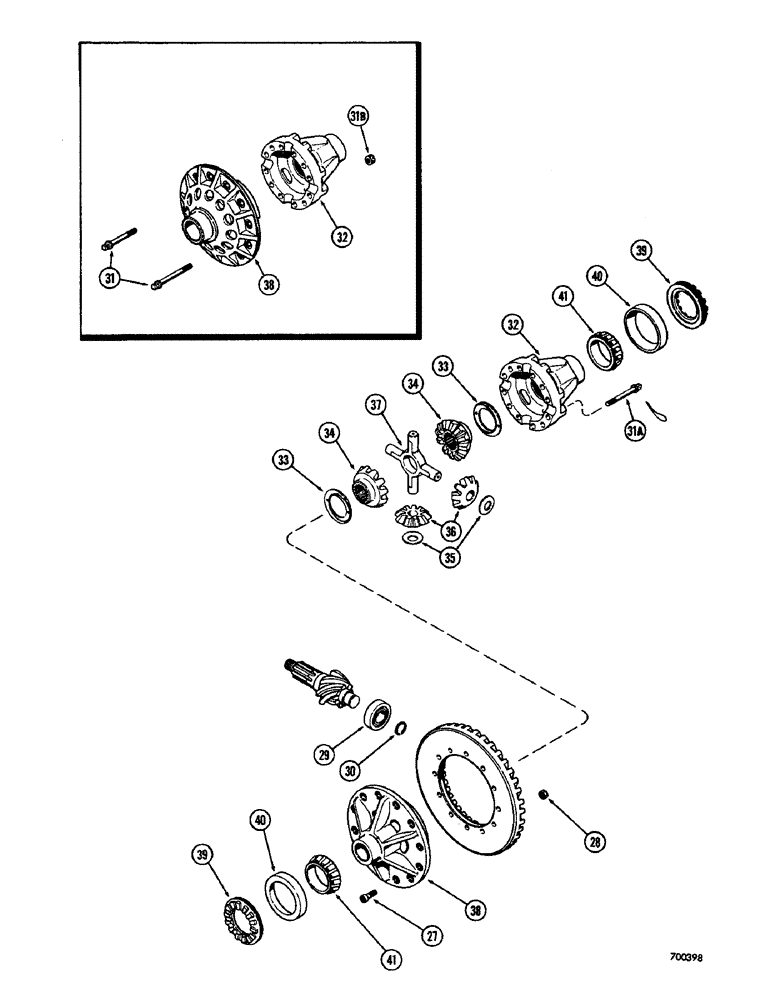

Запчасти Case W8B (186) - A56467 AND L15395 REAR STEERING AXLES, DIFFERENTIAL, FOR (04) - UNDERCARRIAGE

29

A19892

ROLLER BEARING,1.378 mm ID x 2.8346 mm OD

BEARING - drive pinion, Serial Range: -9807352

1шт.

29

L30387

ROLLER BEARING

BEARING - drive pinion, Start Serial: 9807352

1шт.

30

A15442

LOCK

SNAP RING - bearing to drive pinion

1шт.

A12973

X

DIFFERENTIAL ASSEMBLY - rear axle (When stock is exhausted, order L30670), Includes: Ref. 31 - 38

1шт.

L30670

DIFFERENTIAL

ASSEMBLY - rear axle, Includes: Ref. 31 - 38

1шт.

31

A13114

BOLT - differential case halves (Short) Used with A12973

4шт.

31

A13125

BOLT (SPREADER)

BOLT - differential case halves (Long) Used with A12973

8шт.

31a

L30667

BOLT

- differential case halves (Short) Used with L30670

4шт.

31a

L30668

SCREW

BOLT - differential case halves (Long) Used with L30670

8шт.

31b

129-282

SLOTTED NUT

- hex., slotted (Grade 8) Used with A12973

12шт.

32

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

33

A12979

WASHER

- thrust, side gear

2шт.

34

A12978

GEAR

- side, differential

2шт.

35

A12976

WASHER

- thrust, pinion gear

4шт.

36

A12975

GEAR

- pinion, differential

4шт.

37

A12974

U-JOINT SPIDER

SPIDER - pinion gear

1шт.

38

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

39

A12942

GASKET

RING - bearing adjusting

2шт.

40

A12946

BEARING CUP

CUP - bearing, differential case

2шт.

41

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearing, differential case

2шт.
