Запчасти Case W8B (184) - A56467 AND L15395 REAR STEERING AXLES, DIFFERENTIAL (04) - UNDERCARRIAGE

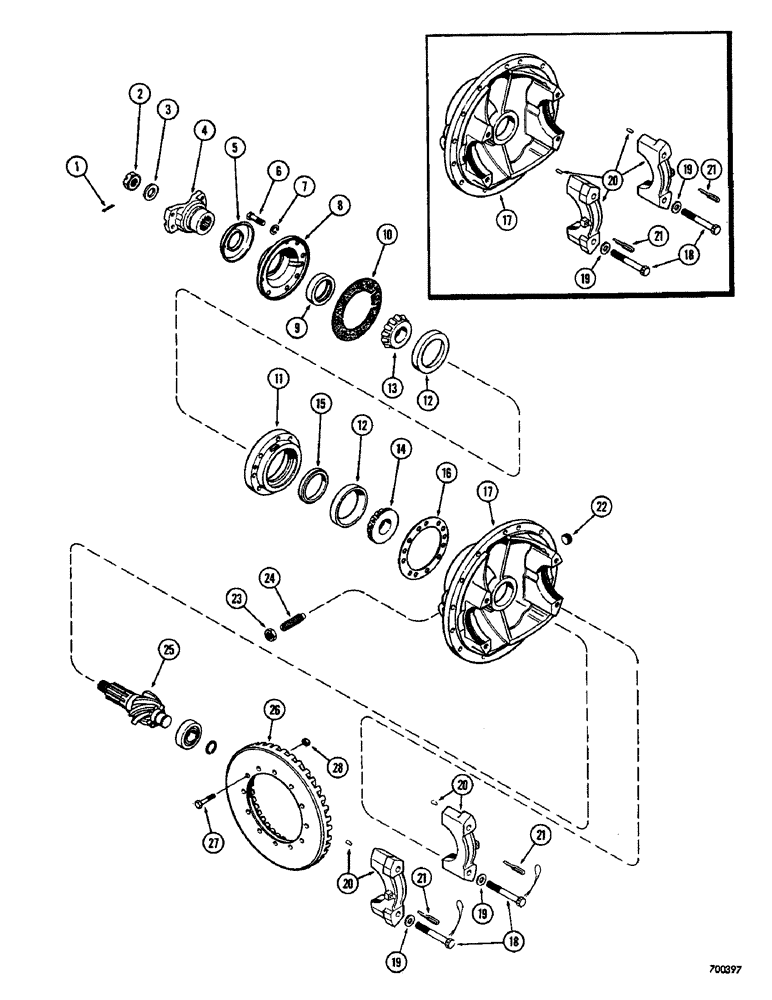

Схема запчастей Case W8B - (184) - A56467 AND L15395 REAR STEERING AXLES, DIFFERENTIAL (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

A56467

AXLE ASSEMBLY - rear steering, complete, Order L15395, Includes: Ref. 1 - 28 this Figure and Ref. 29 - 41 on Figure 186, Serial Range: -9807352

1шт.

L15395

STEERING AXLE

AXLE ASSEMBLY - rear steering, complete, Replaces A56467, Includes: Ref. 1 - 28 this Figure and Ref. 29 - 41 on Figure 186, Start Serial: 9807352

1шт.

2

L30731

SLOTTED NUT

- pinion, Serial Range: gear-yoke

1шт.

1

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

3

A13124

WASHER

- pinion gear nut

1шт.

4

A19891

YOKE - drive shaft

1шт.

5

A12952

CYLINDER END CAP

SLINGER - oil

1шт.

6

113-306

BOLT (SPREADER)

HHCS - 7/16" - 14 NC x 1-3/4"

8шт.

7

92-7

LOCK WASHER,7/16"

8шт.

A12954

COVER ASSY

SEAL AND RETAINER ASSEMBLY - oil, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - oil seal

1шт.

9

A16901

SEAL

- oil, pinion shaft

1шт.

10

A12955

GASKET

- bearing cage

1шт.

11

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

A12959

CAGE

ASSEMBLY - pinion bearing, Includes: Ref. 11 and 12

1шт.

12

A12949

BEARING CUP

CUP - bearing, inner and outer

2шт.

13

A12950

ROLLER BEARING,1.75" ID x 1.0594"

CONE - bearing, outer

1шт.

14

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing, inner

1шт.

15

A12960

SPACER

- bearing (.219")

1шт.

15

A12961

SPACER

- bearing (.220")

1шт.

15

A12962

SPACER

- bearing (.221")

1шт.

15

A12963

SPACER

- bearing (.222")

1шт.

15

A12964

SPACER

- bearing (.223")

1шт.

15

A12965

SHIM,.224" Thk

SPACER, , Bearing .224" Thk

1шт.

15

A12966

SPACER

- bearing (.230")

1шт.

15

A12967

SPACER

- bearing (.236")

1шт.

15

A12968

SPACER

- bearing (.242")

1шт.

15

A12969

SPACER

- bearing (.248")

1шт.

15

A12970

SPACER

- bearing (.254")

1шт.

16

A12956

SHIM,.005" Thk

Bearing cage .005" Thk

3шт.

16

A12957

SHIM,.010" Thk

Bearing cage .010" Thk

2шт.

16

A12958

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

L30220

CARRIER

ASSEMBLY - differential, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

18

A12938

SCREW,5/8" - 11 x 4 1/2"

BOLT - bearing, Serial Range: cap-carrier

4шт.

19

L30737

WASHER

- bearing cap bolt

4шт.

20

NSS

NOT SOLD SEPARAT

CAP AND DOWEL - differential carrier bearing

2шт.

21

A18196

HARDWARE

PIN - lock

2шт.

22

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, square socket head (3/4" NPT)

1шт.

23

A13121

X

NUT - lock, thrust screw

1шт.

24

L31659

BOLT,7/8" x 3 5/8"

SCREW - adjusting, thrust bearing (Replaces A12948 thrust block and A13122 adjusting screw)

1шт.

A19889

GEAR SET - ring and pinion (Matched set) (Order L34008), Includes: Ref. 25 - 28, Serial Range: -9807352

1шт.

L34008

GEAR SET

- ring and pinion (Matched set), Includes: Ref. 25 - 28, Start Serial: 9807352

1шт.

25

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

26

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

27

A16437

BOLT

- ring, Serial Range: gear-case

12шт.

28

129-282

SLOTTED NUT

- hex., slotted (1/2" - 20 NF)

12шт.
