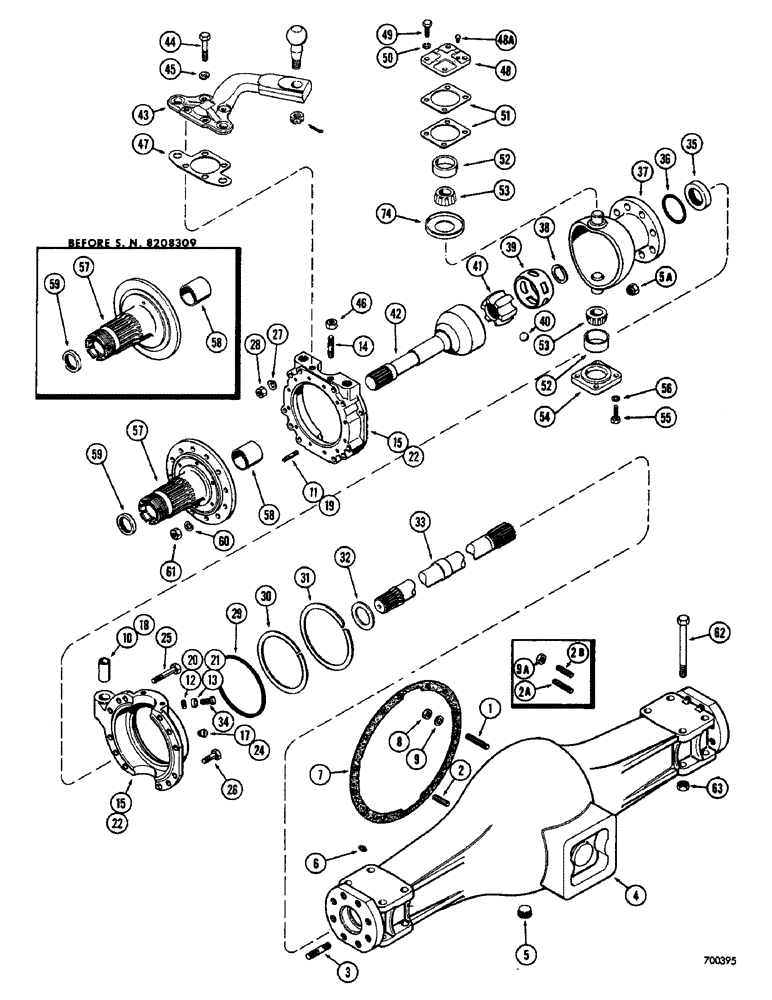

Запчасти Case W8B (178) - A56467 AND L15395 REAR STEERING AXLES, AXLE HOUSING AND STEERING (04) - UNDERCARRIAGE

A56467

AXLE ASSEMBLY - rear steering, complete, Order L15395, Includes: Ref. 1 - 61, Serial Range: -9807352

1шт.

L15395

STEERING AXLE

AXLE ASSEMBLY - rear steering, complete, Replaces A56467, Includes: Ref. 1 - 61, Start Serial: 9807352

1шт.

A15748

HOUSING ASSEMBLY - rear axle, Includes: Ref. 1 - 5

1шт.

1

L30673

STUD

- differential carrier to housing (3" long) Replaces A13130

4шт.

2

A13130

STUD

- differential carrier to housing (2-5/8" long) Replaces A13131

10шт.

2a

A13130

STUD

- carrier to housing (2-5/8" long) Used with 131-183

4шт.

2b

A13131

STUD

- carrier to housing (2" long) Used with 131-183

10шт.

3

A16374

STUD

-, Serial Range: trunnion-housing

16шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - rear axle

1шт.

5

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, square socket head (1-1/4" NPT)

1шт.

5a

131-59

LOCK NUT,3/4"-16

NUT - hex., lock (3/4" - 16 NF), use 131-225 nut, 131-59 nut will not work

16шт.

6

A12928

BREATHER

- oil, axle housing

1шт.

7

A12942

GASKET

- differential carrier to axle housing

1шт.

8

131-74

LOCK NUT,1/2"-20

NUT - hex., lock (1/2" - 20 NF) Used with L30673 and A13130

14шт.

9

L30674

WASHER

- carrier to housing stud (Used with L30673 and A13130)

14шт.

9a

131-183

LOCK NUT,1/2"-20, GC

NUT - hex., lock (1/2" - 20 NF) Used with A13130 and A13131

14шт.

A15744

FLANGE AND COMPANION ASSEMBLY - steering, L.H., Includes: Ref. 10 - 17

1шт.

10

A12993

BUSHING

- tie rod yoke bolt

1шт.

11

A13120

STUD

- steering, Serial Range: knuckle-flange

12шт.

12

A15043

SHIM

- stop screw spacer

6шт.

13

A55764

SPACER - steering stop screw

1шт.

14

A15735

STUD - steering arm

2шт.

15

NSS

NOT SOLD SEPARAT

FLANGE AND COMPANION - steering, L.H.

1шт.

16

113-309

HHCS - 7/16" - 18 NC x 1-3/8" (Not illustrated)

1шт.

17

221-41

PLUG

- pipe, slotted headless (1/8" NPT)

1шт.

A15745

FLANGE

AND COMPANION ASSEMBLY - steering, R.H., Includes: Ref. 18 - 24

1шт.

18

A12993

BUSHING

- tie rod yoke bolt

1шт.

19

A13120

STUD

- steering, Serial Range: knuckle-flange

12шт.

20

A15043

SHIM

- stop screw spacer

6шт.

21

A55764

SPACER - steering stop screw

1шт.

22

NSS

NOT SOLD SEPARAT

FLANGE AND COMPANION - steering, R.H.

1шт.

23

113-309

HHCS - 7/16" - 14 NC x 1-3/8" (Not illustrated)

1шт.

24

221-41

PLUG

- pipe, slotted headless (1/8" NPT)

1шт.

25

114-311

BOLT

HHCS - 7/16" - 20 NF x 3"

20шт.

26

114-312

X

HHCS - 7/16" - 20 NF x 1-1/2"

4шт.

27

92-7

LOCK WASHER,7/16"

24шт.

28

129-530

NUT,7/16"-20, G8

24шт.

29

A15741

SEAL

- grease, trunnion socket

2шт.

30

A15742

RETAINER

- grease seal

2шт.

31

A15743

RING

SNAP RING - seal retainer

2шт.

32

A15746

WASHER

- guide, axle shaft

2шт.

33

A13007

SHAFT HOUSING

SHAFT - axle drive, rear

2шт.

34

A15078

SCREW - stop

1шт.

35

A12994

OIL SEAL

- oil, axle shaft

2шт.

36

A12995

O-RING,2 7" ID x 1/3" OD x 1/8"

SEAL - "O" ring, trunnion to housing

2шт.

37

A15385

SPARE PART

SOCKET - trunnion

2шт.

A13274

SHAFT

AND JOINT ASSEMBLY - universal, Includes: Ref. 38 - 42

2шт.

38

A13117

RING, SNAP

SNAP RING - axle shaft

1шт.

39

A13013

CAGE - ball

1шт.

40

A12982

BALL

- joint

6шт.

41

A13011

RACE

- inner

1шт.

42

A12981

SHAFT

- universal

1шт.

43

A40214

ARM - steering

1шт.

The ball including the nut is A18974.

1шт.

44

113-404

CAPSCREW

HHCS - 1/2" - 13 NC x 1-1/2"

4шт.

45

92-8

LOCK WASHER,1/2"

4шт.

46

131-187

LOCK NUT,7/8"-14, GB

NUT - hex., lock (7/8" - 14 NF), on later units use 131-760

2шт.

47

A15737

SHIM

- steering arm (.005")

2шт.

47

A15738

SHIM

- steering arm (.010")

2шт.

47

A15739

SHIM

- steering arm (.030")

1шт.

48

A13021

CAP - steering bearing, upper (R.H.)

1шт.

48a

A50096

VALVE

- relief, steering cap and arm

4шт.

49

113-404

CAPSCREW

HHCS - 1/2" - 13 NC x 1-1/2"

4шт.

50

92-8

LOCK WASHER,1/2"

4шт.

51

A12990

SHIM,.005" Thk

Bearing cap .005" Thk

6шт.

51

A12992

SHIM,.010" Thk

Bearing cap .010" Thk

6шт.

51

A12991

SHIM,.030" Thk

Bearing cap .030" Thk

3шт.

52

A13019

CUP ASSY.

CUP - steering bearing

4шт.

53

A13018

ROLLER BEARING,1.125" ID x 0.955"

CONE - steering bearing

4шт.

54

A13020

CAP

- steering bearing, lower

2шт.

55

113-404

CAPSCREW

HHCS - 1/2" - 13 NC x 1-1/2"

8шт.

56

92-8

LOCK WASHER,1/2"

8шт.

A12984

SPINDLE

ASSEMBLY - wheel hub, Includes: Ref. 57 - 59, Serial Range: -8208309

2шт.

A55765

SPINDLE

ASSEMBLY - wheel hub, Includes: Ref. 57 - 59, Start Serial: 8208309

2шт.

57

NSS

NOT SOLD SEPARAT

SPINDLE - wheel hub

1шт.

58

A13016

BUSHING

- spindle

1шт.

59

A15820

OIL SEAL

SEAL - oil, spindle

1шт.

60

A13136

RING

WASHER - spindle nut

24шт.

61

131-182

LOCK NUT,7/16"-20, GC

NUT - hex., lock (7/16" - 20 NF), on later units use 131-753

24шт.

62

116-706

SCREW

HHCS - 3/4" - 16 NF x 7/12" (Grade 8)

8шт.

63

131-186

LOCK NUT,3/4"-16, GB

NUT - hex., lock (3/4" - 16 NF)

8шт.

74

A15027

RETAINER

not required

1шт.
