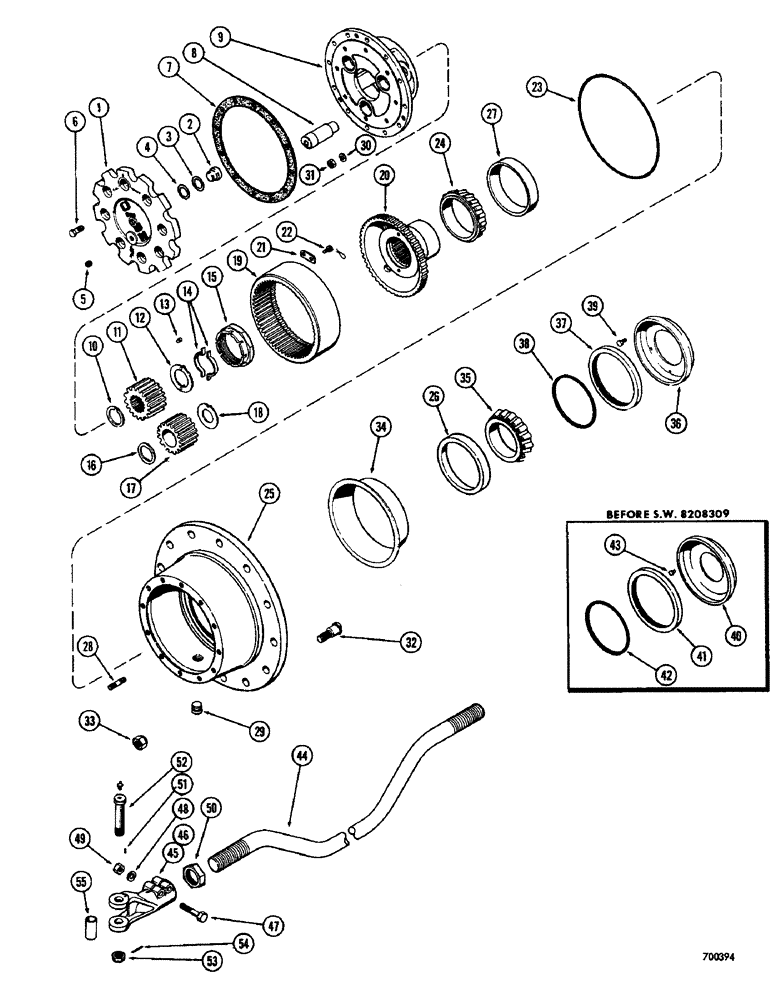

Запчасти Case W8B (174) - A56467 AND L15395 REAR STEERING AXLES, PLANETARY AND RELATED PARTS (04) - UNDERCARRIAGE

A56467

AXLE ASSEMBLY - rear steering, complete, Order L115395, Includes: Ref. 1 - 55, Serial Range: -9807352

1шт.

L15395

STEERING AXLE

AXLE ASSEMBLY - rear steering, complete, Replaces A56467, Includes: Ref. 1 - 55, Start Serial: 9807352

1шт.

1

A12908

COVER

- planetary spider

2шт.

2

A12980

BUTTON

- thrust, drive shaft

2шт.

3

L30588

SHIM

- thrust button (.010") If used

1шт.

4

L30589

SHIM - thrust button (.015") If used

1шт.

5

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, oil level (1/4" NPT)

2шт.

6

L30675

SCREW

BOLT - spider cover

16шт.

7

A12910

GASKET,0.4mm Thk

-, Serial Range: cover-spider

2шт.

8

A40146

SHAFT

- planetary pinion

6шт.

9

A12909

U-JOINT SPIDER

SPIDER - planetary

2шт.

10

A12907

O-RING,1.74" ID x 0.1205"

RING - retaining, sun gear

2шт.

11

A12905

GEAR

- sun

2шт.

12

A13103

WASHER

- thrust, sun gear

2шт.

13

A13137

AXLE PIN

PIN - thrust washer

4шт.

14

A12953

RETAINER

LOCK - bearing nut

4шт.

15

A13104

BEARING LOCK NUT

NUT - hub bearing

2шт.

16

A12904

WASHER

- pinion thrust, outer

6шт.

17

A12901

GEAR

PINION - planetary

6шт.

18

A40145

WASHER

- pinion thrust, inner

6шт.

19

A12911

GEAR

- ring, pinion

2шт.

20

A12913

HUB CAP

HUB - ring hear

2шт.

21

A12914

LOCK ASSY

PLATE - lock

8шт.

22

G49000

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Drilled

- lock plate

16шт.

23

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

SEAL - "O" ring, spider to hub

2шт.

24

A12915

ROLLER BEARING,4.25" ID x 1.375"

CONE - bearing, outer

2шт.

L30223

HUB AND STUD ASSEMBLY - wheel, Includes: Ref. 25 - 28

2шт.

25

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

26

A17892

CUP - bearing, inner

1шт.

27

A12916

BEARING CUP

CUP - bearing, outer

1шт.

28

L30951

STUD

-, Serial Range: spider-hub

12шт.

29

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - pipe, magnetic (3/4" NPT)

2шт.

30

92-8

LOCK WASHER,1/2"

24шт.

31

129-545

NUT,1/2"-20, G8

24шт.

32

A13112

STUD

-, Serial Range: wheel-hub

24шт.

33

A12522

WHEEL NUT

- wheel bolt

24шт.

34

A18266

DEFLECTOR

SLINGER - oil

2шт.

35

A40163

CONE

- bearing, inner

2шт.

A55766

OIL SEAL

RETAINER AND SEAL ASSEMBLY - hub, Includes: Ref. 36 and 37, Start Serial: 8208309

2шт.

36

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

37

A16653

OIL SEAL

SEAL - oil, hub

1шт.

38

A55763

O-RING,5.859" ID x 6.125" OD

RING - seal, retainer, Start Serial: 8208309

1шт.

39

A40149

BOLT - retainer, Start Serial: 8208309

12шт.

40

A13003

RETAINER

- hub seal, Serial Range: -8208309

2шт.

41

A16653

OIL SEAL

SEAL - oil, hub

1шт.

42

A13022

O-RING,1/3" ID x 1/9" OD

RING - seal, retainer, Serial Range: -8208309

2шт.

43

A13119

PIN - seal retainer, Serial Range: -8208309

2шт.

44

A13009

TIE-ROD

ROD - tie

1шт.

45

A13004

YOKE

- tie rod, R.H.

1шт.

46

A13005

YOKE

- tie rod, L.H.

1шт.

47

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

HHCS - 1/2" - 20 NF x 2-3/4"

4шт.

48

92-8

LOCK WASHER,1/2"

4шт.

49

129-545

NUT,1/2"-20, G8

4шт.

50

A13115

LOCK NUT

NUT - lock, special (Tie rod)

1шт.

51

A13111

AXLE PIN

PIN - yoke bolt

2шт.

52

NLS

NO LONGER SERVICED

BOLT - yoke, special

2шт.

53

A13110

NUT

- yoke bolt, special

2шт.

54

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

55

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- yoke

2шт.
