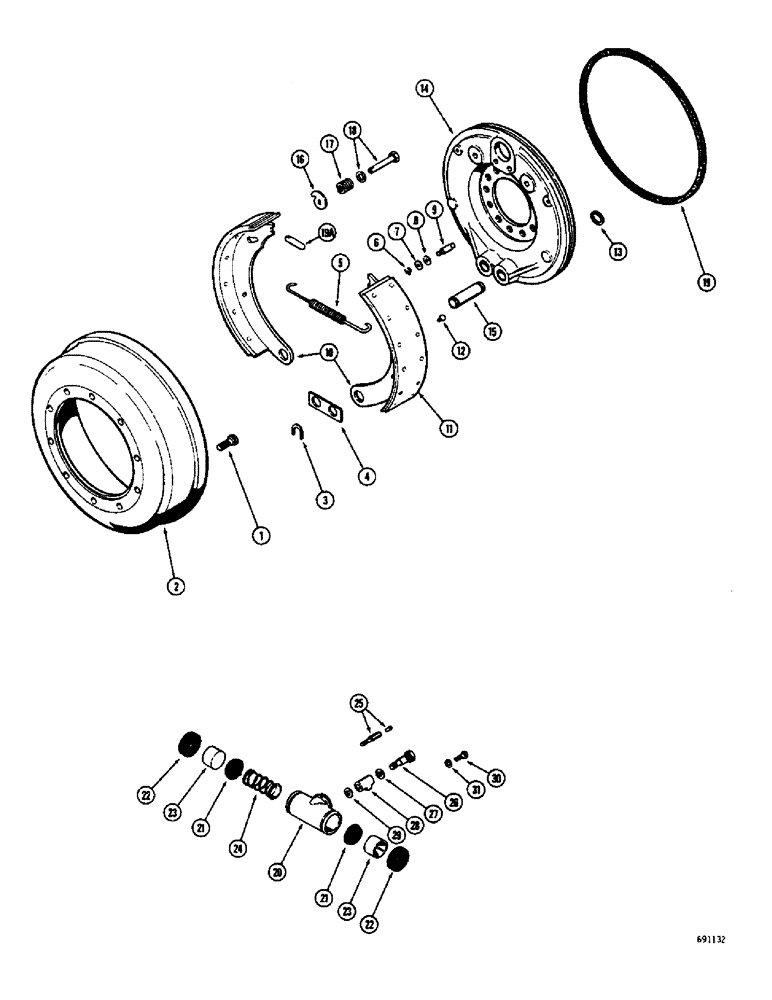

Запчасти Case W8B (168) - A19080 AND L15393 FRONT RIGID AXLES, FRONT BRAKE DRUM AND LININGS (04) - UNDERCARRIAGE

L15393

AXLE ASSEMBLY - front rigid, complete, (Replaces A19080), Includes: Ref. 1 - 31, Start Serial: 9807215

1шт.

Loader S/N 9807307 and 9807308 were equipped with A19080 axle. For complete axle see Figures 166 thru 170

1шт.

A19080

AXLE ASSEMBLY - front rigid, complete, Order L15393, Includes: Ref. 1 - 31, Serial Range: -9807215

1шт.

Loader S/N 9807307 and 9807308 were equipped with A19080 axle. For complete axle see Figures 166 thru 170

1шт.

1

A14962

BOLT,5/8" x 1 1/2", Gr 8

- brake drum to wheel hub

20шт.

2

A19903

DRUM - brake, front

2шт.

3

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

RETAINER - anchor link

4шт.

4

A19899

DRAG LINK

LINK - anchor

2шт.

5

A13002

SPRING

- shoe return

2шт.

6

A13127

WASHER

RETAINER - guide pin

4шт.

7

A13128

WASHER

- spring, guide pin

4шт.

8

A13129

WASHER

- plain, guide pin

4шт.

9

A18272

GUIDE PIN

PIN - guide

4шт.

A19895

SHOE

AND LINING - brake, upper and lower, Includes: Ref. 10 - 12

4шт.

10

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

11

A19896

LINING

KIT - brake lining, Includes: Ref. 12

1шт.

12

A15060

RIVET

- lining

64шт.

13

A19904

RING, SNAP

RING - snap, anchor pin

4шт.

14

A19898

PLATE - backing, brake

2шт.

15

A19900

AXLE PIN

PIN - anchor, brake

4шт.

16

A13201

SHOE

CAM - brake adjusting

4шт.

17

A13023

SPRING

- adjusting cam

4шт.

18

A12997

CAPTIVE WASHER SCREW

BOLT AND WASHER - adjusting cam

4шт.

19

A19897

SEAL

- brake drum

2шт.

19a

A12983

ROD

- push, brake cylinder

4шт.

A19893

WHEEL

CYLINDER ASSEMBLY - brake, front, Includes: Ref. 20 - 29

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - brake cylinder

1шт.

A12865

KIT

- repair, cylinder, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

22

NSS

NOT SOLD SEPARAT

BOOT - cylinder

2шт.

23

A13044

PISTON ASSY.

PISTON - cylinder

2шт.

24

A13043

SPRING

- piston return

1шт.

25

A19894

SCREW,2 5/8"

- bleeder, brake

1шт.

26

A12926

BOLT

-, Serial Range: fitting-cylinder

1шт.

27

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

-, Serial Range: bolt-fitting

1шт.

28

A12925

FITTING

- swivel, inlet

1шт.

29

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - swivel, Serial Range: fitting-cylinder

1шт.

30

113-215

X

HHCS - 3/8" - 16 NC x 1", front brake wheel cylinder

4шт.

31

92-6

LOCK WASHER,3/8"

front brake wheel cylinder 3/8"

4шт.
