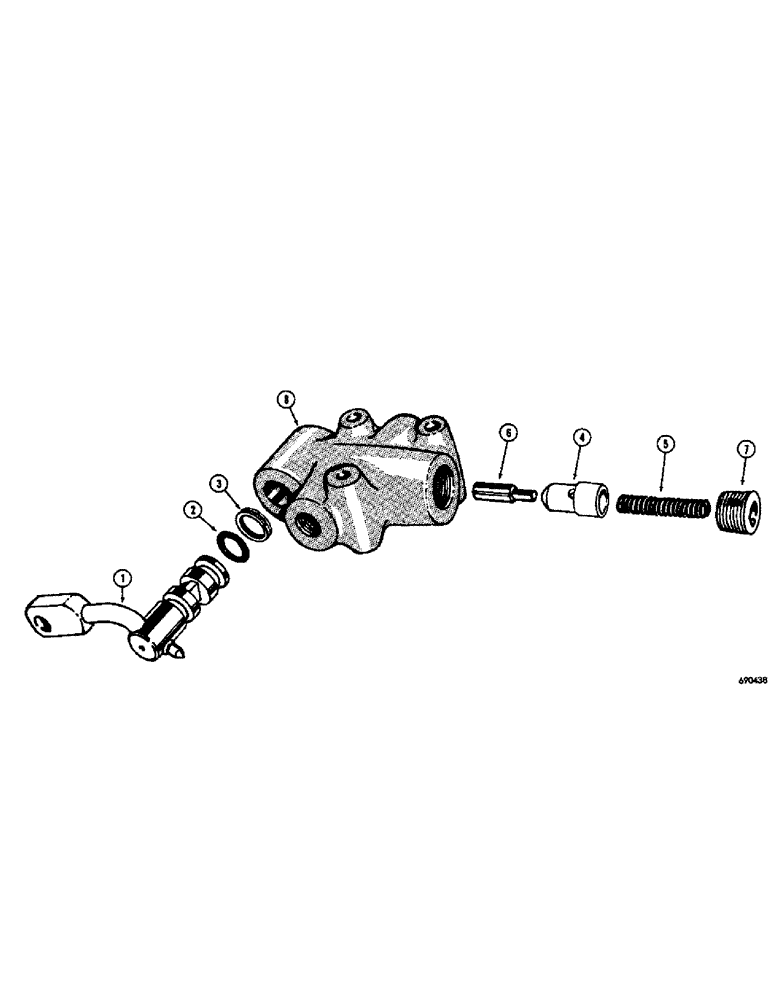

Запчасти Case W8B (122[1]) - CLUTCH CONTROL VALVE (04) - UNDERCARRIAGE

18891

PIN

VALVE ASSEMBLY - clutch control, Inlcudes: Ref. 1 - 8

1шт.

1

A19487

LEVER

HANDLE AND CAM - control valve

1шт.

L30994

KIT

- repair, control valve, Inlcudes: Ref. 2 - 5

1шт.

2

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, cam

2шт.

3

A19485

RING

WASHER - backup, seal

2шт.

4

A19483

VALVE

POPPET - check valve

1шт.

5

L30995

VALVE SPRING

SPRING - check valve poppet

1шт.

6

A19486

TAPPET

FOLLOWER - cam

1шт.

7

A19488

PLUG

- pipe, special

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.
