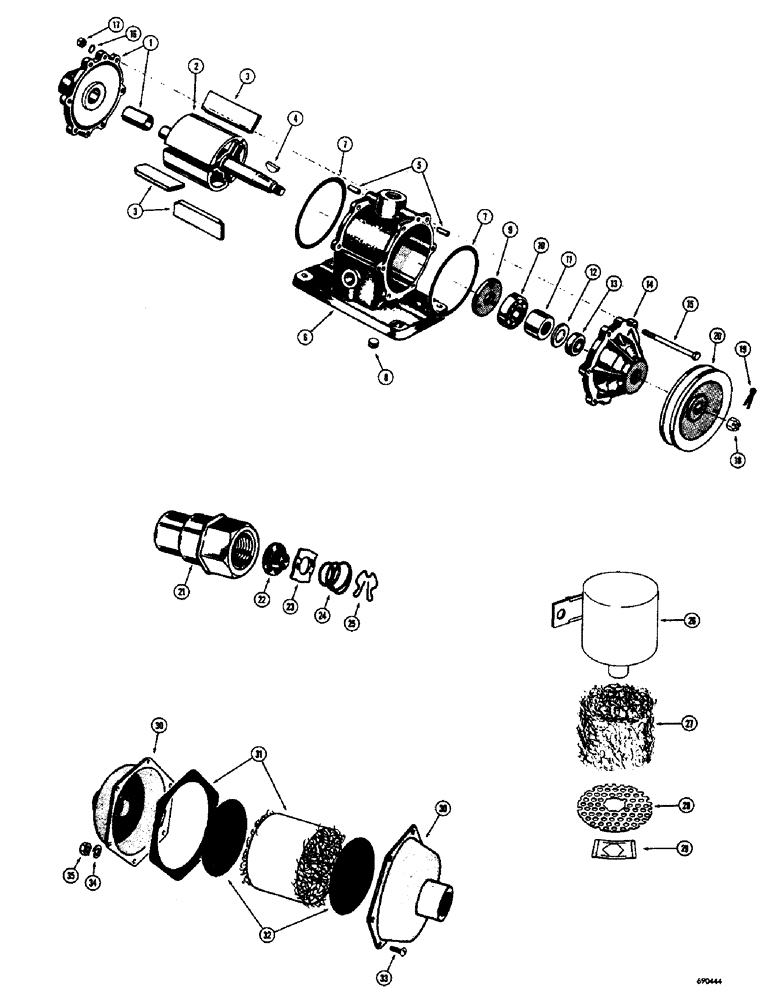

Запчасти Case W8B (120) - HYDROVAC VACUUM PUMP, CHECK VALVE, A18529 AIR CLEANER (04) - UNDERCARRIAGE

A18534

PUMP

ASSEMBLY - Hydrovac vacuum, Inlcudes: Ref. 1 - 19

1шт.

1

L30005

PLATE ASSY.

PLATE AND BUSHING ASSEMBLY - end

1шт.

2

L30636

IMPELLER

ROTOR - pump

1шт.

3

A19722

KIT

VANE - rotor, set of 3

1шт.

4

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Rotor shaft to pulley #9, 3/16" x 3/4"

1шт.

5

A19724

DOWEL

PIN - dowel end plates to pump housing

2шт.

6

L30006

HOUSING

- vacuum pump

1шт.

7

A19725

GASKET

- end, Serial Range: plates-housing

2шт.

8

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex. socket head (3/8" NPT)

1шт.

9

A19727

NO LONGER SERVICED

BAFFLE - end plate

1шт.

10

A19728

BALL BEARING

- shaft

1шт.

11

A19729

SEAL

SEAL - oil

1шт.

12

A19730

GASKET

- oil seal

1шт.

13

A19731

FELT

WASHER - felt, end plate

1шт.

14

A19732

PLATE - end, front

1шт.

15

14-472

BOLT,Hex, 1/4" - 28 x 4-1/2", Gr 5

HHCS - 1/4" - 28 NF x 4-1/2"

6шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

17

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

6шт.

18

25-238

SLOTTED NUT,1/2"-20, G5, Thk

NUT - hex., slotted (1/2" - 20 NF)

1шт.

19

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

1шт.

20

A18536

PULLEY

- pump drive

1шт.

A18513

LOCK VALVE

CHECK VALVE - Hydrovac, Inlcudes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

22

A19743

SEAL ASSY.

SEAL - poppet, check valve

1шт.

23

A19744

RETAINER

- poppet seal, check valve

1шт.

24

A19745

SPRING

- check valve

1шт.

25

A19746

RETAINER - valve spring, check valve

1шт.

A18529

AIR CLEANER - Hydrovac, Inlcudes: Ref. 26 - 29

1шт.

26

A19747

BODY - air cleaner, A18529

1шт.

27

A19750

ELEMENT

- air cleaner, A18529

1шт.

28

A19749

PLATE ASSY.

PLATE - screening, A18529 air cleaner

1шт.

29

A19748

RETAINER - plate, A18529 air cleaner

1шт.

A18532

CLEANER

AIR FILTER - Hydrovac, Inlcudes: Ref. 30 - 35

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - air filter, A18532

1шт.

31

A40055

FILTER

KIT - filter element (Includes gasket), A18532 air filter

1шт.

32

A19752

FILTER STRAINER

SCREEN - air filter, A18532

2шт.

33

A19753

SCREW - machine, round head (#6 - 32 NC x 3/8"), A18532 air filter

6шт.

34

192-5

LOCK WASHER,#6

WASHER, LOCK, , A18532 Air filter #6

6шт.

35

129-640

NUT,#6-32, Brass

- hex. (#6 - 32 NC), A18532 air filter

6шт.
