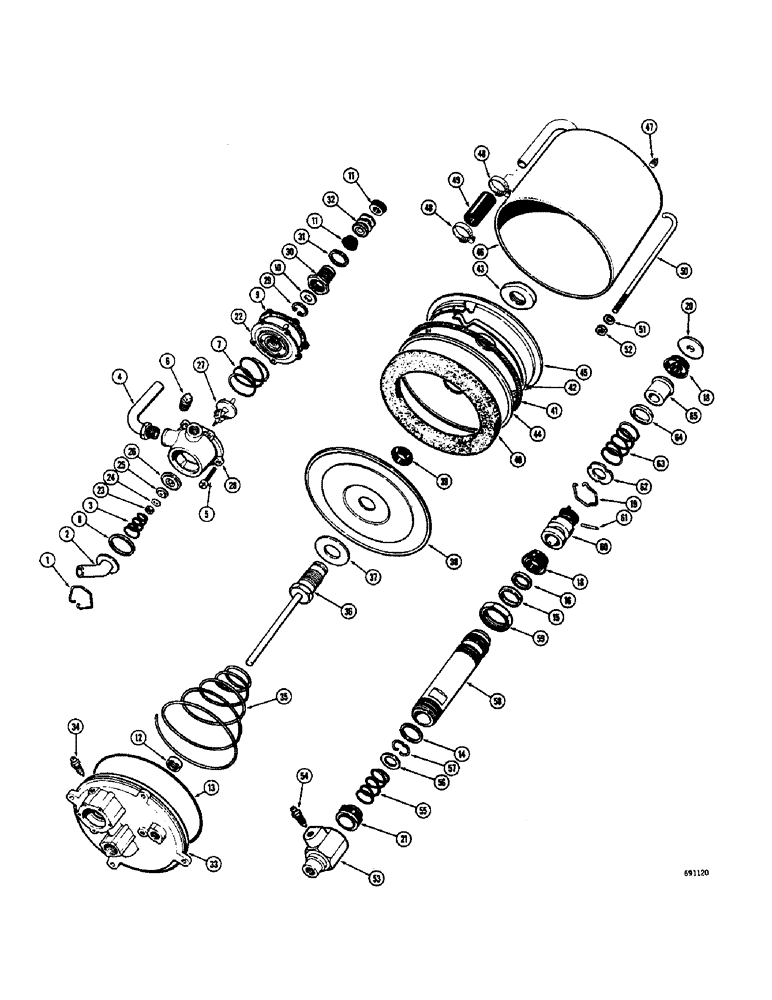

Запчасти Case W8B (116) - HYDROVAC CYLINDER (04) - UNDERCARRIAGE

A18554

CYLINDER

ASSEMBLY - Hydrovac, brake, Inlcudes: Ref. 1 - 65

1шт.

1

A24870

SNAP RING - tube retaining

1шт.

2

A24866

TUBE AND COVER - valve

1шт.

3

A24868

SPRING - poppet

1шт.

4

A24867

TUBE - relief valve

1шт.

5

A19669

SCREW

- special, valve body

5шт.

6

221-1003

PLUG - pipe, square head (3/8" NPT)

1шт.

7

A24874

SPRING - valve seat

1шт.

A24876

KIT

- repair, major, Inlcudes: Ref. 8 - 27

1шт.

A24878

REPAIR KIT

KIT - repair, minor, Inlcudes: Ref. 8 - 20

1шт.

8

A24869

GASKET - tube and cover

1шт.

9

A19673

GASKET - valve body

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - fitting, valve

1шт.

11

NSS

NOT SOLD SEPARAT

CUP - relay valve piston

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

13

A19695

SEAL

- "O" ring, cylinder

1шт.

14

A19703

GASKET

- end cap

1шт.

15

A19706

SEAL

- slave tube

1шт.

16

A19707

SEAL

- slave tube

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - hydraulic piston (Not illustrated)

1шт.

18

NSS

NOT SOLD SEPARAT

CUP - hydraulic piston

2шт.

19

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - piston rod

1шт.

21

A19699

VALVE

ASSEMBLY - Hydrovac cylinder

1шт.

22

A24872

DIAPHRAGM

AND PLATE ASSEMBLY - cylinder

1шт.

A24877

KIT

- repair, valve poppet, Inlcudes: Ref. 23 - 27

1шт.

23

129-15

NUT,#6-32

1шт.

24

A24862

WASHER - poppet

1шт.

25

A24865

POPPET - valve

1шт.

26

A24861

SEAL ASSY.

SEAL - valve

1шт.

27

A24860

SEAL ASSY.

LIFTER - valve seal

1шт.

28

A24864

BODY - valve

1шт.

29

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

30

A24857

FITTING - valve

1шт.

31

A24858

WASHER - piston stop

1шт.

32

A24855

PISTON

- relay valve

1шт.

33

A24859

PLATE - end

1шт.

34

A19696

SCREW

- bleeder

1шт.

35

A24873

SPRING - piston return

1шт.

36

A24871

ROD

PUSH ROD - piston

1шт.

37

A19691

WASHER

- piston plate

1шт.

38

A19690

PLATE - piston, front

1шт.

A19735

KIT

- piston packing, Inlcudes: Ref. 39 - 43

1шт.

39

A19689

REPAIR KIT

SEAL - piston rod

1шт.

40

NSS

NOT SOLD SEPARAT

PACKING - piston

1шт.

41

A19686

GASKET

FELT - piston

1шт.

42

A19685

RING

- packing

1шт.

43

A19683

NUT - piston retainer

1шт.

44

A19687

PLATE - piston, rear

1шт.

45

A19684

RETAINER - piston

1шт.

46

A24908

HOUSING - cylinder

1шт.

47

A19680

PLUG

- filler

1шт.

48

A24907

X

CLAMP - hose

2шт.

49

A24875

HOSE - vacuum tube

1шт.

50

A24909

BOLT - retainer

4шт.

51

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

53

A19698

CAP - end

1шт.

54

A19696

SCREW

- bleeder

1шт.

55

A19700

VALVE SPRING

SPRING - valve retainer

1шт.

56

A19701

WASHER - plug

1шт.

57

A19702

RING, SNAP

RING - snap

1шт.

58

A24906

TUBE

- slave cylinder

1шт.

59

A19705

NUT - slave tube

1шт.

60

A19709

PISTON ASSY.

PISTON ASSEMBLY - hydraulic

1шт.

61

A19710

AXLE PIN

PIN - valve plunger

1шт.

62

A19712

WASHER

- piston stop

1шт.

63

A19713

VALVE SPRING

SPRING - piston return

1шт.

64

A19714

SLEEVE - piston

1шт.

65

A19715

RETAINER

- seal

1шт.

L10395

PACKAGE

CYLINDER ASSY., air pak, smaller

1шт.
