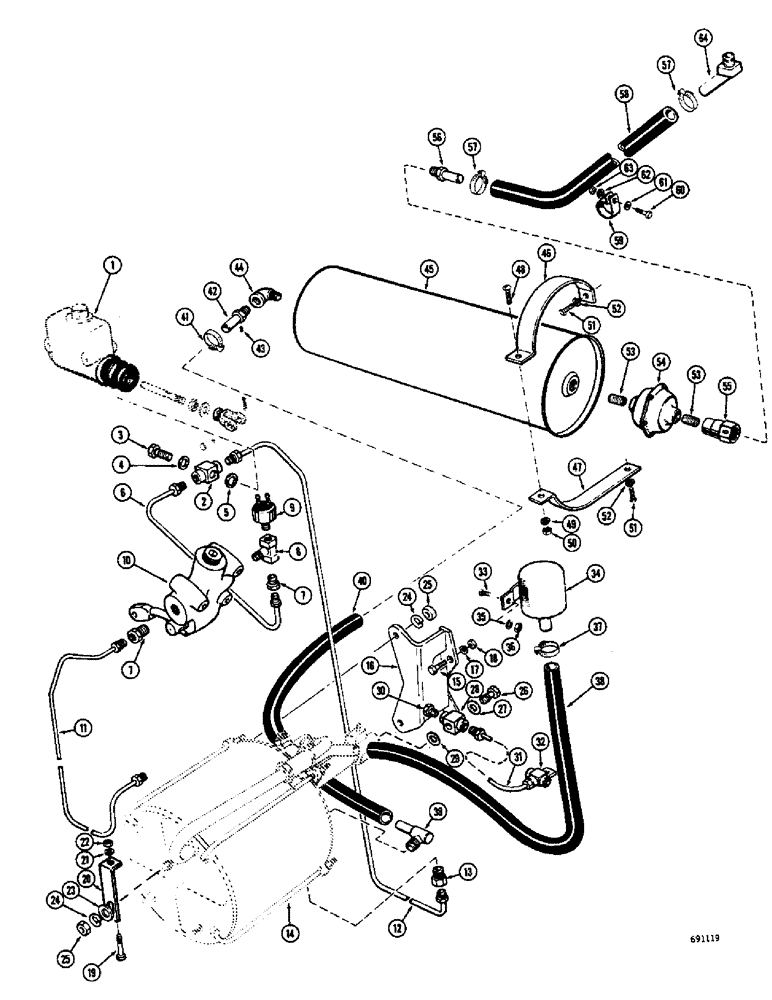

Запчасти Case W8B (112) - HYDROVAC BRAKE SYSTEM, GAS ENGINE, HYDROVAC, CYLINDER RESERVE TANK & FILTERS (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
2
A18890
CONNECTOR, ELEC
CONNECTOR - master cylinder to brake lines
1шт.
3
A12864
BOLT
- special, Serial Range: connector-cylinder
1шт.
4
33260
GASKET
- connector to bolt (Outer)
1шт.
5
333261
GASKET - connector to master cylinder (Inner)
1шт.
6
A18988
TUBE
- master cylinder to clutch control valve
1шт.
7
222-1012
HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT
CONNECTOR - clutch control tube to tee and transmission tube to valve
2шт.
8
817-55
TEE - clutch control tube and switch to control valve
1шт.
9
A12491
SWITCH
ASSY - brake, stop light
1шт.
10
A18891
LOCK VALVE
VALVE - clutch control (Parts list Figure 122)
1шт.
11
A18977
TUBE - clutch control valve to transmission control valve
1шт.
12
A18980
PIPE
TUBE - master cylinder to Hydrovac cylinder
1шт.
13
A18273
FITTING
- tube to Hydrovac cylinder
1шт.
14
A18554
CYLINDER
- Hydrovac (Parts list Figure 116)
1шт.
15
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
16
A18895
BRACKET - Hydrovac, Serial Range: cylinder-chassis
1шт.
17
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
2шт.
18
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
2шт.
19
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
20
A18898
BRACKET - support
1шт.
21
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
1шт.
22
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
1шт.
23
95-6
WASHER,3/8"
- plain () 3/8"
1шт.
24
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
3шт.
25
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
3шт.
26
A12864
BOLT
- connector to Hydrovac cylinder
1шт.
27
NLS
NO LONGER SERVICED
- bolt to connector (Outer)
1шт.
28
A12863
SUN VISOR
CONNECTOR - Hydrovac cylinder to brake tube
1шт.
29
51200242
SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk
- connector to Hydrovac cylinder (Inner)
1шт.
30
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, square head (1/8" NPT)
1шт.
31
A18981
TUBE
- connector to brake line tee
1шт.
32
A12451
FITTING
TEE - front and rear brake line
1шт.
33
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
34
18529
CLEANER - air, Hydrovac (Parts list Figure 120)
1шт.
35
92-5
LOCK WASHER,5/16"
med sect. 5/16"
1шт.
36
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
1шт.
37
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose
2шт.
38
A19325
INTAKE AIR HOSE,19.00 mm ID x 559.00 mm, SAE 20R1
- Air cleaner to Hydrovac 19.00 mm ID x 559.00 mm, SAE 20R1
1шт.
39
A17852
NIPPLE - 90 degrees, Serial Range: Hydrovac-hose
1шт.
40
A18900
HOSE ASSY.
HOSE - Hydrovac to reserve tank
1шт.
41
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
2шт.
42
A18515
SUN VISOR
NIPPLE - special
1шт.
43
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, square head (1/8" NPT)
1шт.
44
221-1414
ELBOW,90 Degree, 1/2"-14, NPT
- street, 90 degrees (1/2" NPT)
1шт.
45
A18514
TANK
- reserve, vacuum
1шт.
46
A19960
STRAP - mounting, tank (Upper)
2шт.
47
A19961
STRAP - mounting, tank (Lower)
2шт.
48
75-432
SCREW
- machine, round head (1/4" - 20 NC x 2")
2шт.
49
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
50
25-224
SQUARE NUT,Sq, 1/4"-20
- square (1/4" - 20 NC)
2шт.
51
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
52
92-5
LOCK WASHER,5/16"
med sect. 5/16"
4шт.
53
221-1185
FITTING
NIPPLE - straight (1/2" NPT)
2шт.
54
A18532
CLEANER
FILTER - air, vacuum pump (Parts list Figure 120)
1шт.
55
A18513
LOCK VALVE
VALVE - check (Parts list Figure 120)
1шт.
56
A18512
FLOAT
NIPPLE - special, check, Serial Range: valve-hose
1шт.
57
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
2шт.
58
A18903
HOSE - check, Serial Range: valve-manifold
1шт.
59
A27256
CLAMP
- hose
3шт.
60
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
HHCS - 5/16" - 18 NC x 1-1/4"
2шт.
61
95-5
WASHER,3/8" x 7/8" x .083"
- plain (5/16")
2шт.
62
92-5
LOCK WASHER,5/16"
med sect. 5/16"
2шт.
63
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
2шт.
64
A18509
FITTING
NIPPLE - special, hose to intake manifold
1шт.
Выбрано товаров: 64
