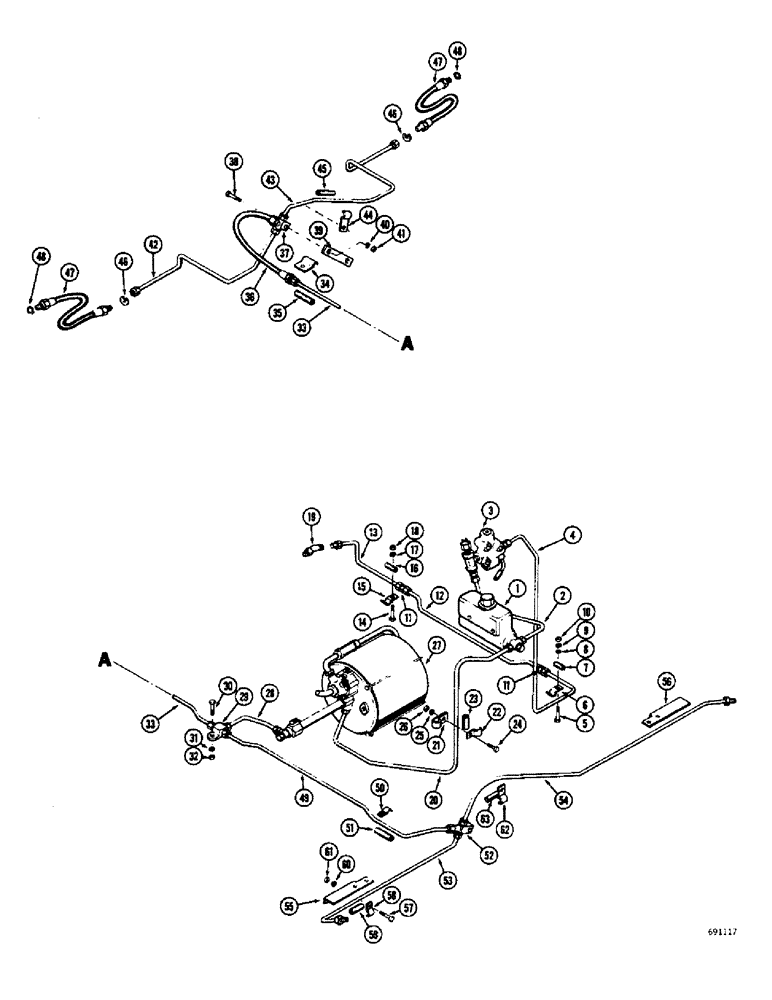

Запчасти Case W8B (104) - HYDROVAC BRAKE SYSTEM, HYDRAULIC BRAKE AND CLUTCH CONTROL (04) - UNDERCARRIAGE

1

A19970

CYLINDER

- master, brake (Parts list Figure 100)

1шт.

2

A18988

TUBE

- master cylinder to clutch control valve

1шт.

3

A18891

LOCK VALVE

VALVE - clutch control (Parts list Figure 122)

1шт.

4

A18977

TUBE - clutch control valve to transmission control valve (Upper)

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

6

A12454

CLIP

CLAMP - tube to oil tank

1шт.

7

A12458

SLEEVE

LOOM - tube protector

1шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

9

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

11

222-1053

HYD CONNECTOR,1/4" Inv Fl

UNION - tube (1/4")

2шт.

12

A18978

TUBE

- clutch control valve to transmission control valve (Front)

1шт.

13

A18979

TUBE

- clutch control valve to transmission control valve (Rear)

1шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

HHCS - 5/16" - 16 NC x 1"

2шт.

15

A7922

CLIP

CLAMP -, Serial Range: tube-chassis

2шт.

16

A12458

SLEEVE

LOOM - tube protector

2шт.

17

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

19

222-1022

ELBOW,90 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 90 degrees, tube to transmission control valve

1шт.

20

A18980

PIPE

TUBE - master cylinder to Hydrovac cylinder

1шт.

21

A17543

CLAMP - hydraulic pressure tube

1шт.

22

A7922

CLIP

CLAMP - Hydrovac tube to pressure line clamp

1шт.

23

A12458

SLEEVE

LOOM - tube protector

1шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

27

A18554

CYLINDER

- Hydrovac (Parts list Figure 116)

1шт.

28

A18981

TUBE

- Hydrovac cylinder to brake line tee

1шт.

29

A12451

FITTING

TEE - Hydrovac tube to front and rear brake tubes

1шт.

30

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

31

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

32

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

33

A18983

TUBE

- tee to rear brake hose

1шт.

34

A12453

CLAMP - tube

1шт.

35

A12458

SLEEVE

LOOM - tube protector

1шт.

36

A56478

HYDRAULIC HOSE

HOSE - tube to rear brake tube tee

1шт.

37

A13100

TEE

- rear brake tube

1шт.

38

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

39

A19490

STRAP

- brake tee support

1шт.

40

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

41

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

1шт.

42

A18986

TUBE

- tee to R.H. rear brake

1шт.

43

A18987

TUBE

- tee to L.H. rear brake

1шт.

44

A12454

CLIP

CLAMP - L.H. rear brake tube

1шт.

45

A12458

SLEEVE

LOOM - tube protector

1шт.

46

A12628

WASHER

LOCK - brake, Serial Range: hose-bracket

2шт.

47

A56478

HYDRAULIC HOSE

HOSE - tube to rear brake cylinder

2шт.

48

A12643

WASHER

- brake, Serial Range: hose-cylinder

2шт.

49

A18982

TUBE - tee to front tubes

1шт.

50

A7922

CLIP

CLAMP - tube

1шт.

51

A12458

SLEEVE

LOOM - tube protector

1шт.

52

A12452

FITTING

TEE - front brake tubes

1шт.

53

A18984

TUBE

- tee to R.H. front brake cylinder

1шт.

54

A18985

TUBE

- tee to L.H. front brake cylinder

1шт.

55

A18990

BRACKET - tube support, R.H.

1шт.

56

18991

WHEEL

BRACKET - tube, support, L.H.

1шт.

57

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

58

A7922

CLIP

CLAMP -, Serial Range: tube-bracket

2шт.

59

A12458

SLEEVE

LOOM - tube protector

2шт.

60

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

61

25-104

NUT,1/4"-20, G5

2шт.

62

A12454

CLIP

CLAMP -, Serial Range: tube-axle

1шт.

63

A12458

SLEEVE

LOOM - tube protector

1шт.
