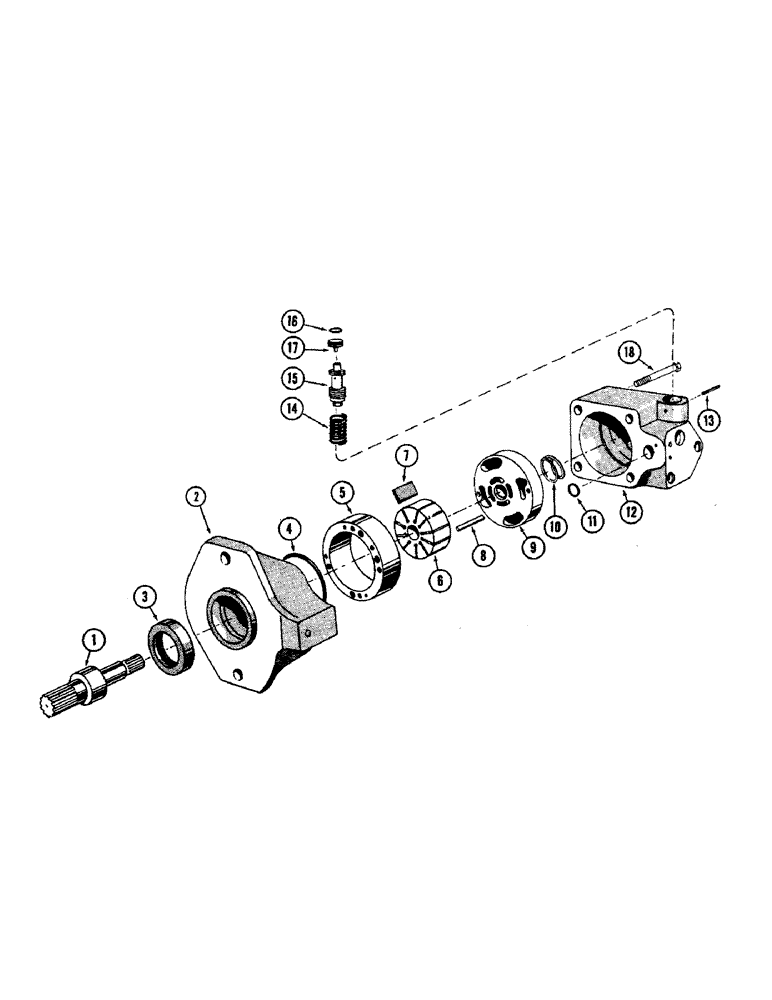

Запчасти Case W8B (098) - A17519 POWER STEERING PUMP, L10898 POWER STEERING PUMP (04) - UNDERCARRIAGE

A17519

PUMP - power steering (Vickers no. VTM 28-60-45-10-NO-LI-10) Use L10898, Includes: Ref. 1 - 18

1шт.

1

A18164

SHAFT

- drive

1шт.

2

A18166

X

BODY - pump, Includes: Ref. 3

1шт.

3

A18161

SEAL

OIL SEAL - drive shaft

1шт.

4

A18163

O-RING,2.535" ID x 0.07"

SEAL - "O" ring, pump body

1шт.

5

A18159

CLAMP

RING - rotor

1шт.

6

A18158

ROTOR

- pump

1шт.

7

A18167

SPARE PART SET

VANE KIT - rotor (Set of 10)

1шт.

8

A18152

PIN

- pressure plate

2шт.

9

A18160

COVER PLATE

PLATE - pressure

1шт.

10

A18157

SPRING - pressure plate

1шт.

11

A18156

O-RING

SEAL - "O" ring, oil port

1шт.

12

A18165

COVER

ASSEMBLY - pump

1шт.

13

135-46

GROOVED PIN,5/32" x 1 1/4", Type A

PIN - relief valve

1шт.

14

A18153

VALVE SPRING

SPRING - relief valve

1шт.

15

A18155

VALVE PRESSURE RELIE

VALVE - relief

1шт.

16

A18162

O-RING

SEAL - "O" ring, relief valve plug

1шт.

17

A18154

PLUG

- relief valve

1шт.

18

A18150

BOLT

-, Serial Range: cover-body

4шт.
