Запчасти Case W8B (098[1]) - L10898 POWER STEERING PUMP (04) - UNDERCARRIAGE

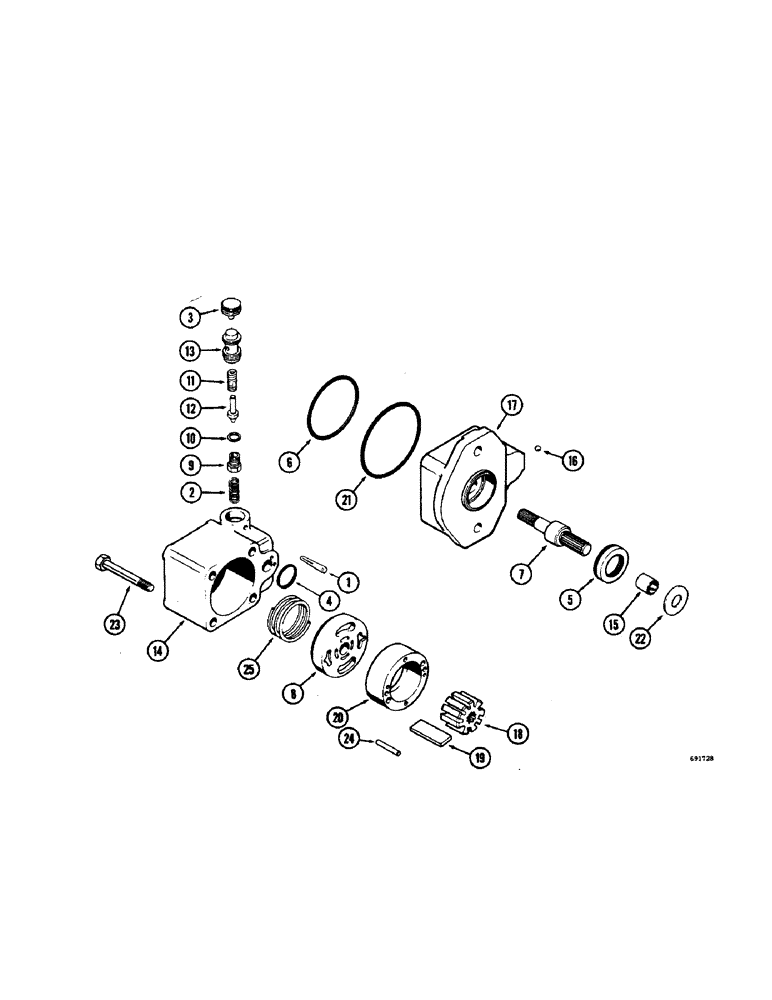

Схема запчастей Case W8B - (098[1]) - L10898 POWER STEERING PUMP (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

L10898

PUMP

- power steering (Vickers no. VTM 28-60-45-10-NO-LO-12-S1), Inlcudes: Ref. 1 - 25

1шт.

1

135-46

GROOVED PIN,5/32" x 1 1/4", Type A

ROLL PIN - relief valve

1шт.

2

A18153

VALVE SPRING

SPRING - relief valve

1шт.

3

A18154

PLUG

- relief valve

1шт.

4

A18156

O-RING

SEAL - "O" RING

1шт.

5

A18161

SEAL

- drive shaft

1шт.

6

A18163

O-RING,2.535" ID x 0.07"

SEAL - "O" ring, pump body

1шт.

7

A18164

SHAFT

- drive, pump

1шт.

8

A56216

PLATE ASSY.

PLATE - pressure

1шт.

L30512

VALVE

ASSEMBLY - relief, Inlcudes: Ref. 9 - 13

1шт.

9

L30517

PLUG

- relief valve

1шт.

10

L30518

SHIM

- relief valve (.015)

1шт.

10

L30519

SHIM

- relief valve (.030)

1шт.

10

L30525

SHIM

- relief valve (.0097)

1шт.

11

L30520

SPRING

- relief valve

1шт.

12

L30524

VALVE

POPPET - relief valve

1шт.

13

L30526

PISTON

PLUNGER - relief valve

1шт.

14

L30514

COVER ASSY

COVER - pump

1шт.

L30515

BODY

ASSEMBLY - pump, Inlcudes: Ref. 15 - 17

1шт.

15

L30521

BUSHING

- body

1шт.

16

NSS

NOT SOLD SEPARAT

BALL - body (7/32" dia.)

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

L30516

KIT

- rotor, ring and vane cartridge, Inlcudes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

19

NSS

NOT SOLD SEPARAT

VANE - pump

10шт.

20

NSS

NOT SOLD SEPARAT

RING - pump

1шт.

21

L30522

O-RING,0.492" ID x 0.106" Width

SEAL - "O" ring, pump body

1шт.

22

L30530

WASHER

- thrust

1шт.

23

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

24

A18152

PIN

- ring

2шт.

25

A56215

VALVE SPRING

SPRING - rotor

1шт.

Выбрано товаров: 31
