Артикул
Название
Примечание
Количество

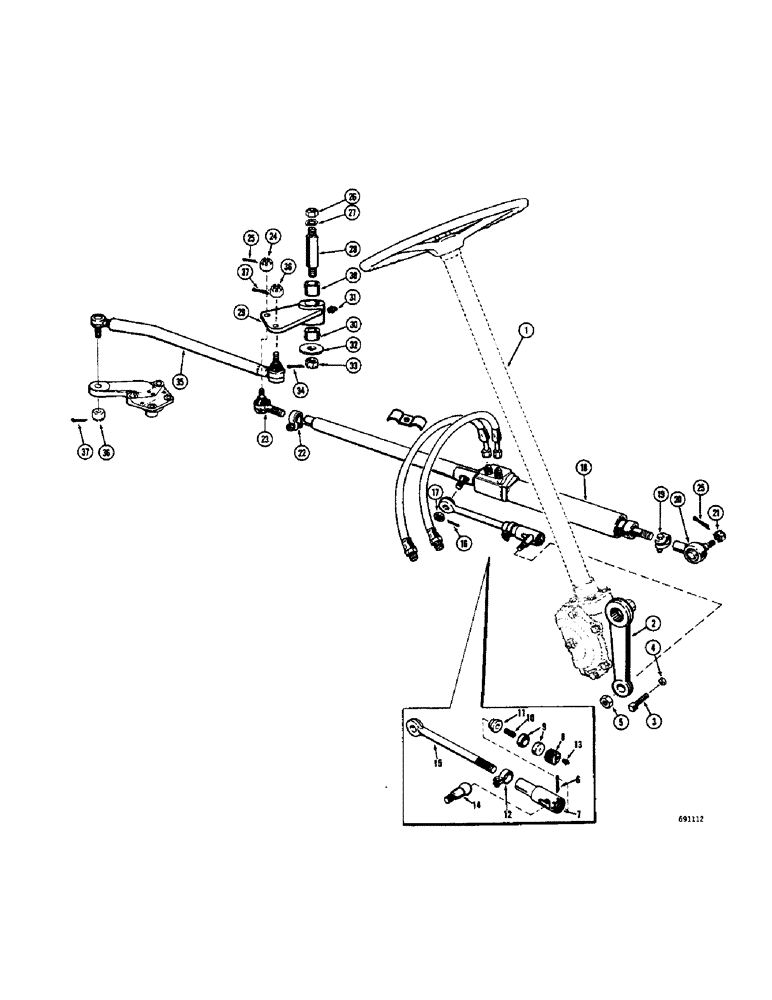

1
A14005
GEAR WHEEL
STEERING GEAR ASSEMBLY - tractor (Parts list Figure 090)
1шт.
2
A18964
ARM
- steering
1шт.
3
86-832
SCREW - set, square head (1/2" - 20 NF x 2")
2шт.
4
25-158
JAM NUT,Jam, 1/2"-20, G5
- hex., jam (1/2" - 20 NF)
2шт.
5
131-36
LOCK NUT,5/8"-18
NUT - hex., lock (5/8" - 18NF)
1шт.
A18968
SOCKET
ASSEMBLY - steering rod, Includes: Ref. 7 - 12
1шт.
6
132-56
COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"
Pin, Split (Cotter), 1/8" x 2"
1шт.
7
NSS
NOT SOLD SEPARAT
BODY - socket
1шт.
8
A35892
PLUG
- end, socket
1шт.
9
A35889
SEAT
- ball socket
2шт.
10
F19615
SPRING
- ball socket
1шт.
11
A35891
SEAT
- spring
1шт.
12
G45175
CLAMP
- socket to steering rod
1шт.
13
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
1шт.
14
A14009
PIN
STUD - ball socket to steering arm
1шт.
15
A18966
ROD
- steering, Serial Range: socket-cylinder
1шт.
16
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
1шт.
A18961
CYLINDER
ASSEMBLY - power steering (See Figure 096 for complete breakdown), Includes: Ref. 17 - 37
1шт.
17
25-1912
SLOTTED NUT,3/4"-16, G5, Thk
NUT - hex., slotted (3/4" - 16 NF)
1шт.
18
NSS
NOT SOLD SEPARAT
CYLINDER - power steering
1шт.
19
A15216
CLAMP
- ball end to cylinder, rod end
1шт.
20
A15215
END
BALL END - steering cylinder, rod end, Includes: Ref. 21
1шт.
21
25-1314
SLOTTED NUT,7/8"-14, G5
NUT - hex., slotted (7/8" - 14 NF)
1шт.
22
A15218
CLAMP
- ball end to cylinder, closed end
1шт.
23
A15217
END
BALL END - steering cylinder, closed end, Includes: Ref. 24
1шт.
24
25-1314
SLOTTED NUT,7/8"-14, G5
NUT - hex., slotted (7/8" - 14 NF)
1шт.
25
132-54
COTTER PIN,1/8" x 1 3/4"
Pin, Split (Cotter), 1/8" x 1 3/4"
2шт.
26
25-1516
NUT,Jam, 1"-14, G5
- hex., jam (1" - 14 NF)
1шт.
27
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
1шт.
28
A15762
PIN
- steering, Serial Range: lever-chassis
1шт.
29
A18970
LEVER
- intermediate steering, Includes: Ref. 30
1шт.
30
A17611
BUSHING
- steering lever
2шт.
31
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
1шт.
32
A15763
WASHER
- steering lever pin
1шт.
33
25-1316
NUT,1"-14, G5
NUT, SLOTTED, 1"-14, G5
1шт.
34
132-99
COTTER PIN,3/16" x 2"
Pin, Split (Cotter), 3/16" x 2"
1шт.
35
A18974
LINK - steering, rear, Includes: Ref. 36
1шт.
36
25-1314
SLOTTED NUT,7/8"-14, G5
NUT - hex., slotted (7/8" - 14 NF)
2шт.
37
132-54
COTTER PIN,1/8" x 1 3/4"
Pin, Split (Cotter), 1/8" x 1 3/4"
2шт.
Выбрано товаров: 39
