Запчасти Case W8B (090) - STEERING GEAR (04) - UNDERCARRIAGE

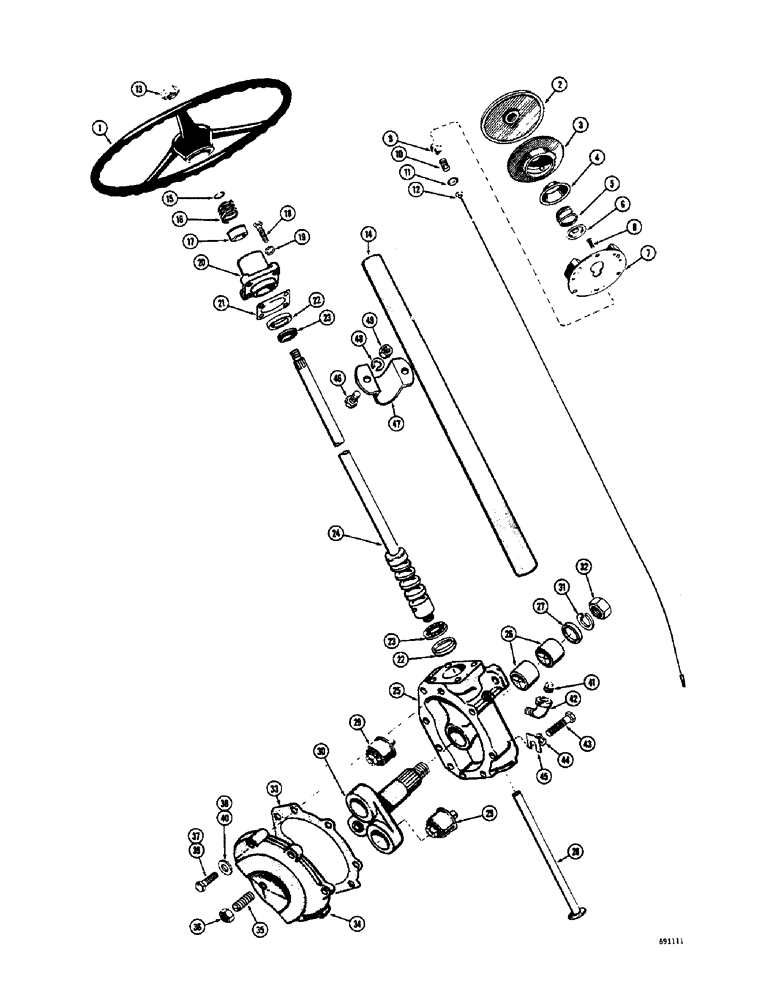

Схема запчастей Case W8B - (090) - STEERING GEAR (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

A18962

RIM

WHEEL - steering

1шт.

2

A13088

CAP

COVER - horn button

1шт.

3

A13089

BUTTON

- horn

1шт.

4

A13092

CAP

CUP - contact

1шт.

5

A13091

SPRING

- button

1шт.

6

A13090

CAP

- contact

1шт.

7

A13093

PLATE ASSY.

PLATE - base

1шт.

8

168-25

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- self-tapping, #10 - 24 NC x 5/8"

1шт.

9

A13058

FERRULE

- insulating

1шт.

10

A13059

SPRING

- contact

1шт.

11

A13057

CUP ASSY.

CONTACT -lower

1шт.

12

A15414

WIRE - horn control

1шт.

A14005

GEAR WHEEL

GEAR ASSEMBLY - steering, Includes: Ref. 13 - 49

1шт.

13

A13073

NUT

- steering, Serial Range: wheel-shaft

1шт.

A15413

TUBE

ASSEMBLY - steering shaft, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE - steering shaft

1шт.

15

A14935

SEAT

- bearing spring

1шт.

16

A14946

SPRING - bearing

1шт.

17

A14941

BUSHING

BEARING - upper, steering shaft

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

20

A14943

TUBE - upper, gear housing

1шт.

21

A14937

SHIM

- upper cover (.003")

1шт.

21

A14938

SHIM

- upper cover (.010")

1шт.

21

A14939

SHIM

- upper cover (.002")

1шт.

L30497

BEARING

KIT - repair, balls and retainer, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

CUP - ball

2шт.

23

NSS

NOT SOLD SEPARAT

RETAINER AND BALLS - worm gear

2шт.

24

A15412

GEAR

SHAFT AND WORM GEAR - steering

1шт.

A14949

HOUSING

ASSEMBLY - gear, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

26

A14942

BUSHING

- lever shaft

2шт.

27

L30500

SEAL

SEAL - oil, lever shaft

1шт.

28

A14947

COVER

SUPPORT - steering shaft

1шт.

29

L30722

BEARING

- lever shaft (Matched set of two)

1шт.

30

A14951

LEVER

SHAFT - lever, steering

1шт.

31

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

32

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

1шт.

33

A14953

GASKET

- side cover

1шт.

A14952

COVER ASSEMBLY - side, housing, Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

COVER - side

1шт.

35

A30675

ADJUSTMENT SCREW,1/2" - 20 x 1 3/16"

SCREW - adjusting, lever shaft

1шт.

36

25-158

JAM NUT,Jam, 1/2"-20, G5

- lock, screw

1шт.

37

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

38

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

39

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

2шт.

40

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

41

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

1шт.

42

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 90 degrees (3/8" NPT)

1шт.

43

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

45

A17197

SHIM

- gear, Serial Range: housing-chassis

1шт.

46

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

47

A18975

CLAMP - steering, Serial Range: tube-chassis

1шт.

48

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

49

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

Выбрано товаров: 56
