Запчасти Case W8B (152) - TRANSMISSION, TRANSMISSION HIGH GEAR CLUTCH, TRANSMISSION HIGH GEAR CLUTCH (03) - TRANSMISSION

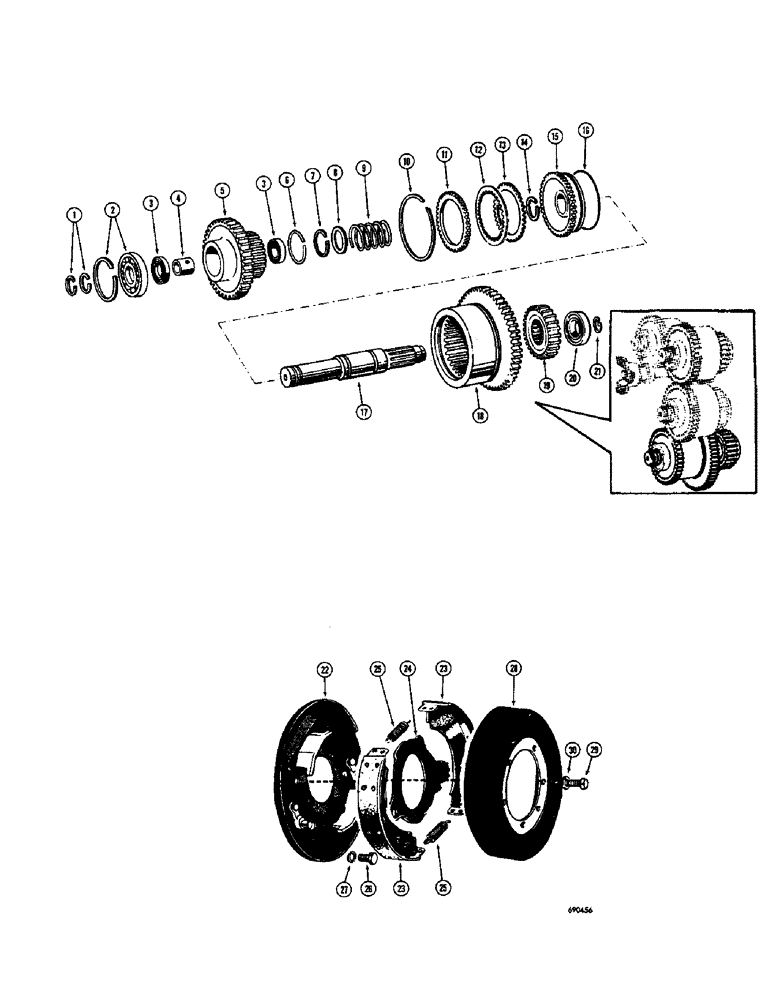

Схема запчастей Case W8B - (152) - TRANSMISSION, TRANSMISSION HIGH GEAR CLUTCH, TRANSMISSION HIGH GEAR CLUTCH (03) - TRANSMISSION

Артикул

Название

Примечание

Количество

L30332

KIT

TRANSMISSION ASSEMBLY - complete, Inlcudes: Ref. 1 - 21

1шт.

1

A17925

SPRING

RING - sealing, clutch shaft end

2шт.

2

A17929

BEARING ASSY

BEARING AND RING ASSEMBLY - front clutch shaft

1шт.

3

A17910

BALL BEARING,1.5743 mm ID x 2.6772 mm OD x 0.5906 mm

BEARING - clutch plate hub

2шт.

4

A17931

SPACER

- bearing, clutch plate hub

1шт.

5

A17930

HUB AND GEAR - clutch plate

1шт.

6

A17900

RING,#325, 3.450", Int, Spiral

- oil baffle, clutch plate hub

1шт.

7

A17914

RING

- retainer, return spring

1шт.

8

A17915

WASHER

- retainer, return spring

1шт.

9

A17917

VALVE SPRING

SPRING - return, piston

1шт.

10

A17918

RING

- snap, backing plate

1шт.

11

A17919

PLATE

- backing, clutch plate

1шт.

12

A17920

DISC

PLATE - clutch, inner tooth

6шт.

13

A17921

DISC

PLATE - clutch, outer tooth

5шт.

14

A17901

SEAL

RING - inner sealing, clutch piston

1шт.

15

A17907

PISTON

- clutch

1шт.

16

A17908

RING

- outer sealing, clutch piston

1шт.

17

A17902

SHAFT

- clutch, high gear

1шт.

18

A17909

DRUM

AND GEAR - clutch

1шт.

19

A17906

GEAR

- high, clutch

1шт.

20

A17905

ROLLER BEARING,1.5748" ID x 3.5433" OD x 1.4375"

BEARING - clutch shaft, rear

1шт.

21

A17903

SNAP RING,#156, Ext

Ring, Snap, , bearing #156, Ext

2шт.

A17980

BRAKE

ASSEMBLY - parking, Inlcudes: Ref. 22 - 25

1шт.

22

A18132

COVER PLATE

PLATE ASSEMBLY - backing, transmission parking brake

1шт.

23

A18133

BRAKE SHOE

SHOE ASSEMBLY - brake, transmission parking brake

2шт.

A18136

KIT

LINING KIT - brake (Includes 2 lining and rivets), transmission parking brake

1шт.

24

A18135

LEVER - shoe operating, transmission parking brake

1шт.

25

A18134

SPRING

- return, brake shoe, transmission parking brake

2шт.

26

13-916

BOLT,Hex, 9/16" - 12 x 1", Gr 5

HHCS - 9/16" - 12 NC x 1", transmission parking brake

4шт.

27

92-9

BEARING WASHER,9/16"

Transmission parking brake 9/16"

4шт.

28

A17982

DRUM

- brake, parking, transmission parking brake

1шт.

29

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Transmission parking brake Hex, 3/8"-24 x 3/4", G5, Full Thd

6шт.

30

92-6

LOCK WASHER,3/8"

transmission parking brake 3/8"

6шт.

Выбрано товаров: 33
