Запчасти Case W8B (142) - CONVERTER AND TRANS. HYDRAULICS, PRIOR TO TRANS. SN. 8791E PRIOR TO CONVERTER SN. 87207E & AFTER (03) - TRANSMISSION

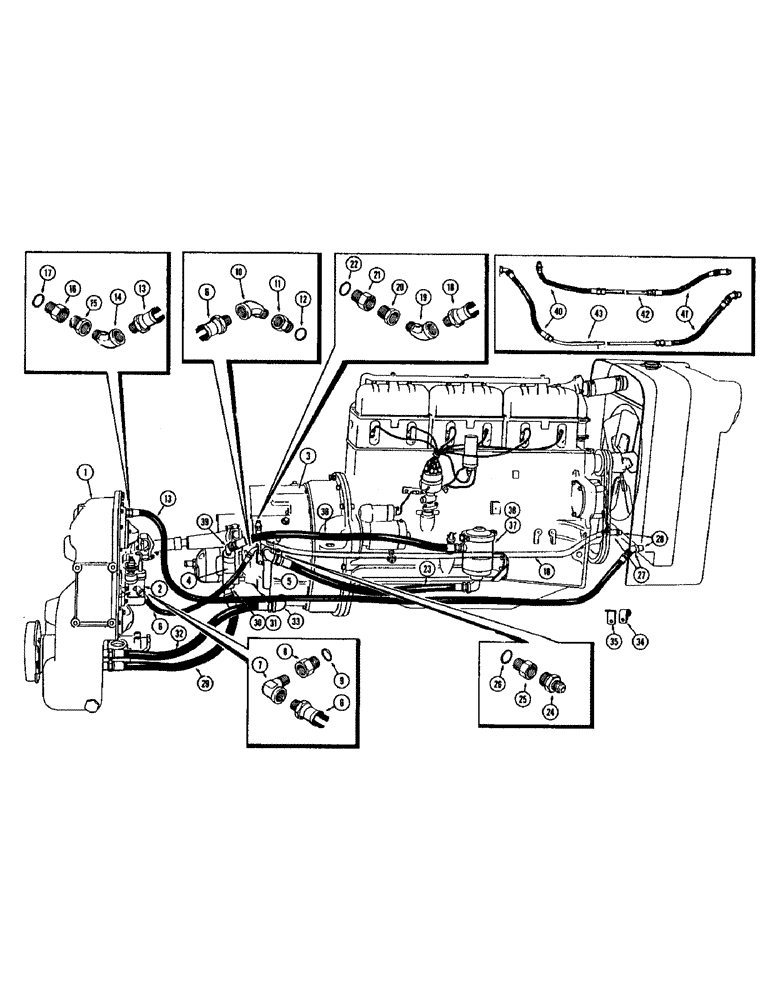

Схема запчастей Case W8B - (142) - CONVERTER AND TRANS. HYDRAULICS, PRIOR TO TRANS. SN. 8791E PRIOR TO CONVERTER SN. 87207E & AFTER (03) - TRANSMISSION

Артикул

Название

Примечание

Количество

1

A19071

TRANSMISSION ASSEMBLY - complete (Prior to serial number 87961E) Order L30332, Inlcudes: Ref. 2

1шт.

2

L30040

VALVE - transmission control (Prior to serial number 87961E) Parts list Figure 156

1шт.

3

A17153

TORQUE CONVERTER - engine (Prior to serial number 87207E) Order L30331 (Parts list Figures 158 thru 164), Inlcudes: Ref. 4 and 5

1шт.

4

L30054

PUMP

- converter charging (Replaces A17373) (Parts list Figure 162)

1шт.

5

A18005

VALVE

- pressure regulating (Prior to serial number 6744C) Parts list Figure 164

1шт.

5

L30050

VALVE

- pressure regulating (Converter serial number 6744C to 87207E) Parts list Figure 164

1шт.

6

A17314

HOSE

- converter to transmission control valve

1шт.

7

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 90 degrees (3/8" NPT) Used with A17314

1шт.

8

218-5093

ADAPTER,#8 MALE ORB (ORING) TO # 6 FEMALE NPT (PIPE)

ADAPTER - 3/4" "O" ring x 3/8" NPT (Used with A17314 after serial number 87961E, Inlcudes: Ref. 9

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degrees (3/8" NPT) Used with A17314

1шт.

11

218-5093

ADAPTER,#8 MALE ORB (ORING) TO # 6 FEMALE NPT (PIPE)

ADAPTER - 3/4" "O" ring x 3/8" NPT (Used with A17314 after serial number 87207E), Inlcudes: Ref. 12

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

A56431

HOSE ASSY.

HOSE - oil cooler (95-1/2" long)

1шт.

14

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- street, 45 degrees (1/2" NPT)

1шт.

15

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer (3/4" NPT x 1/2" NPT)

1шт.

16

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - 1-1/16" "O" ring x 3/4" NPT (Use with A56431 after transmission serial number 87961E)

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

A56430

HOSE ASSY.

HOSE - oil cooler (74" long)

1шт.

19

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- street, 45 degrees (1/2" NPT)

1шт.

20

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer (3/4" NPT x 1/2" NPT)

1шт.

21

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - 1-1/16" "O" ring x 3/4" NPT (Use with A56430 after converter serial number 87207E), Inlcudes: Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

23

L15036

HOSE ASSY.

HOSE - filter to converter valve (35-5/16" long)

1шт.

24

A19599

ADAPTER

FITTING - 3/4" NPT

1шт.

25

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - 1-1/4" "O" ring x 3/4" NPT, Inlcudes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

27

221-1384

ELBOW,90º, 3/4" x 1/2" NPT

- reducing (3/4" NPT x 1/2" NPT)

2шт.

28

221-1109

PIPE,Nipple, 1/8" NPT x 2"

NIPPLE - pipe (1/2" NPT x 2")

2шт.

29

A17315

HOSE

- pump to transmission reservoir

1шт.

30

221-1370

ELBOW

- hose to pump, 45 degrees (1" NPT)

1шт.

31

221-1240

PIPE,Nipple, 1" NPT x 2 1/2"

NIPPLE - pipe (1" NPT x 2-1/2")

1шт.

32

A17316

HOSE

- drain, Serial Range: converter-transmission

1шт.

33

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- 90 degrees, hose to converter (1" NPT x 90 degrees)

1шт.

34

A17323

CLIP - hose

7шт.

35

A17325

BRACKET - hose clip

1шт.

36

L15035

HOSE ASSY.

HOSE - pump to filter (41" long)

1шт.

37

D22660

AIR INTAKE TUBE

FILTER - converter oil (Parts list Figure 146)

1шт.

38

D31210

FILTER

- converter oil (Parts list Figure 146) Order D22660 filter for service

1шт.

39

A19599

ADAPTER

ELBOW - pump outlet

1шт.

40

L10709

HOSE ASSY.

HOSE - oil, transmission and converter cooler tubes

2шт.

41

A12495

HOSE

- oil cooler tube, L.H. and, Serial Range: R.H.-radiator

2шт.

42

A17484

TUBE - oil cooler, R.H.

1шт.

43

A17485

TUBE - oil cooler, L.H.

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

Выбрано товаров: 45
