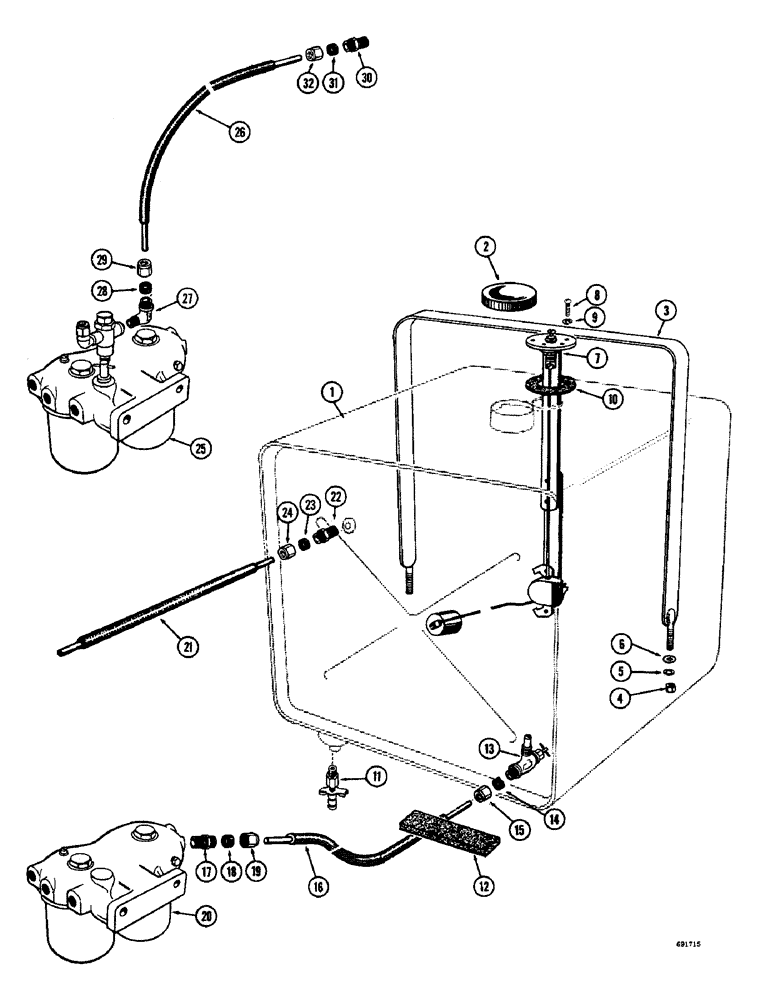

Запчасти Case W8B (023A) - FUEL TANK, DIESEL ENGINE (02) - FUEL SYSTEM

1

A18867

FUEL TANK

TANK - fuel

1шт.

2

A18870

FILLER CAP

CAP - fuel tank

1шт.

3

A18872

STRAP - mounting, tank

2шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

5

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock (3/8")

4шт.

6

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

7

A18869

SENDER UNIT

SENDING UNIT - fuel gauge

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine, round head (#10 - 32 NC x 7/16") Zinc plated

5шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

10

A61161

GASKET

- sending unit

1шт.

11

217-102

PLUG, DRAIN

VALVE - drain, fuel tank

1шт.

12

A7390

PAD - tank mounting

4шт.

A27955

VALVE

ASSEMBLY - fuel shutoff, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE - needle, fuel tank

1шт.

14

222-104

SLEEVE,3/8" Tube

- flex tube fitting

1шт.

15

222-114

NUT,5/8"-24

NUT - flex tube fitting

1шт.

16

A18877

HOSE ASSY.

HOSE -, Serial Range: tank-filter

1шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSEMBLY - flex tube, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube

1шт.

18

222-104

SLEEVE,3/8" Tube

- flex tube fitting

1шт.

19

222-114

NUT,5/8"-24

NUT - flex tube fitting

1шт.

20

A40435

FILTER

- engine fuel (Engine serial number 2095453 thru 2205482) Parts list page 20

1шт.

21

L10041

HOSE ASSY.

HOSE - return, injector leak off to tank (Engine serial number 2095453 thru 2205482)

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - flex tube, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube

1шт.

23

222-102

SLEEVE,1/4" Tube

1шт.

24

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting

1шт.

25

A23690

SHAFT LOCK

FILTER - engine fuel (Prior to engine serial number 2095453) Parts list page 20

1шт.

26

A17220

HOSE

- return, filter to tank (Prior to engine serial number 2095453)

1шт.

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 90 degrees, flex tube, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

ELBOW - flex tube fitting

1шт.

28

222-103

SLEEVE,5/16" Tube

- flex tube fitting 5/16" Tube

1шт.

29

222-113

TUBE NUT,9/16"-24

NUT - flex tube fitting

1шт.

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - flex tube, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube

1шт.

31

222-103

SLEEVE,5/16" Tube

- flex tube fitting 5/16" Tube

1шт.

32

222-113

TUBE NUT,9/16"-24

NUT - flex tube fitting

1шт.
