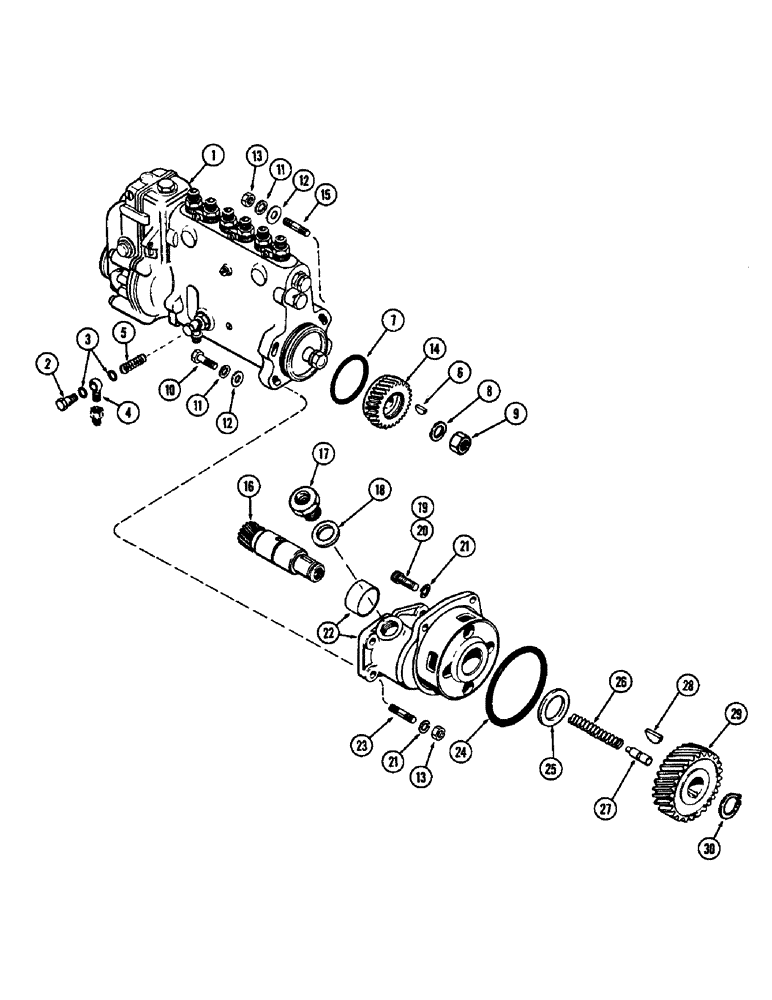

Запчасти Case W8B (021A) - FUEL INJECTION PUMP AND DRIVE, (401) DIESEL ENGINE (02) - FUEL SYSTEM

1

A24533

FUEL INJECTION PUMP

PUMP ASSY. - fuel injection (2000 R.P.M.), Includes: Ref. 2 - 9

1шт.

2

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

3

A22381

WASHER

- fitting (13/32 x 17/32 x 3/64" copper)

2шт.

4

A25191

FITTING

- oil, Serial Range: tube-pump

1шт.

5

A25190

SPRING

- oil tube fitting

1шт.

6

A20933

KEY

- gear to pump shaft

1шт.

7

A42056

O-RING,2.598" ID x 2.834" OD x 0.118"

"O" RING - pump to housing (2-1/4 x 2-9/32 x 1/8")

1шт.

8

A25188

WASHER

LOCKWASHER - pump shaft

1шт.

9

A25189

NUT - pump shaft

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex. hd.

2шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

12

A57470

WASHER

- pump stud & bolt (13/32 x 11/16" x 16 ga.)

4шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 5/16" N.F. hex.

2шт.

14

A21139

GEAR

- fuel pump drive shaft

1шт.

15

A20664

STUD - pump mounting (3/8" N.F. x 1-7/8")

2шт.

16

A20622

GEAR

PINION & SHAFT - fuel pump drive

1шт.

17

A18550

PLUG

- timing window

1шт.

18

A58613

SEALING WASHER

GASKET - plug

1шт.

19

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - cap, 3/8" x 1-1/4" N.C. socket hd.

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

A21136

HOUSING - pump drive (Incl. bushing)

1шт.

23

A26554

STUD - drive housing (3/8" N.C./N.F. x 1-9/16"

2шт.

24

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - drive housing to block (4-1/2 x 4-3/4 x 1/8")

1шт.

25

A27864

WASHER

- thrust, drive shaft (1-3/8 x 2-3/32 x 1/8")

1шт.

26

CASA27853

SPRING

- thrust plunger, drive shaft

1шт.

27

A27852

PLUNGER

- thrust, drive

1шт.

28

126-66

WOODRUFF KEY

KEY - drive gear (#141 Woodruff)

1шт.

29

A20899

GEAR WHEEL

GEAR - pump drive

1шт.

30

A27576

SNAP RING,#98, Ext

Ring, Snap, , drive gear #98, Ext

1шт.
